Product name:
|
Internet network HD video camera
|
|
Product model:
|
IPCM0095
|
|
Technical parameter
|
|
Processor:
|
GM8135S+SC2135
|
|
Platform:
|
s.360eye.cc
|
|
Operating system:
|
Embedded LINUX operating system
|
|
Image sensor:
|
1/3 HD CMOS 2 megapixel CMOS sensor
|
|
Video format:
|
FHD(1920*1080P),D1(768*576)
|
|
Video coding:
|
H.264
|
|
Video frame rate:
|
Max 15 frame
|
|
Video playback mode:
|
Mobile client
|
|
Audio input and output:
|
Input:built-in microphone 38DB; output:built-in 8Ω2W speaker
|
|
Infrared night vision effect:
|
The LED lamp night vision 10 meters(IR-CUT automatic switching)
|
|
Minimum illumination:
|
0.1Lux/F1.2
|
|
PTZ control:
|
Horizontal rotation 340 degrees vertical 70
|
|
Local storage：
|
Support MicroSD inserted 128GB card, support 24 hours of video or video alarm
|
|
Support multiple protocols:
|
TCP/UDP、IP、DHCP、NTP
|
|
Wifi:
|
Support IEEE 802.11b/g/n
|
|
Image rotation:
|
Mirror / upside down
|
|
Video control:
|
Support
|
|
Motion detection:
|
Support
|
|
Firmware upgrade:
|
Remote upgrade can be through the network
|
|
Supply voltage:
|
DC 5V1.6A
|
|
Working temperature:
|
0 degrees C ~55 C
|
|
Working environment:
|
Indoor
|
|

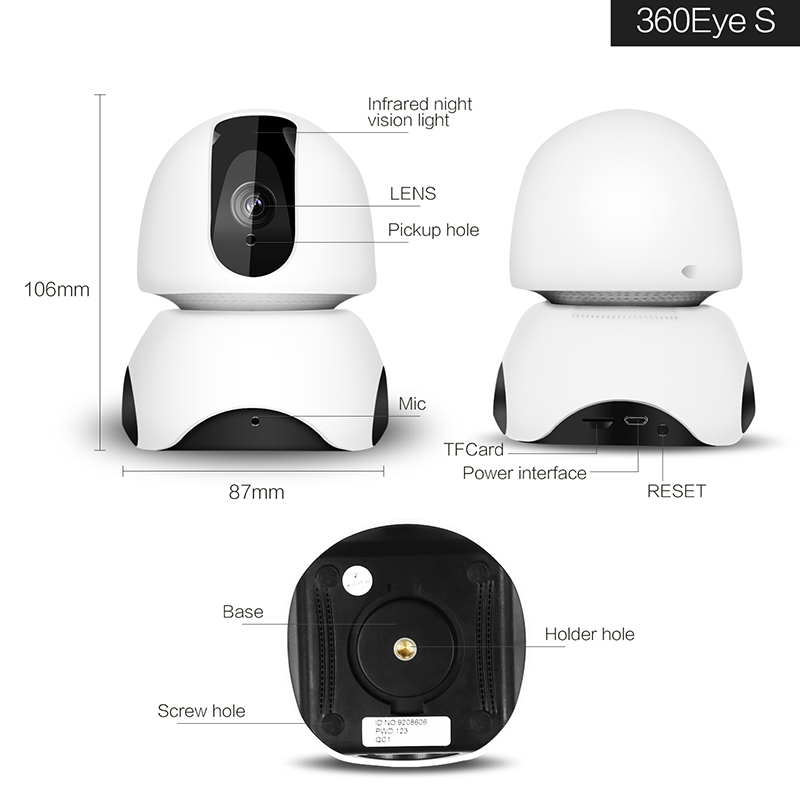

Product size:
|
8.7*8.7*10.8cm
|
|
Packing size:
|
9.0*9.0*16.8cm
|
|
Net weight：
|
230g
|
|
Gross weight/pc：
|
390g
|
|
Carton size：
|
48*35.5*49.5cm（50pcs/Carton）
|
|
Gross weight/carton：
|
20.28Kg
|
|

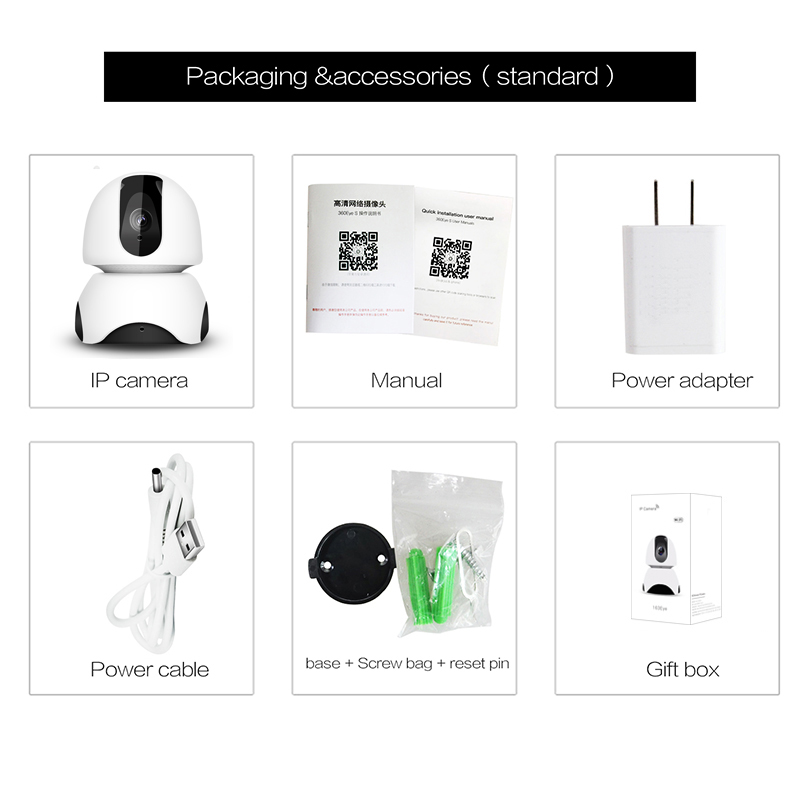

Packaging and accessories：
|
1 Color box
|
|
2 Inner support
|
|
3 Power supply
|
|
4 Screw package
|
|
5 Instructions
|
|
6 Wall fixed tray
|
