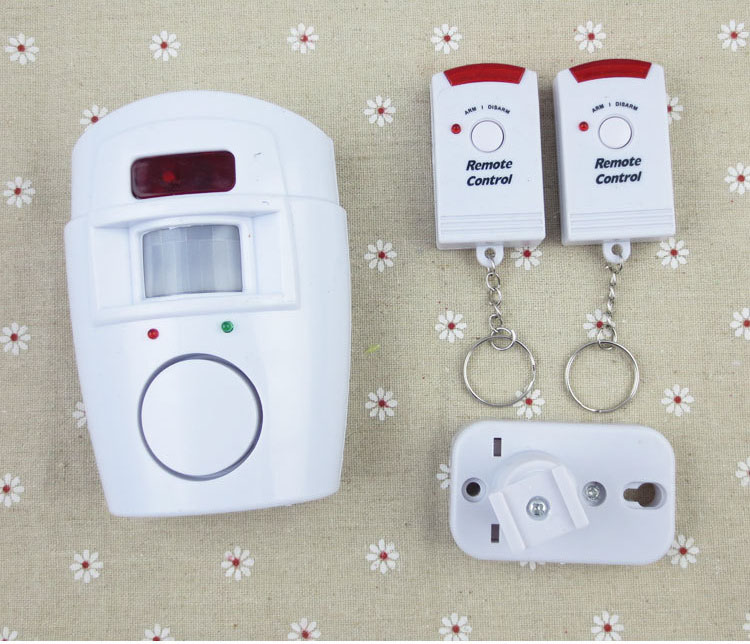

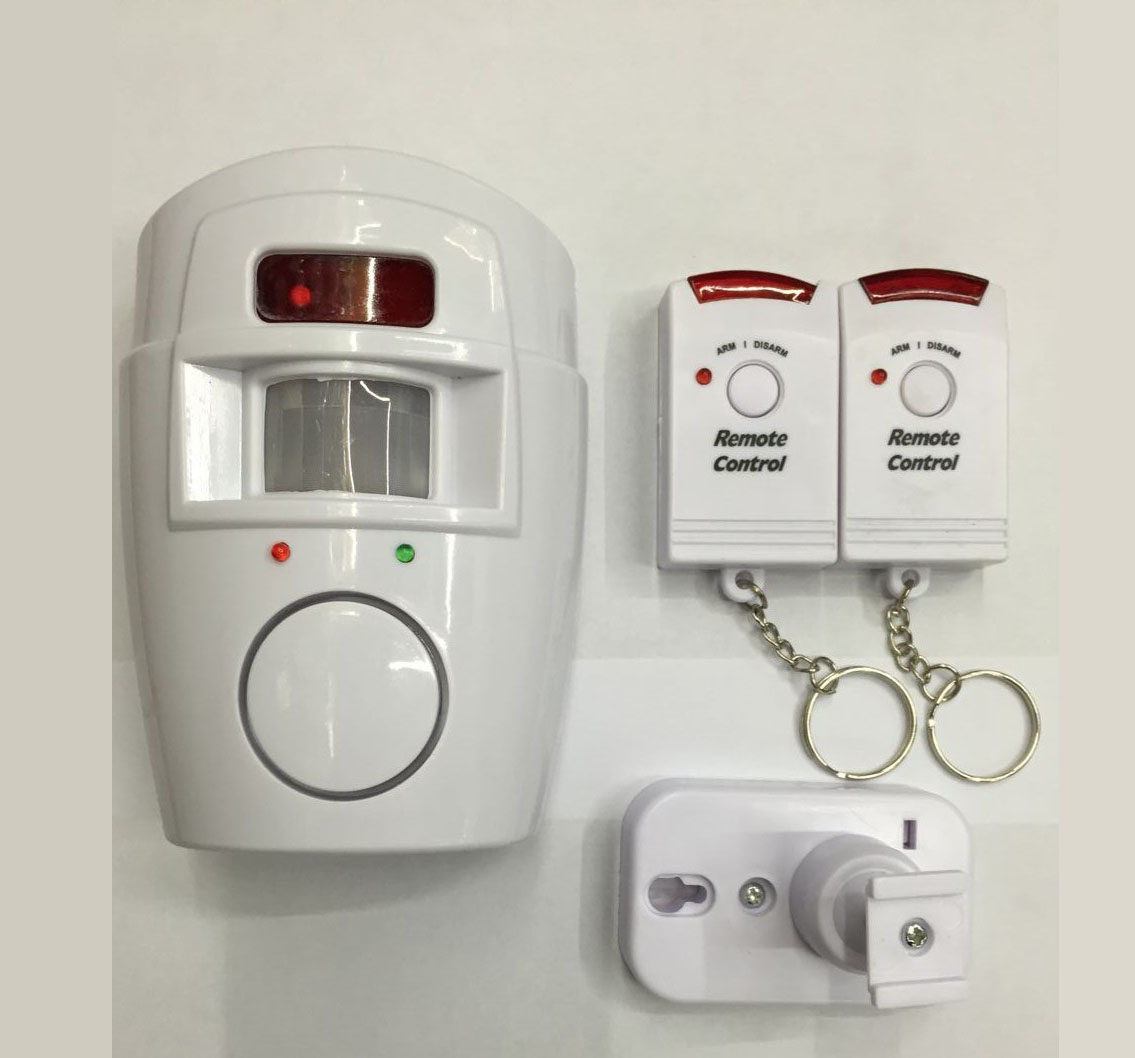

Name: Double remote control infrared alarm
Current: 100 mA
Voltage: DC 6V (4 AA batteries)
Detection distance: 2-6 meters
Remote distance: 30 meters
Alarm sound level: 105 dB
Remote control voltage: 4.5V

Uses: home security

Product parameters:
1. Alarm sound: 105 db (sound overclocked, most people unbearable)
2. Remote control distance: farthest 3-4 meters (not partition wall remote control, the models are common for all remote control)
3. Detection range: farthest 3-5 meters (room temperature below 30 degrees), can not partition wall detection, the summer temperature is higher than 30 degrees when the detection range will be shortened, this is not a quality problem.
4. Detection range: angle of 110 degrees (depending on the environment, the detection range and angle may be slightly different)
5. Operating voltage: 4 5 batteries (the machine does not contain, customers need to be equipped with), you can also use the output voltage of 6V power supply (the machine does not contain, customers need to be equipped with)

Instructions
1. Install the battery, use the remote control to open the alarm host, the green light for about 20 seconds, the 20 seconds is the boot delay time, you can leave the infrared alarm within 20 seconds detection area.
2.20 seconds after the end of the boot delay time, the green light goes out, the infrared alarm into the alert state.
3. If at this time there are personnel to enter the infrared alarm detection area, the red light on the left will start flashing 5 seconds, the 5-second delay is to facilitate the timely closure of the owner can alarm, so as not to issue unnecessary alarm.
4.5 seconds later, if the host does not receive the signal to close the alarm, even if the uninvited guest has left the detection range, the alarm host, will be issued 30 seconds long harsh sound of the alarm, the alarm volume is 105 dB. 5 seconds after the end of the alarm sound, if another staff within the detection range, it will once again alarm, cycle.
5. In the infrared alarm sound alarm, you can use the remote control to close the alarm switch, the end of the alarm.

installation method:
1. The universal seat is fixed at about 2 meters from the ground.

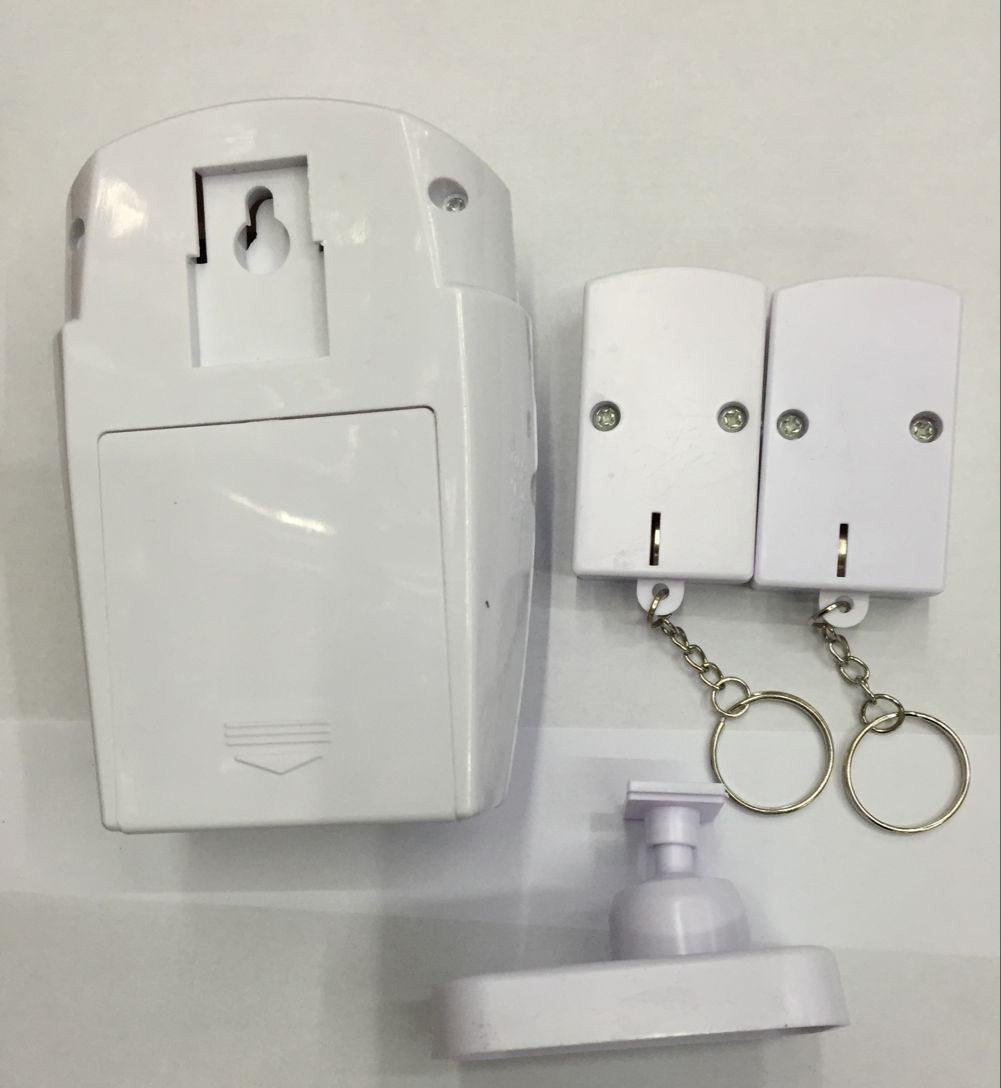

2. Open the battery cover, according to the battery inside the logo will be 4 5 batteries into the.
3. The infrared remote alarm fixed in the universal seat, turn the infrared alarm, so that it meets the installation requirements and detection needs can be.

Precautions:
 1, the probe should be avoided directly to the outside, so as to avoid false movement caused by idlers
2, the probe should be away from cold and heat sources, such as air conditioning outlet, heating, air conditioners and so on
3, the installation should be used to avoid the sun, the car light direct probe
4, installed in the corner or wall, the proposed installation height from the ground 2 to 3 meters position, the best results
5, the boot light when the boot, the alarm sound becomes smaller and infrared alarm false alarm rate is high, the battery voltage is generally insufficient, this time should replace the battery.
