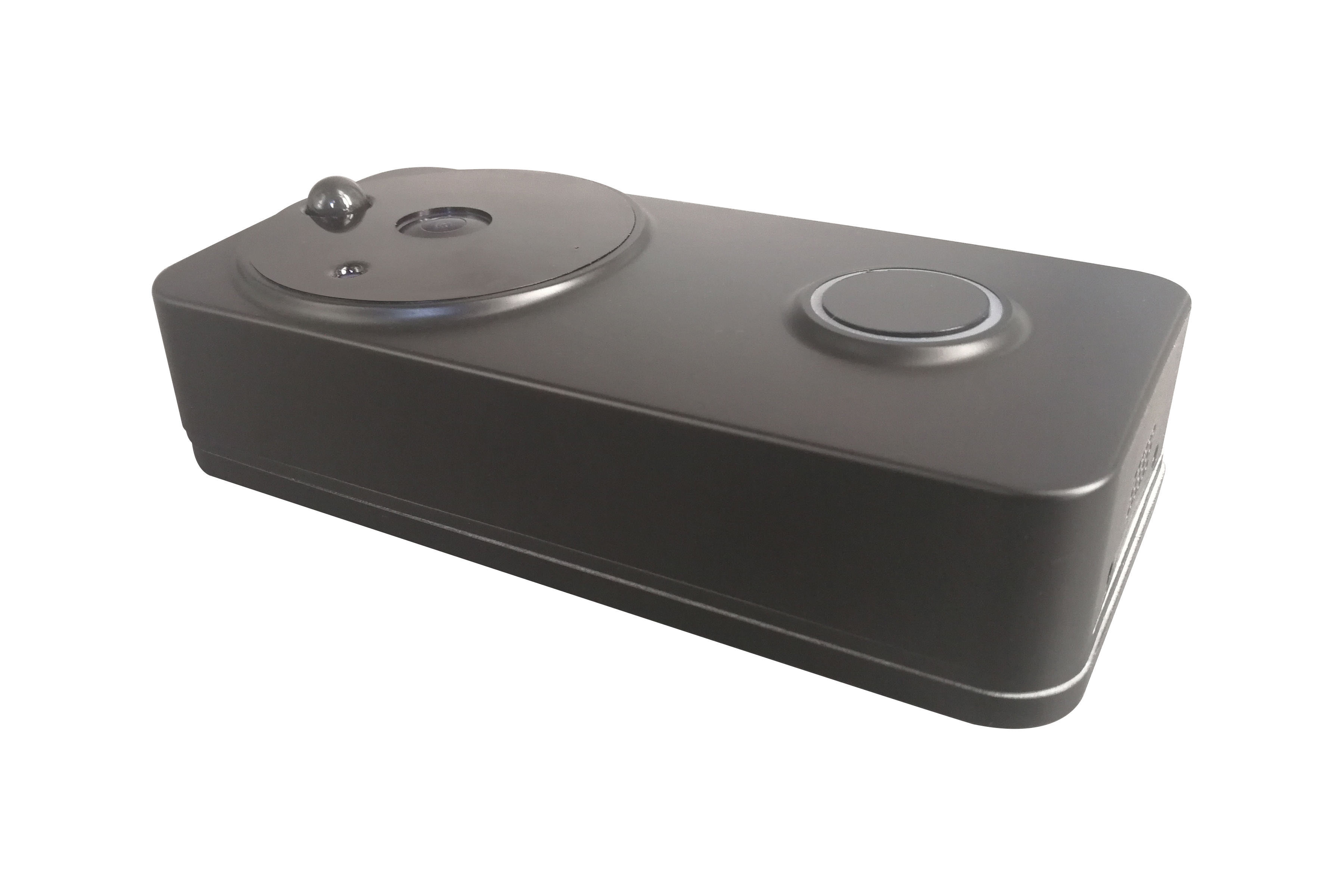

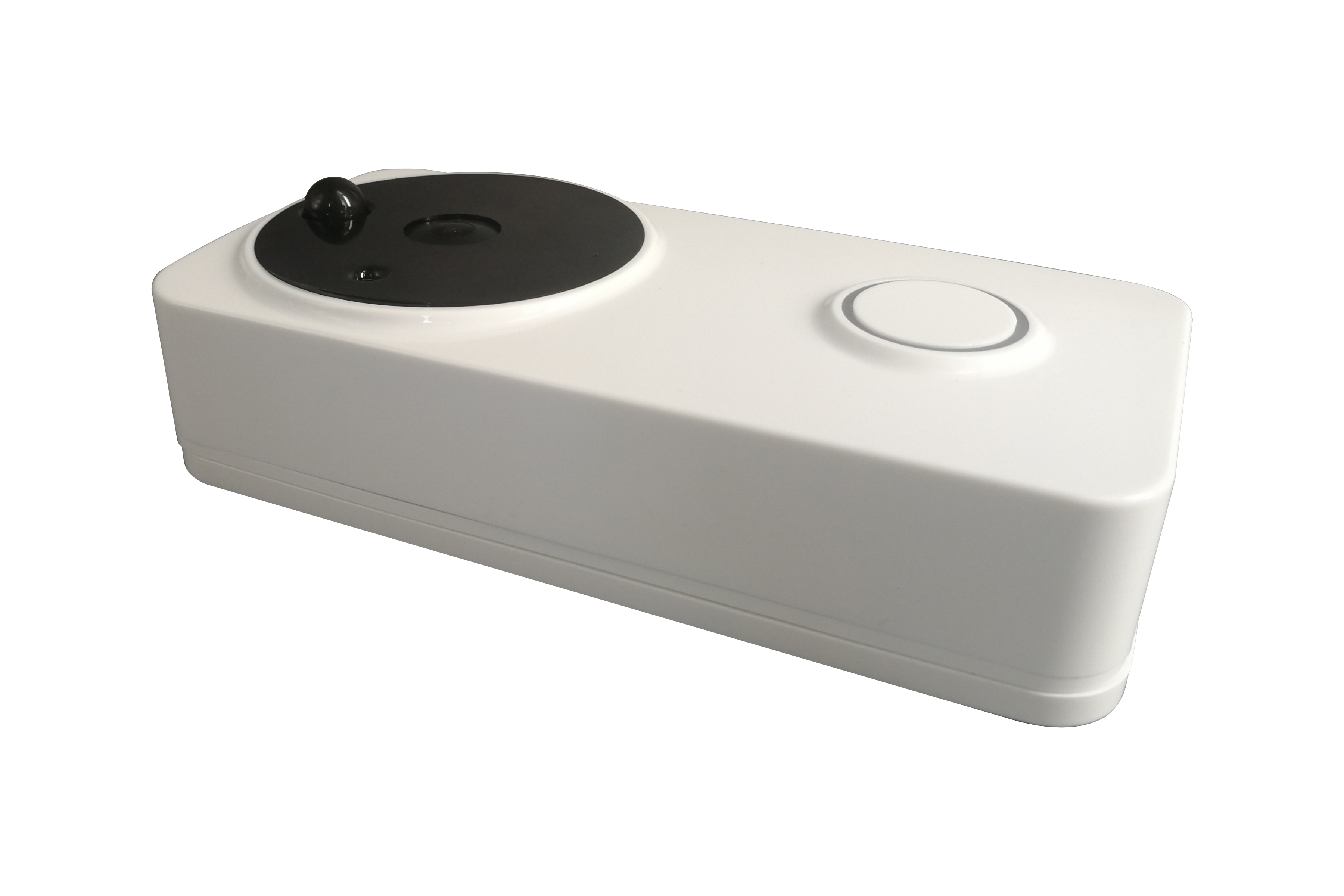

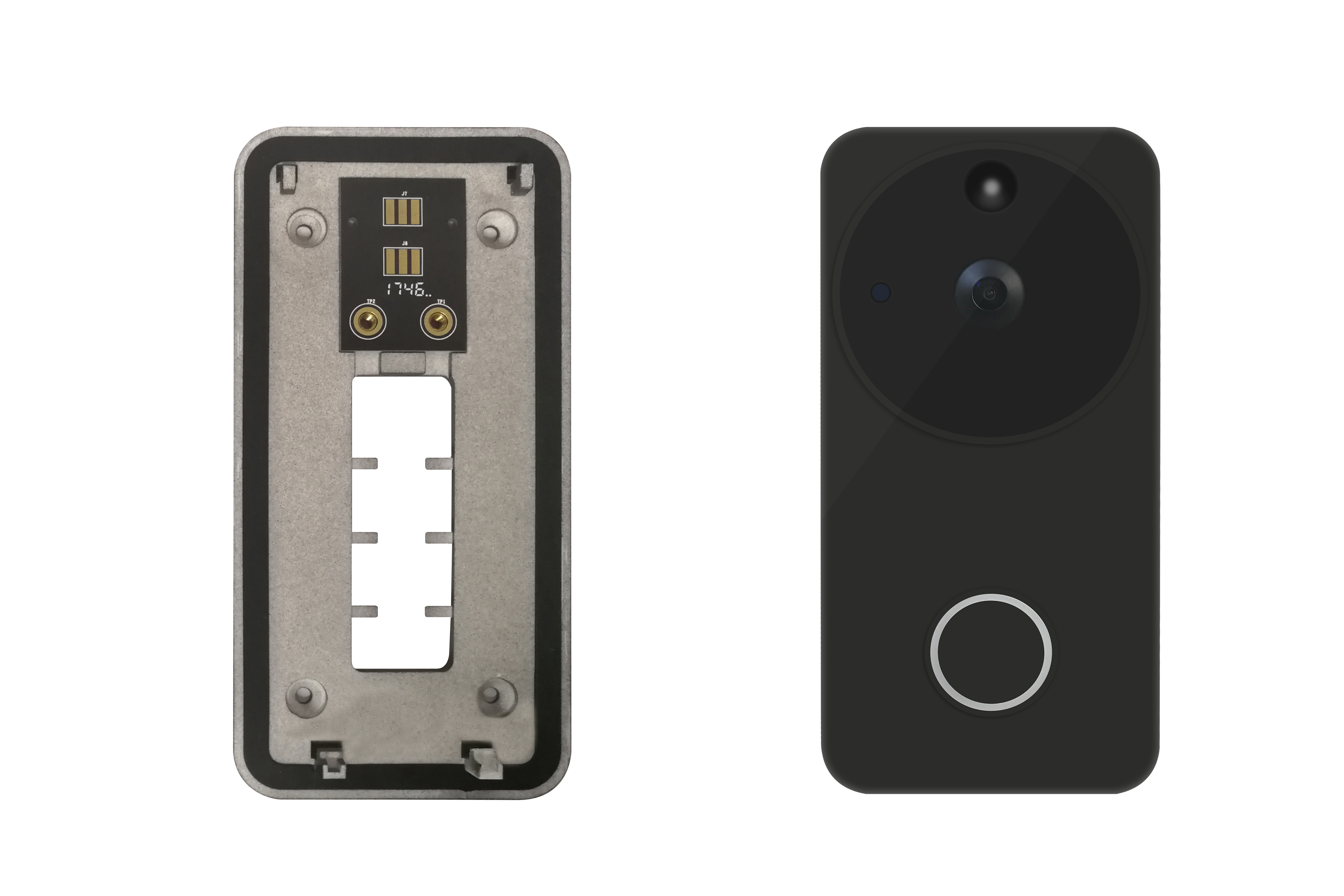

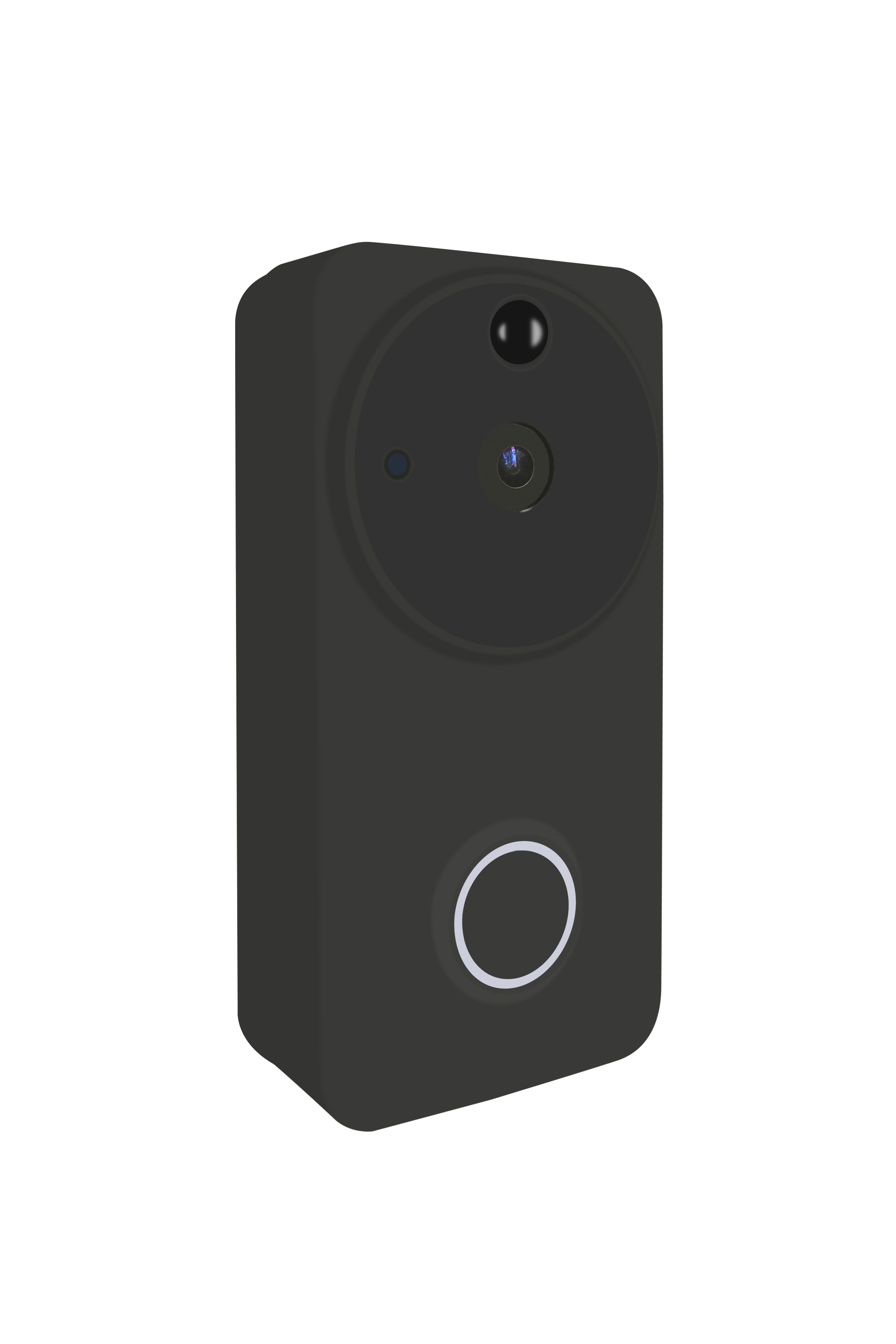

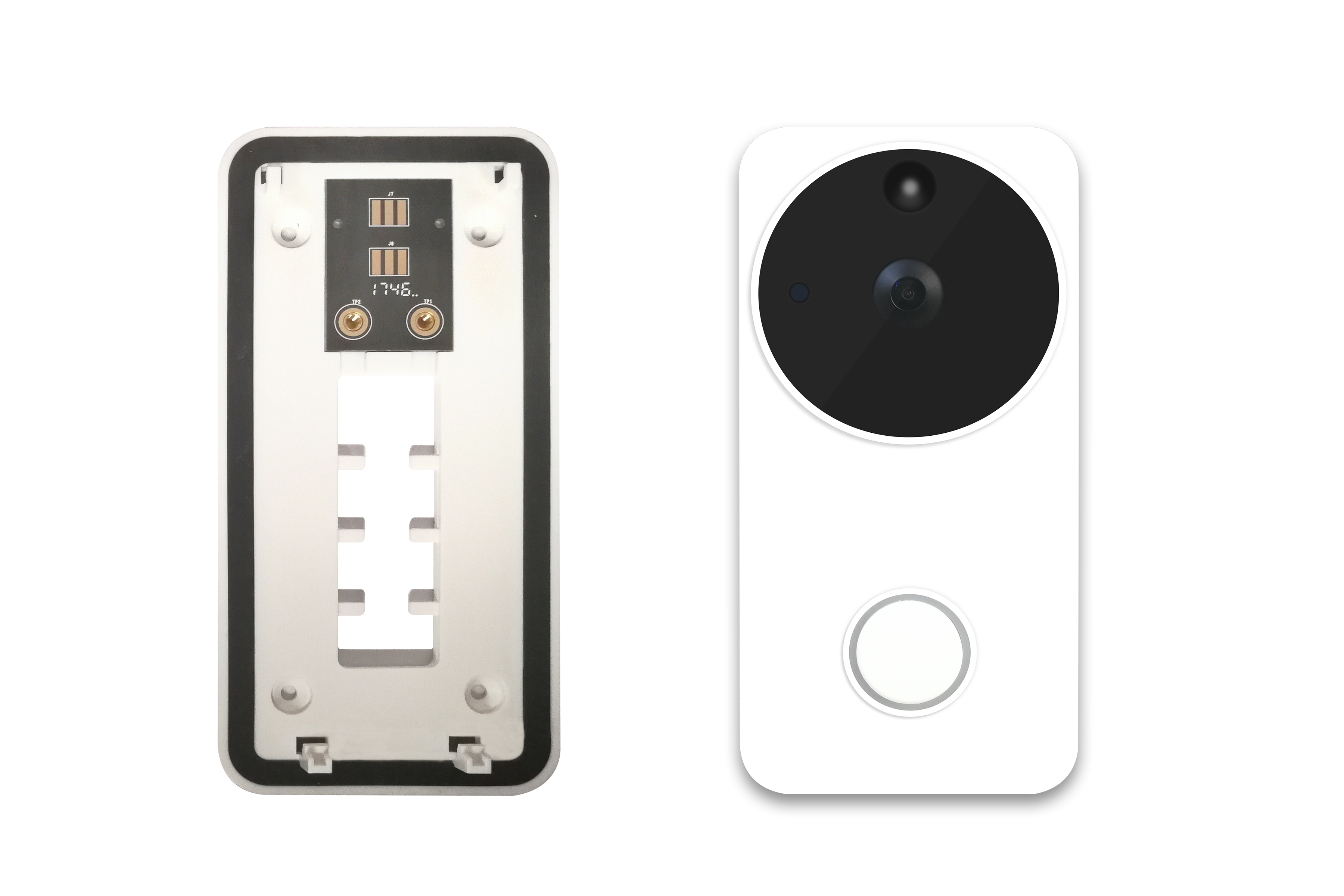

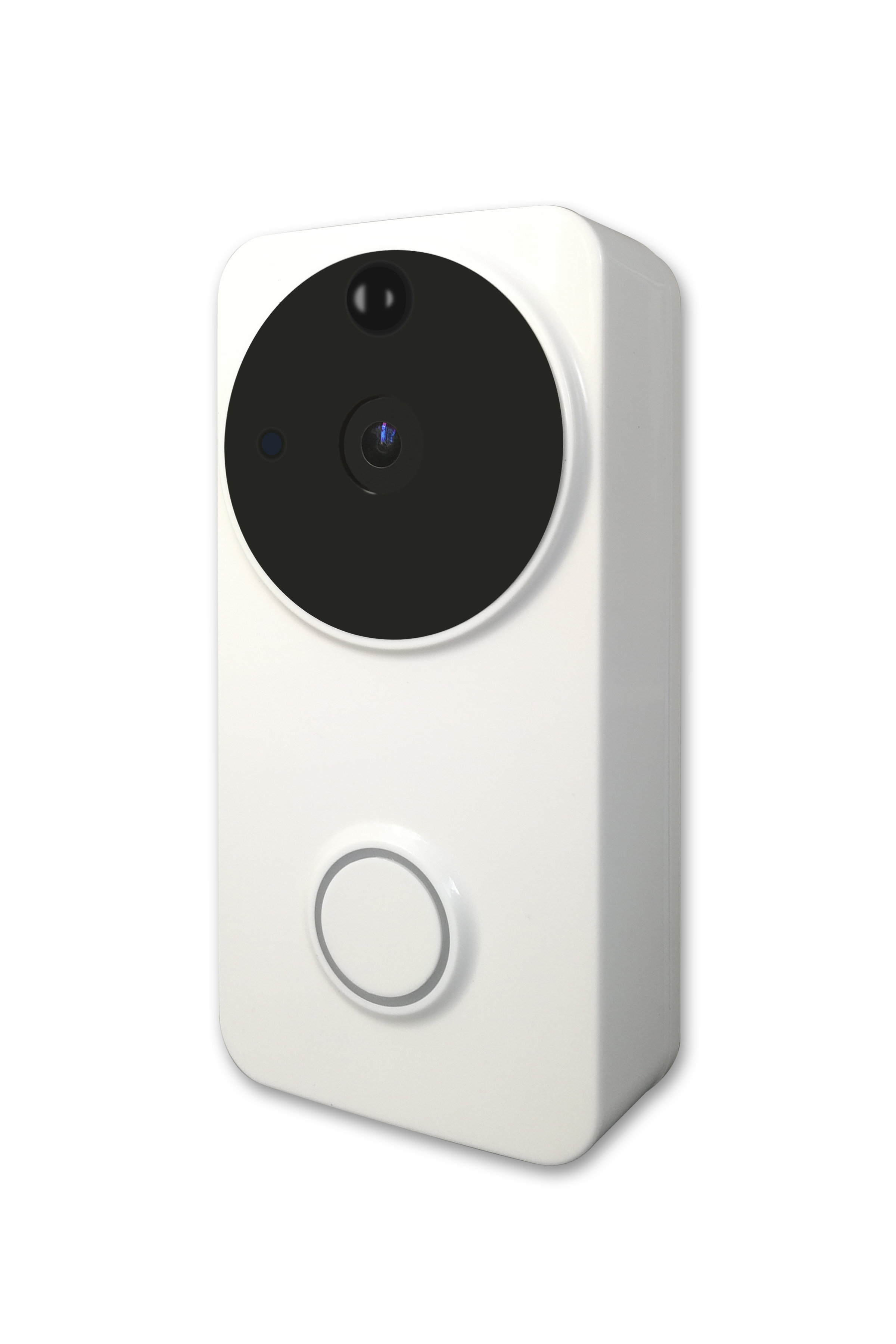

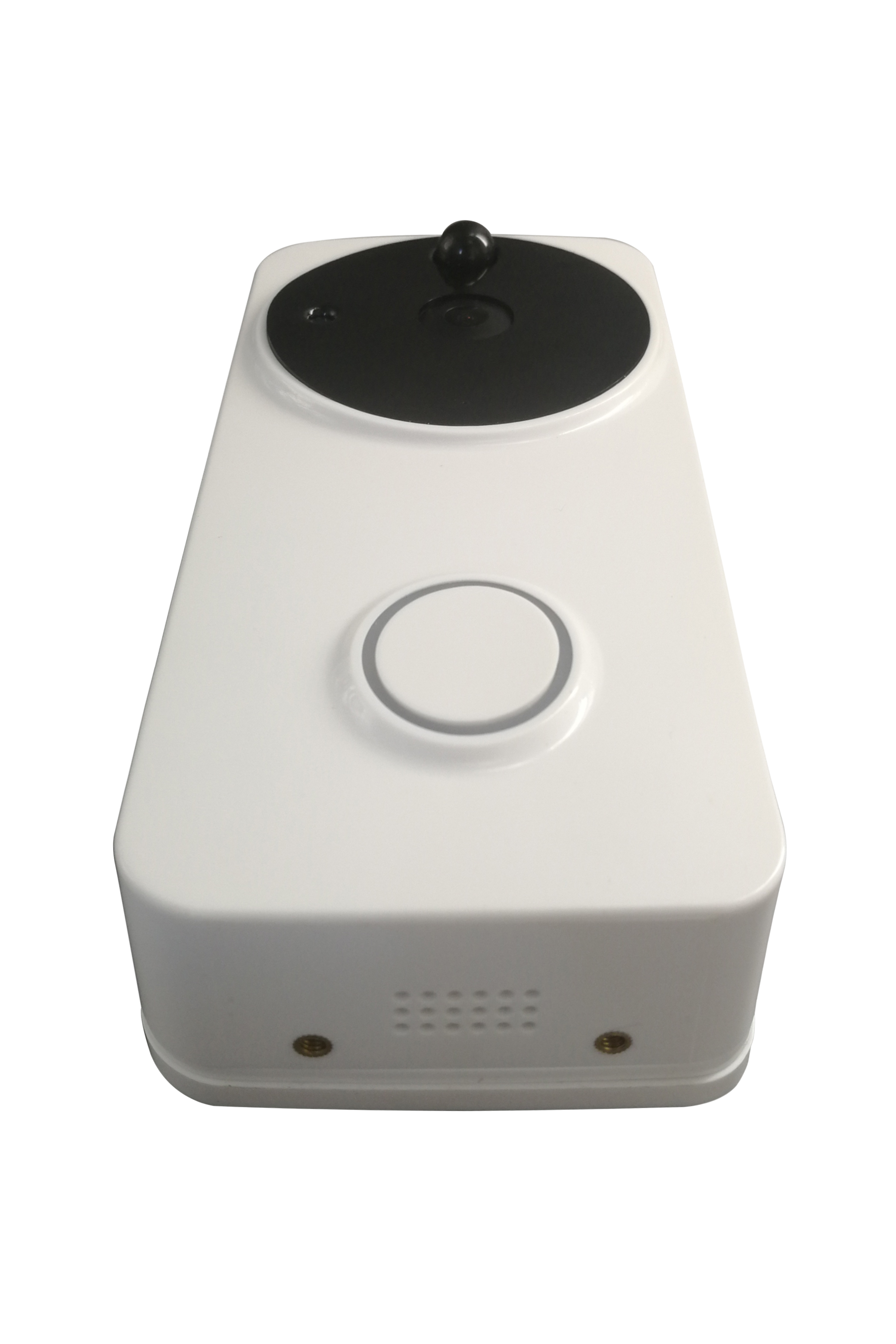

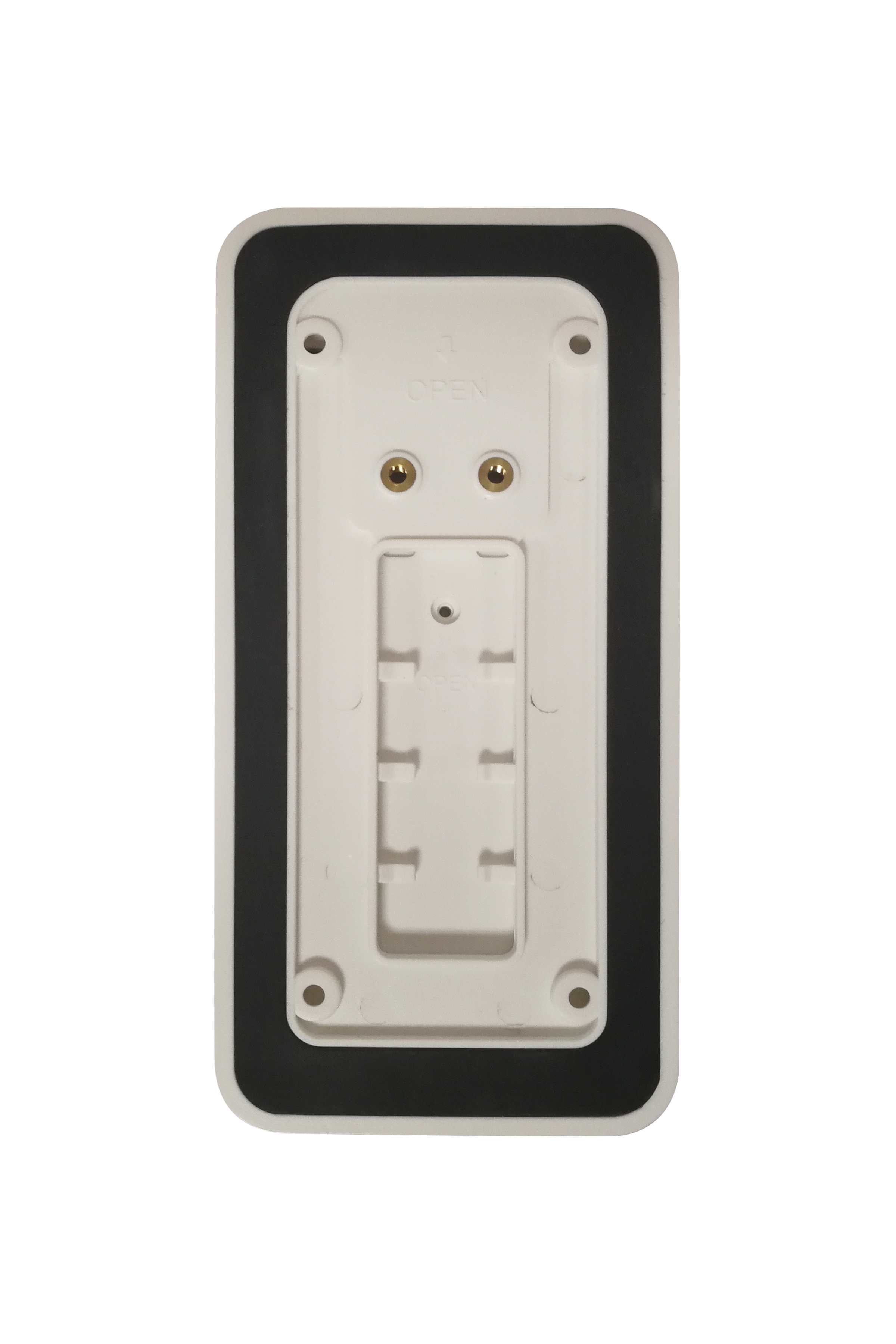

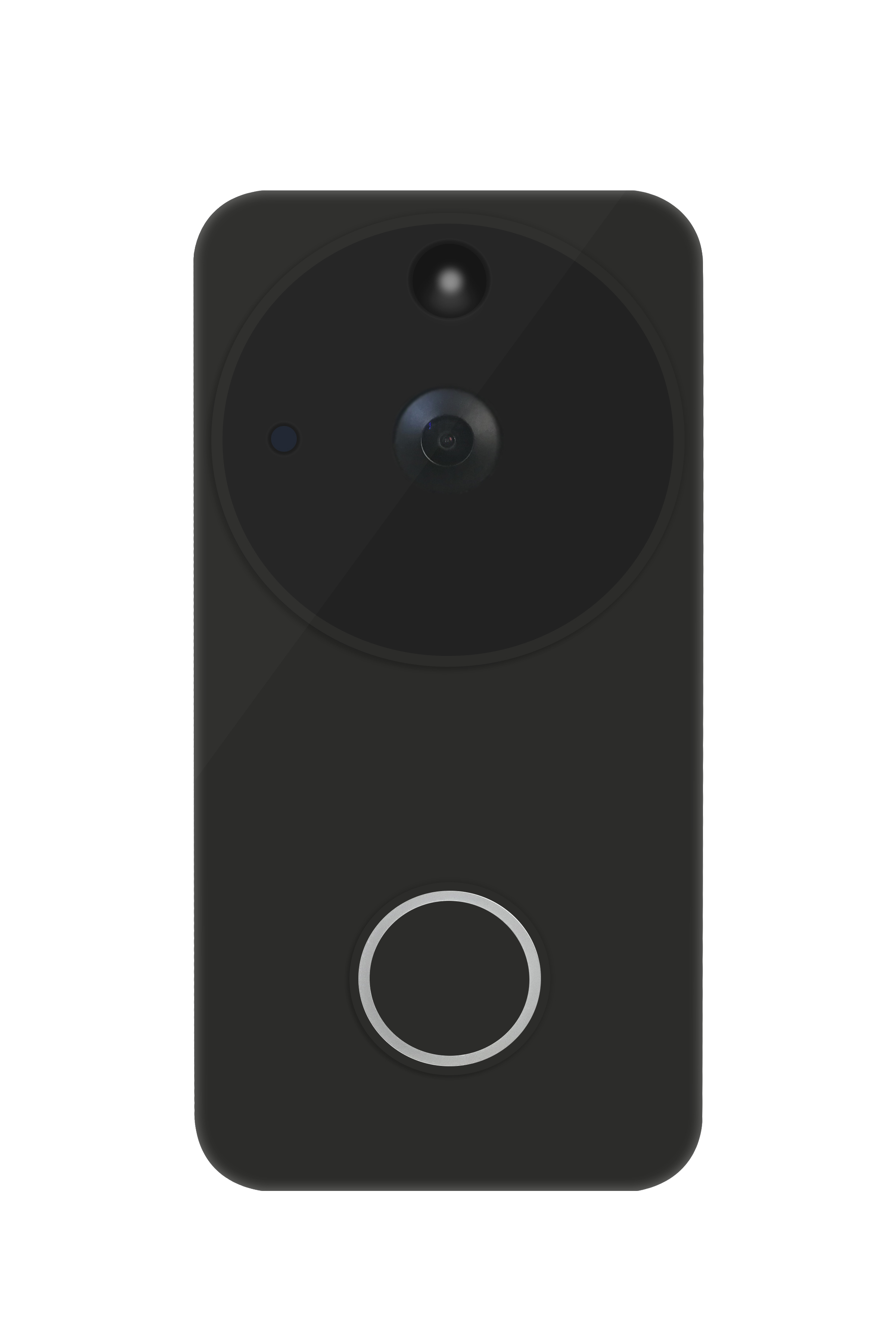

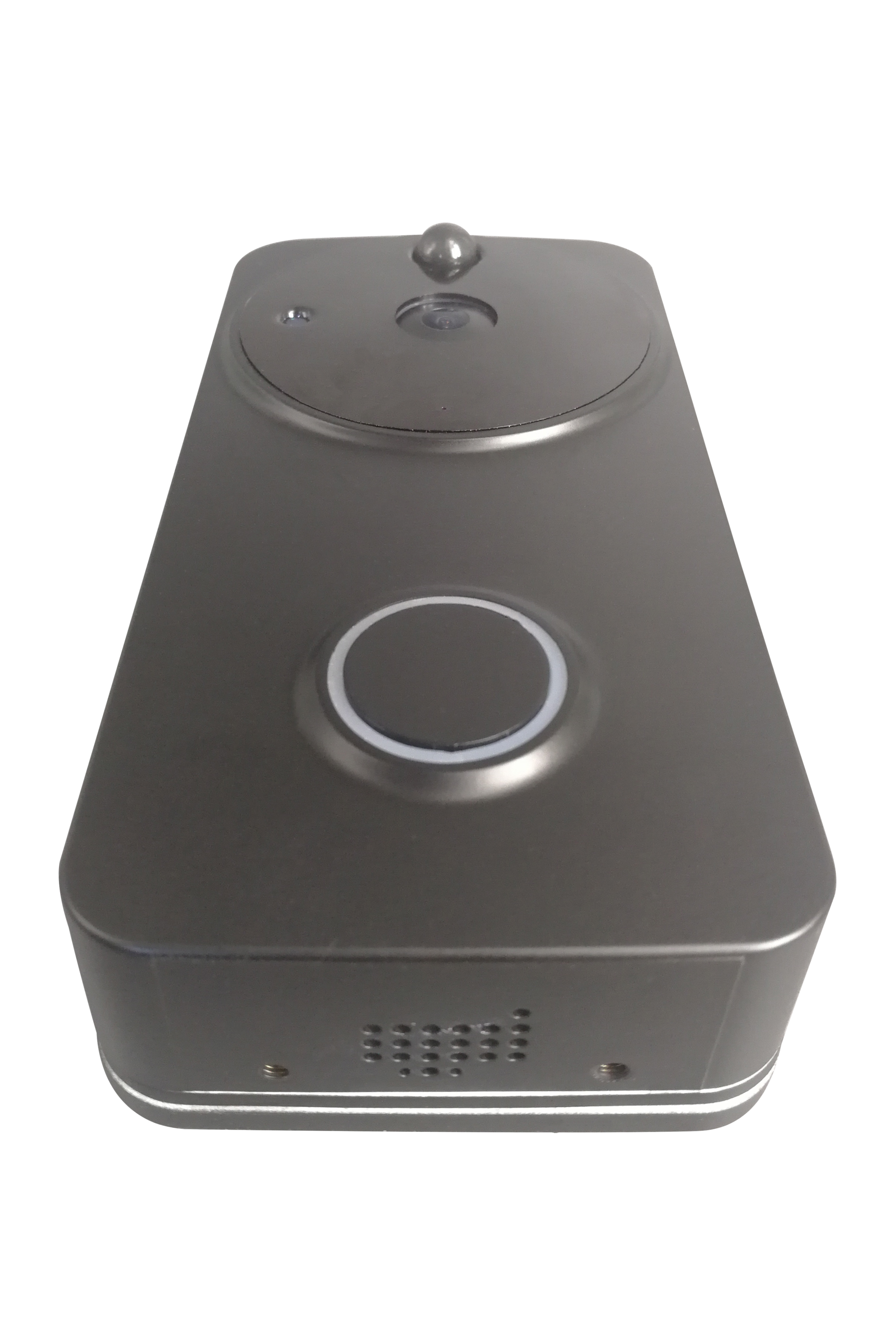

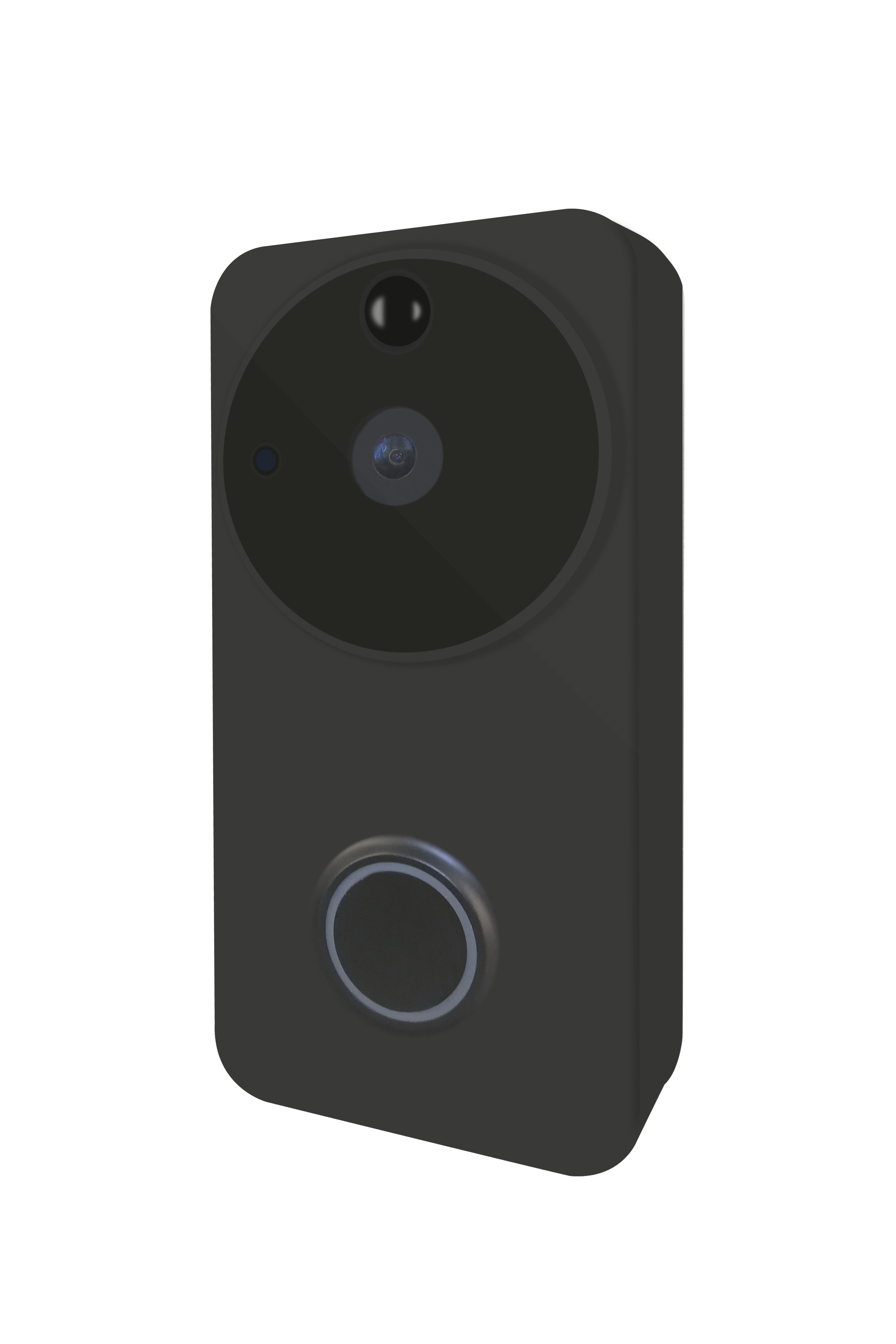

Video intercom wireless home alarm phone remote intelligent doorbell

  • Model:SMHA0008
  • Description

This product does not carry helium, you can contact if necessary

Product color: black and silver

Plastic Material (External): Housing PC Plastic
Camera Lens: PC Plastic
Surface Treatment (Plastic and Metal Parts) Housing: Glass
Camera Lens: Polished
1. General Specifications Rated Input Voltage AC 14-24V
Battery: Built-in rechargeable battery (18650)
Power supply: 4.3V
Power Consumption: Work: 150mA Standby: 150uA
Working temperature: -20 ~ 50 °C, humidity <95%
Humidity and humidity: up to 80%
Storage temperature: -20 ~ 70 °C, humidity <95%

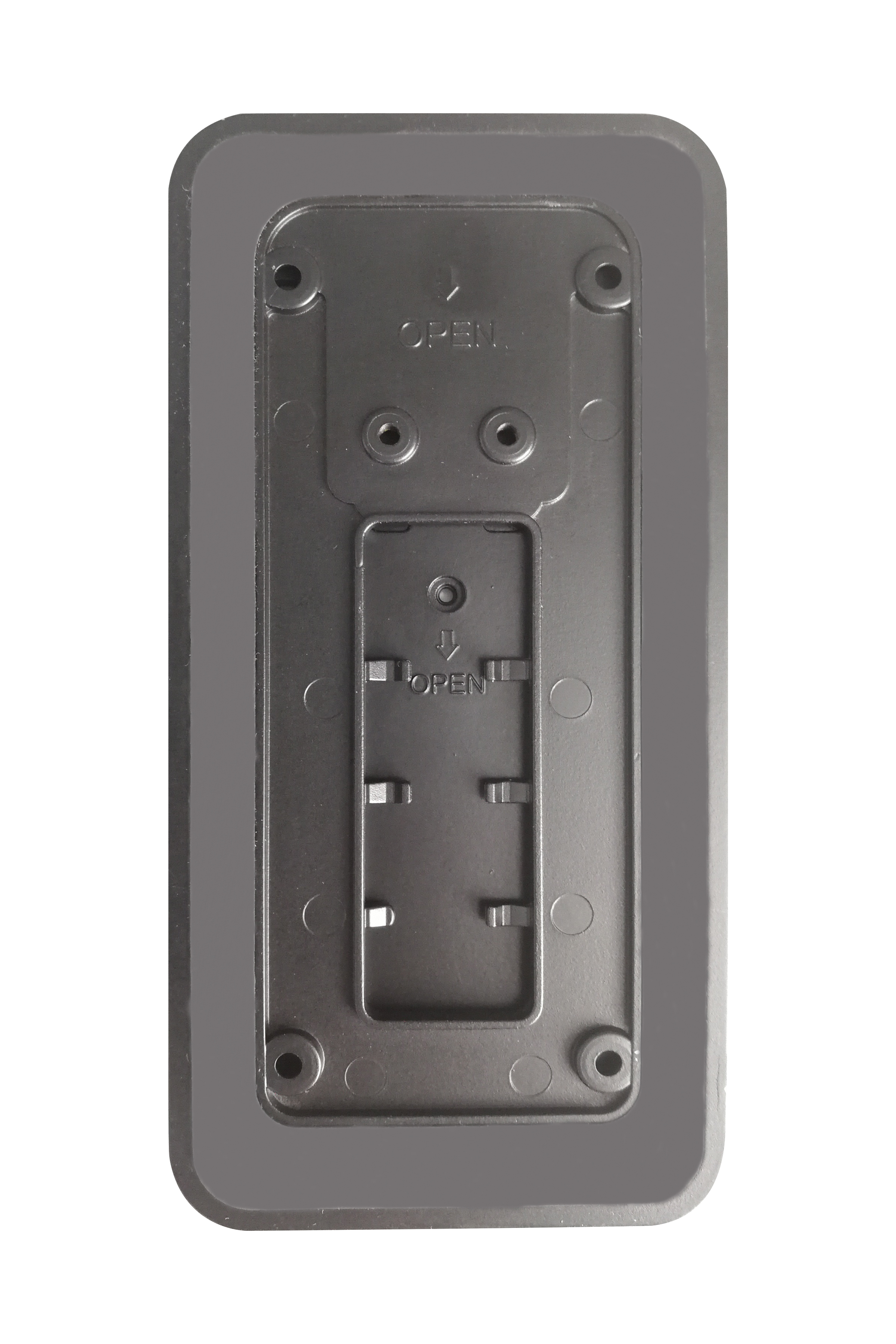

Installation: outdoor wall installation 1.5 meters typical
Protection class (IP): IP55
Protection class: Impact test 0.5Nm
Effective communication range: 250m minimum line of sight
2. System Solution / OS RTOS
System security three-level user rights management
Mobile app requires Android Android: Android 4.3 or later
Support Support: Samsung, HTC, LG, Sony, Nokia
iOS iOS 9.X - 10.X (iPhone 5 / 6S / 7) or later
Mobile APP Support Configuration / Live View / Call Back / Call / Volume Adjustment / Video Adjustment / Recording / Format SD Card
Cloud video storage: NO
Support Cloud Upload: Yes
Amazon Cloud: Yes

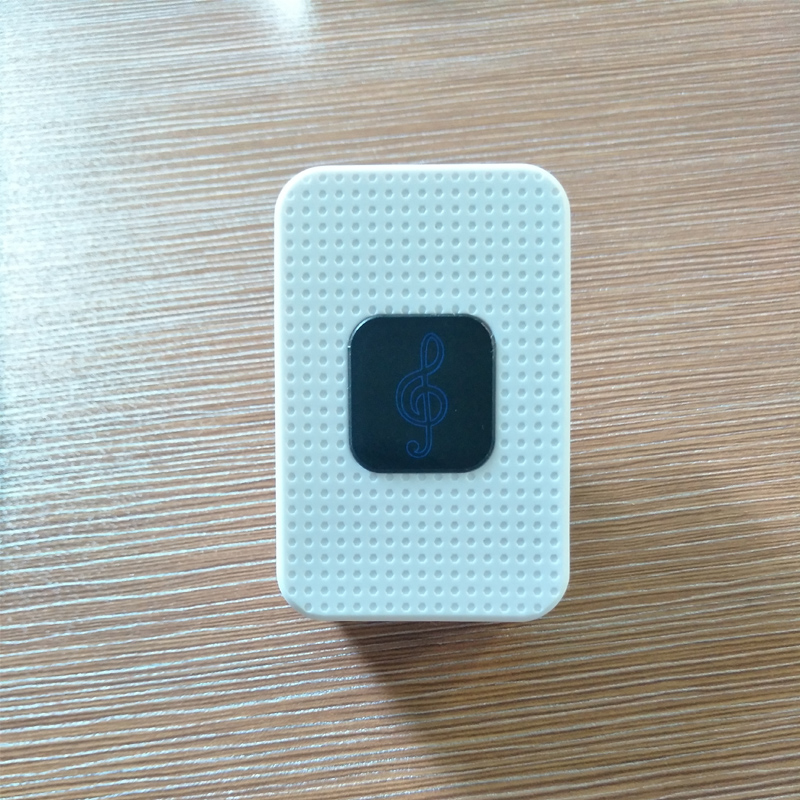

Ringtones: Fixed
Motion Sensor Motion Sensor: PIR
Suppory SD card and TF card: Yes
Format SD card: Yes
Support FAT: Yes
Tamper detection: Yes
Pairing Max Units: AP / Scan QR Code to add devices
Online Visitors: Supports up to 1 online visitor
DDNS (Dynamic Domain Name Server) Dynamic Domain Name Service: NO
3. CMOS sensor and video image sensor: 720P CMOS sensor
Lens/View Angle: 166°
Lens specifications and materials: 1.4mm @ F2.4, 6 layers
Night vision "850nm diameter
5 meters away from IR cutting prefers "
IR Control IR Enable: Enable night vision function, infrared, ICR automatic detection function.
Infrared off: Night view is off, infrared is off, and ICR stays in daylight mode.
Compression standard H.264 / Motion JPEG (when radio quality drops)
Resolution and frame rate multi-stream: 720P / 24fps
Bit rate CBR / VBR, output bit rate range: 128 ~ 4096kbps to be determined
Image adjustment brightness, contrast, saturation adjustable.
4. Audio microphone input: 1 channel built-in -48dB microphone
Speaker output built-in speaker: (8Ω/ 1W)
Echo cancellation: yes
Two-way conversation: Yes
Effective volume indicator: 75dB @ 0.5m
Microphone Instruction: Omnidirectional
Effective detection range: 0.5m
5. Video recording mode Motion detection recording, doorbell button trigger recording, scheduled recording/remote recording
Storage TF card storage
Maximum recording time: depends on the capacity of the storage device
Full-duplex recording of recorded video, two-way audio, date/HH:MM:SS printing
Play instructions: non-read records /
Storage Device Full Management: Overwriting the Most Recorded Video
Live Browsing via: Mobile App Activates Camera
UI / UX interface via mobile APP
