Specifications

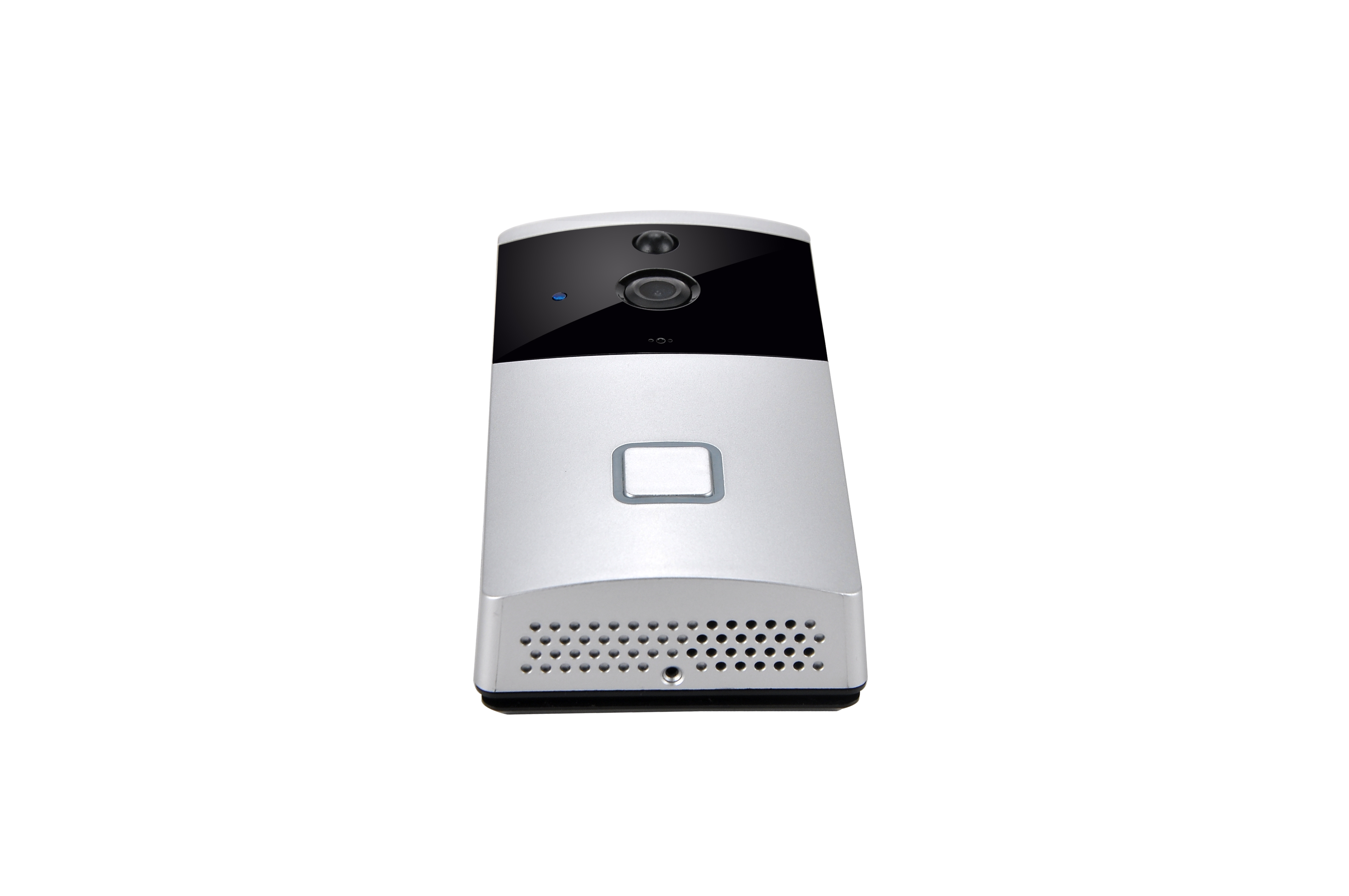

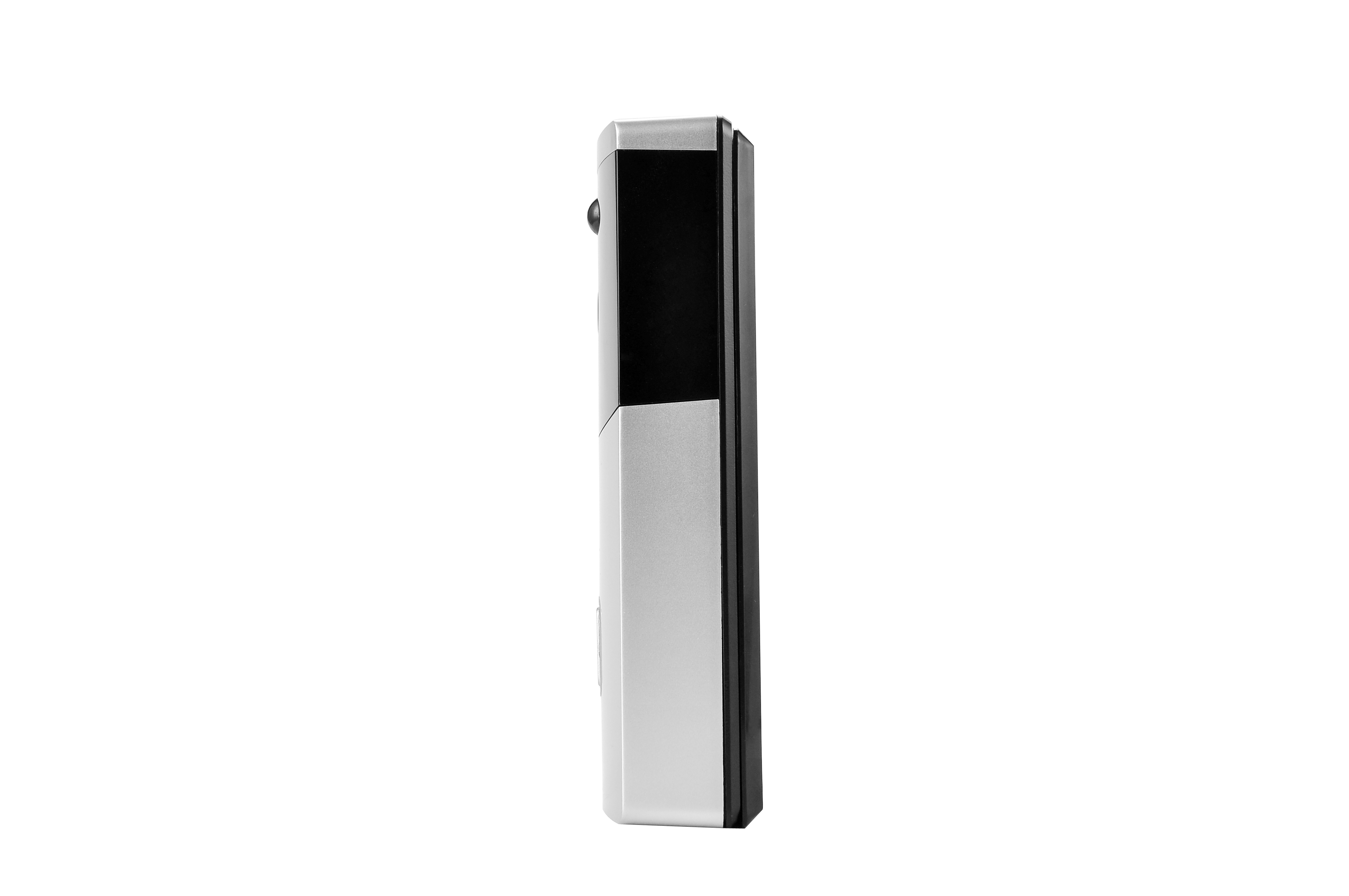

SMHA0014

system structure

Embedded RTOS design, dual-core 32-bit DSP (Hi3518EV201), hard-compressed, watchdog

sensor

1 million 1/4" SC2145H CMOS sensor; color 0.1Lux@F1.2, black and white 0.01Lux@F1.2

Video processing

H.264+/H.264 video encoding, support dual stream, AVI format; support stream adjustable 0.1M~6Mpbs;

support frame rate adjustable from 1 to 30 frames per second

Image output

Main stream: 1280*720@25fps; Substream: 704*576@25fps

shutter

1/50 (1/60) second to 1/10000 second

Lens

no

Day and night conversion

Support IR-CUT

Noise reduction

Supports 2D/3D noise reduction

Wide dynamic

Supports digital wide dynamics

Automatic aperture

no

Audio processing

G.711A codec standard, support two-way voice intercom function, support audio and video synchronization

audio port

1 input, level 2Vp-p, impedance 1kΩ, support pickup input; 1 output, impedance 16Ω, 30mw output power,

support for connecting headphones or amplifier

Network Interface

no

Extension ports

no

Signal interface

1 photosensitive resistor interface, 1 IR-CUT driver interface, support the linkage of the

photoresistor input signal with IR-CUT, infrared light

Human sensing

PIR infrared human sensor, support passive infrared sensor

Motor interface

no

Alarm I/O

no

WIFI antenna interface

1 WIFI antenna interface, support for wireless network connection, a key WPS function

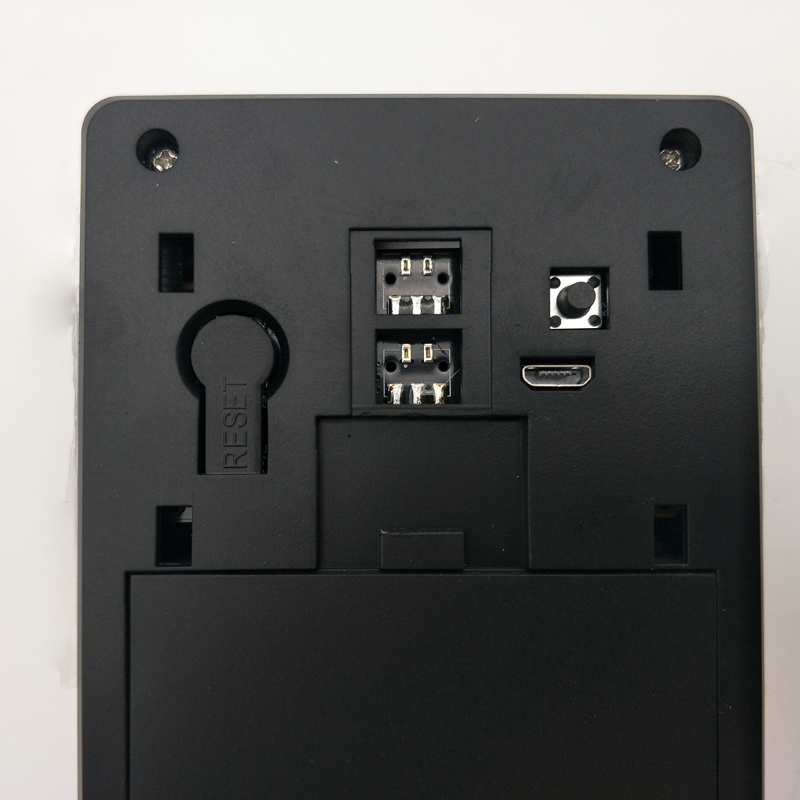

Reset key interface

Supports one-button reset

SD card slot

stand by

reliability

Comprehensive lightning protection, in line with national international standards;

7*24 hours high temperature test at 65°C is stable and reliable (including test of the whole machine)

Insight

not support

Business functions

Supports WEB configuration, OSD, motion detection, center alarm after motion detection alarm, screen pop-up linkage; support MJPEG capture; support client remote monitoring software,

MYEYE platform and other system applications; provide a complete SDK development package

ONVIF

not support

Phone monitoring

Does not support mobile monitoring (iOS, Android)

power supply

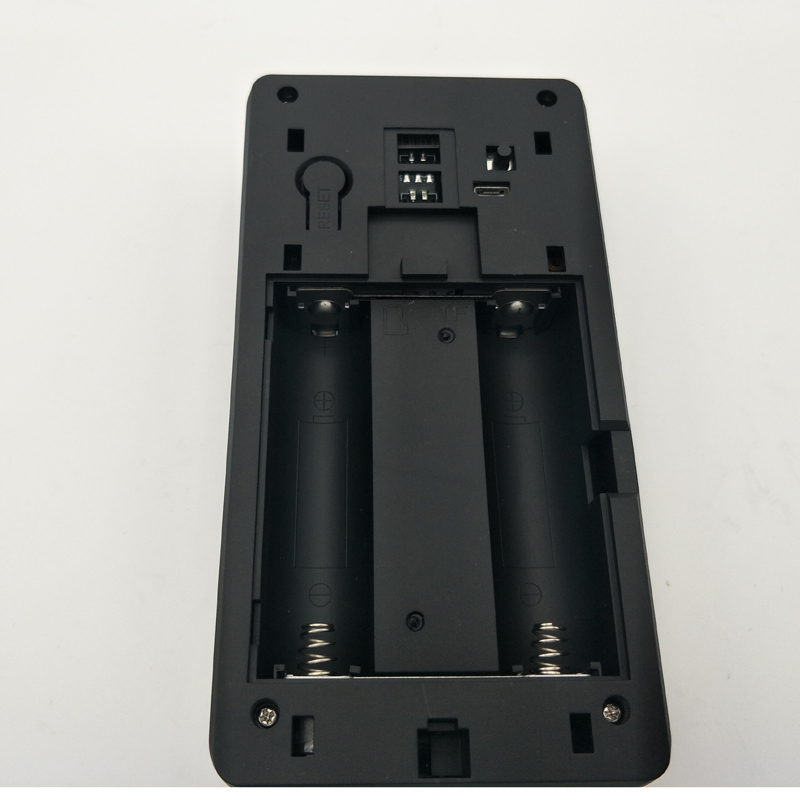

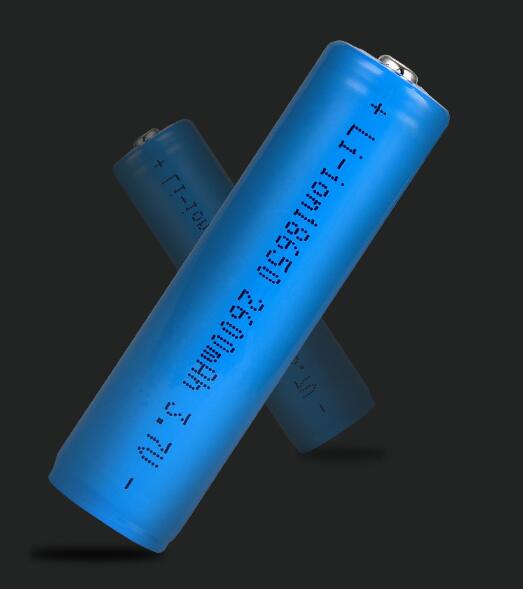

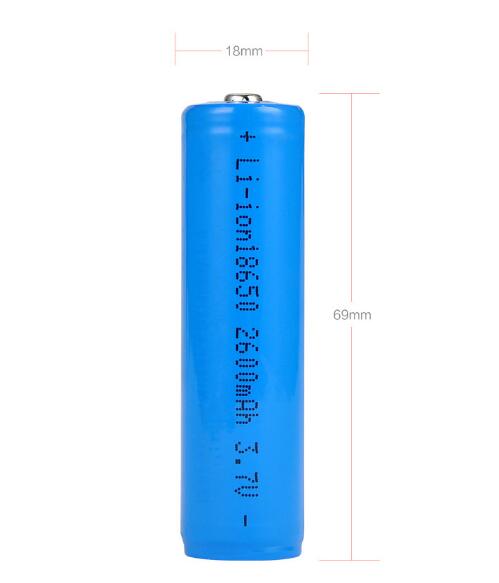

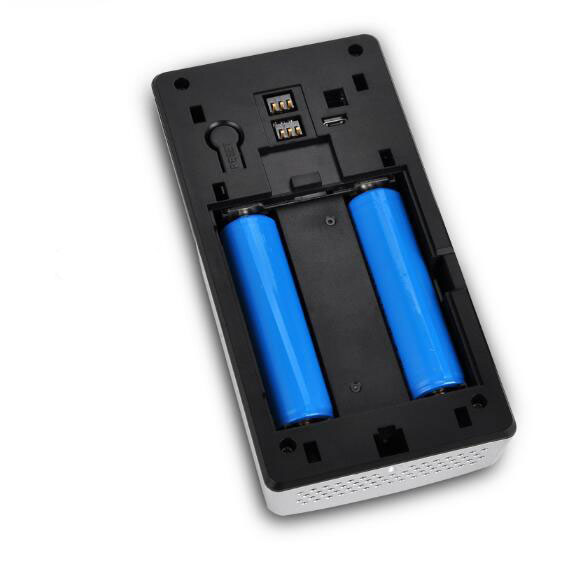

Power (optional): 1, DC5V; 2, 24V AC power supply; 3, 2 * 18650 power supply (support charging)

Attributes

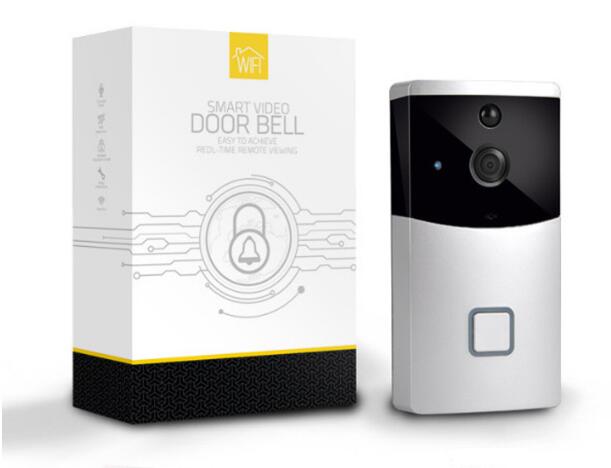

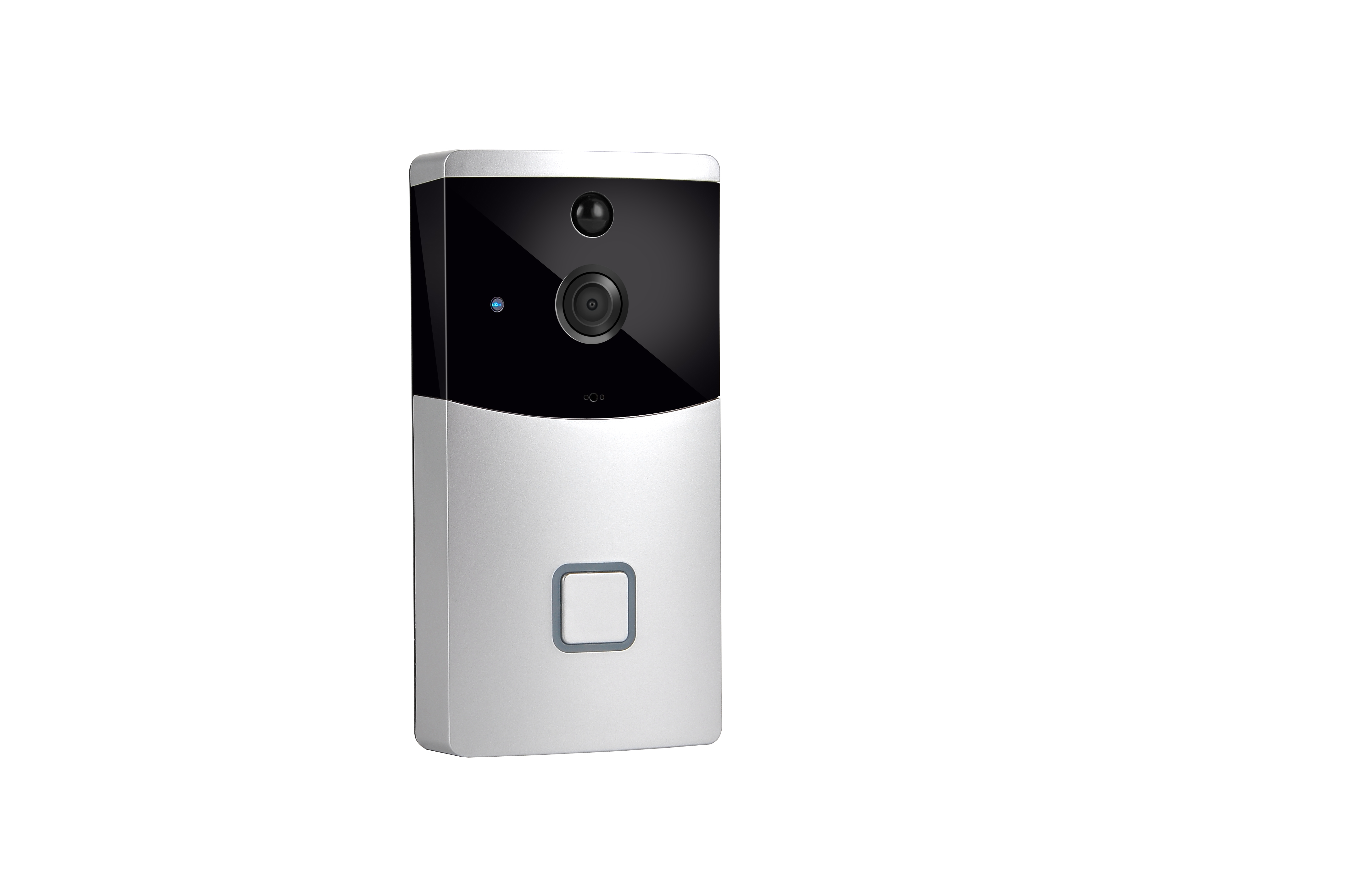

Low power doorbell only

other

Does not support any customization

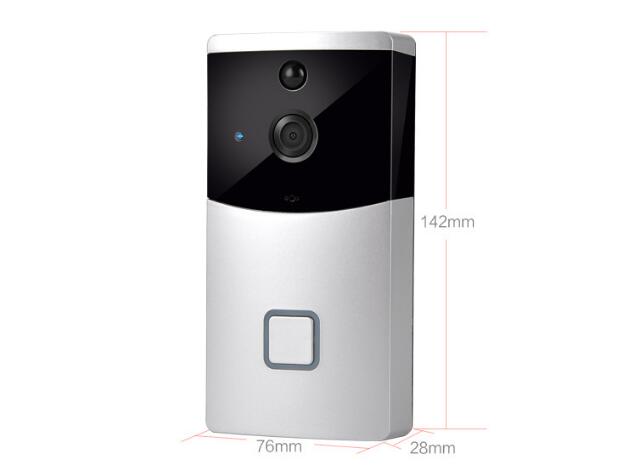

size

76mm*28mm*142mm

weight

0.377kg
