Smart mobile phone remote WIFI waterproof photo doorbell

Model：SMHA0015

Description

Function:

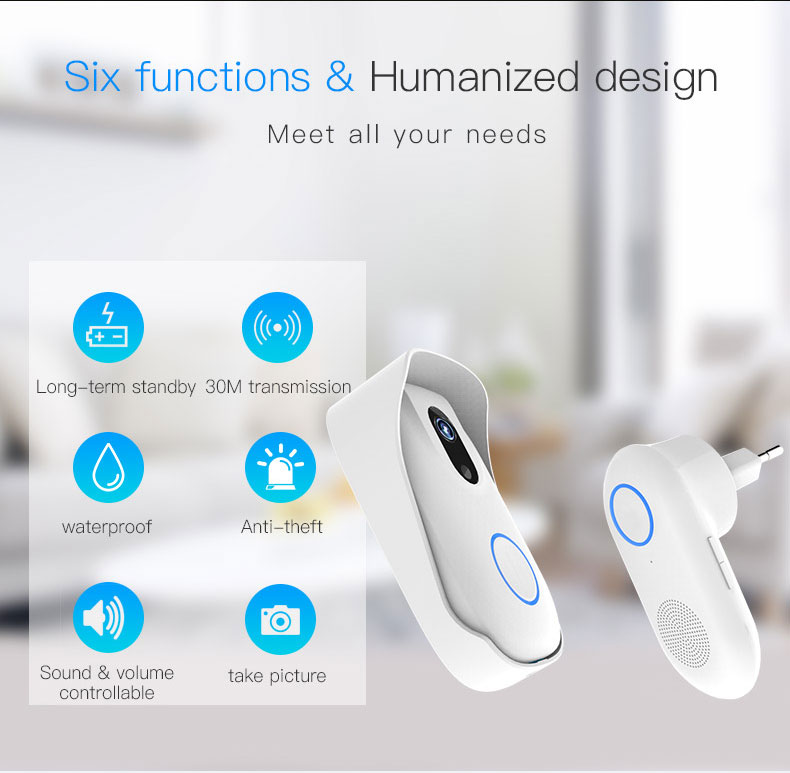

1. Six functions& Humanized design, meet all your needs: long-term standby, 30m transmission, waterproof, anti-theft, sound & volume controllable, take picture.

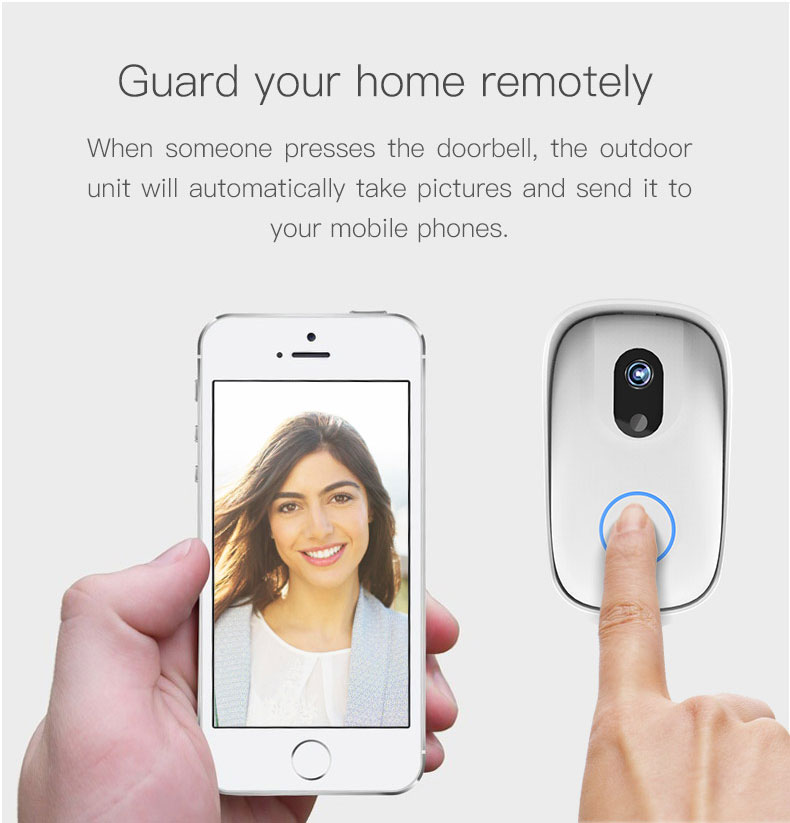

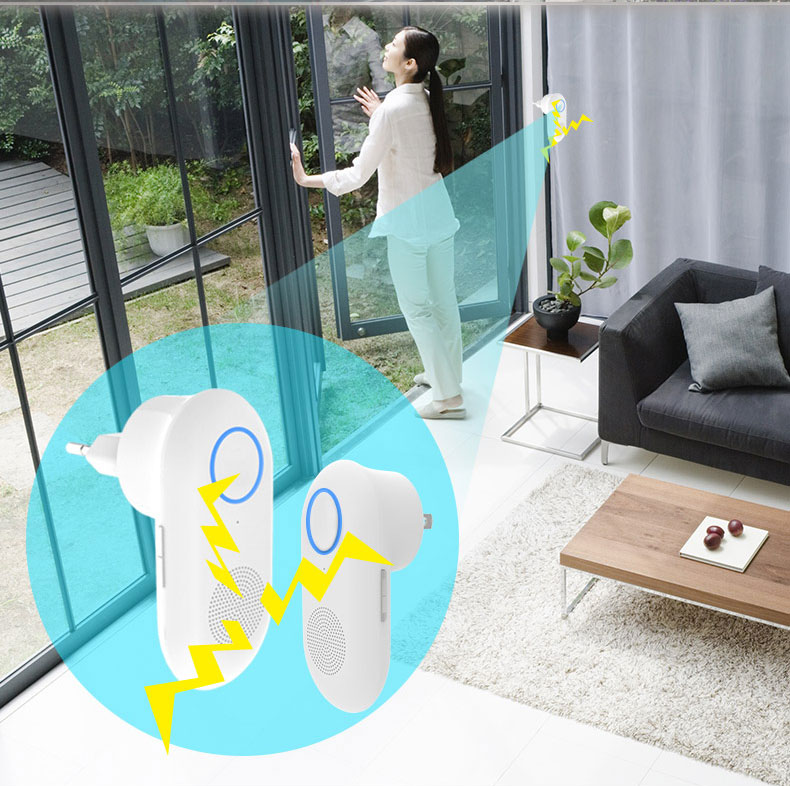

2. Guard your home remotely: when someone presses the doorbell, the outdoor unit will automatically take pictures and send it to your mobile phones.

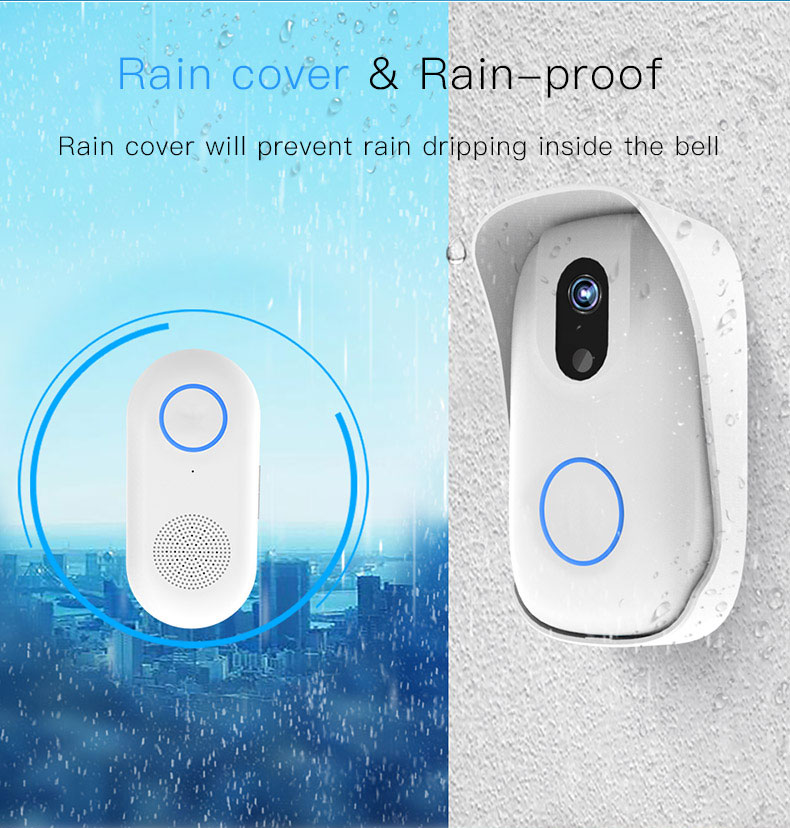

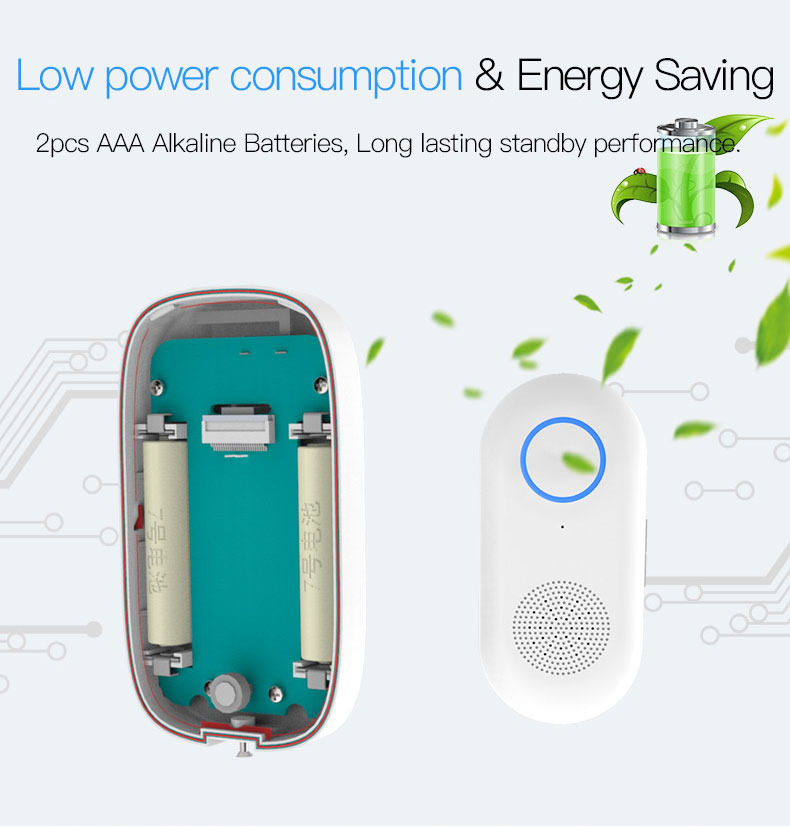

3. Rain cover & Rain-proof: rain cover will prevent rain dripping inside the bell. 4.Low power consumption & Energy Saving: 2pcs AAA Alkaline Batteries, Long lasting standby performance.

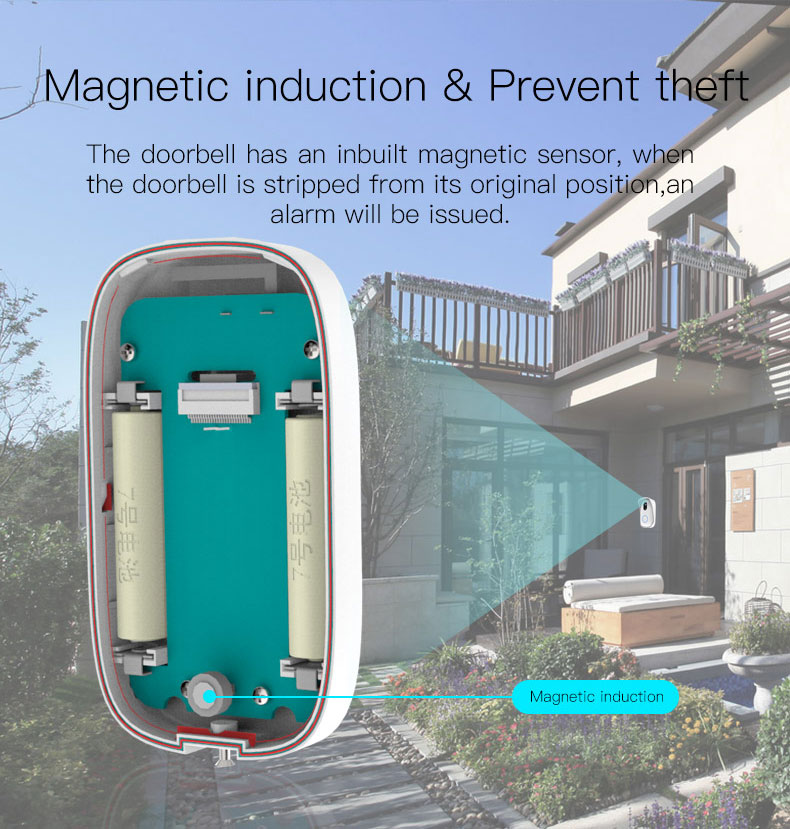

5.Magnetic Induction & Prevent theft: the doorbell has an inbuilt magnetic sensor, when the doorbell is stripped from its original position, an alarm will be issued.
6.Easy to insall no wiring: remove tedious cabling, bid farewell to messy, and easily complete the installation.

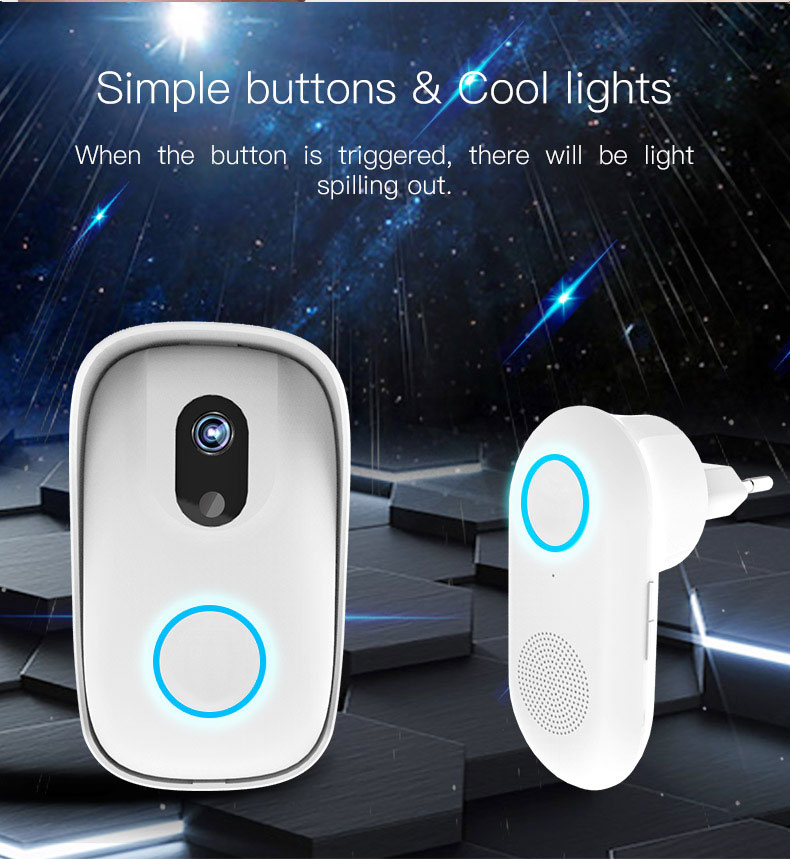

7.Simple buttons & cool lights: when the button is triggered, there will be light spilling out.

Smart Snapshot Doorbell Specification

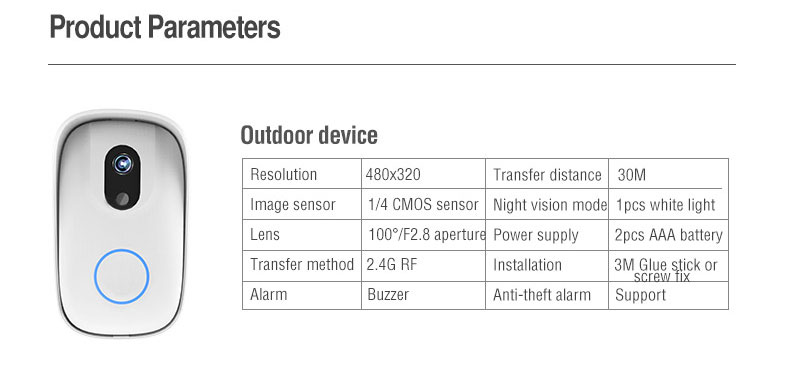

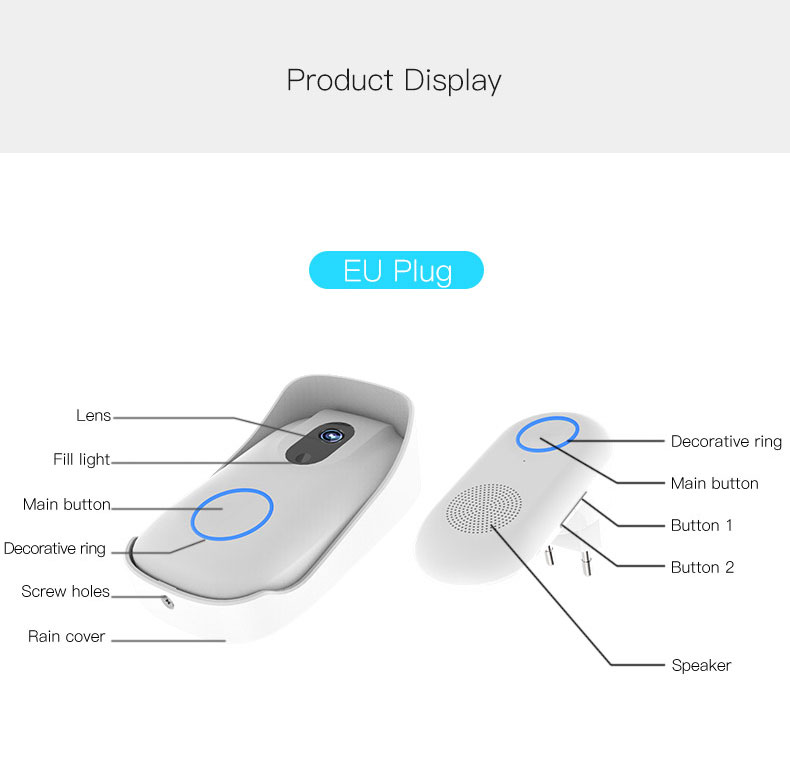

Outdoor unit
Resolution	480x320
Pic Format	JPEG
Sensor	2 MP 1/4 inch OV CMOS image sensor
Lens	100°@F2.8
Transmission mode	2.4G RF
Transmission range	30 m
Night Mode	Support（1 LED light）
Button	1(only take snapshot)
Power supply mode	A pair of No.7 battery (in series)
Microphone	N/A
Speaker	Buzzer
USB slot	N/A
Surface treatment	Material（Specular surface）
Color	White

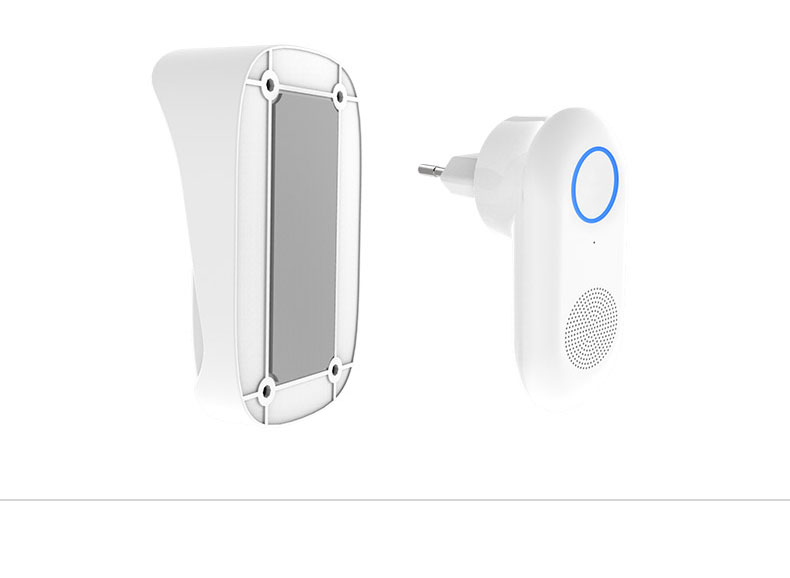

Fixed mode	3M glue or screw fixation (user optional)
Battery removal mode	Buckle (buckle + screw design for easy replacement of battery)
Waterproof	IP63
Burglar alarm	Support
Size	995931 mm

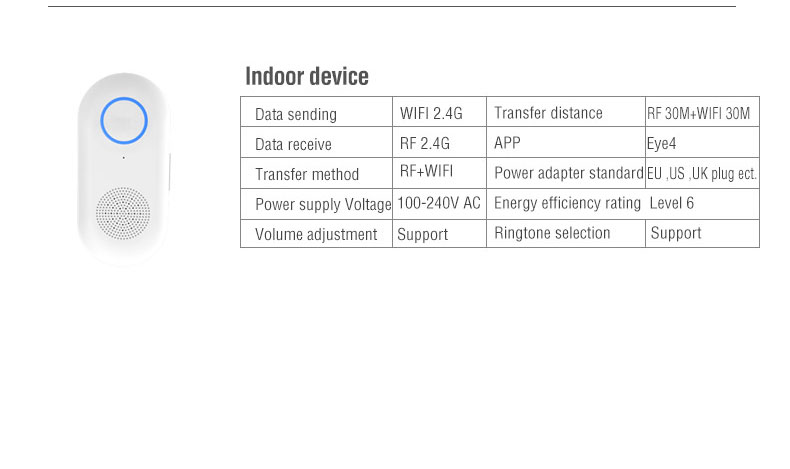

Indoor unit

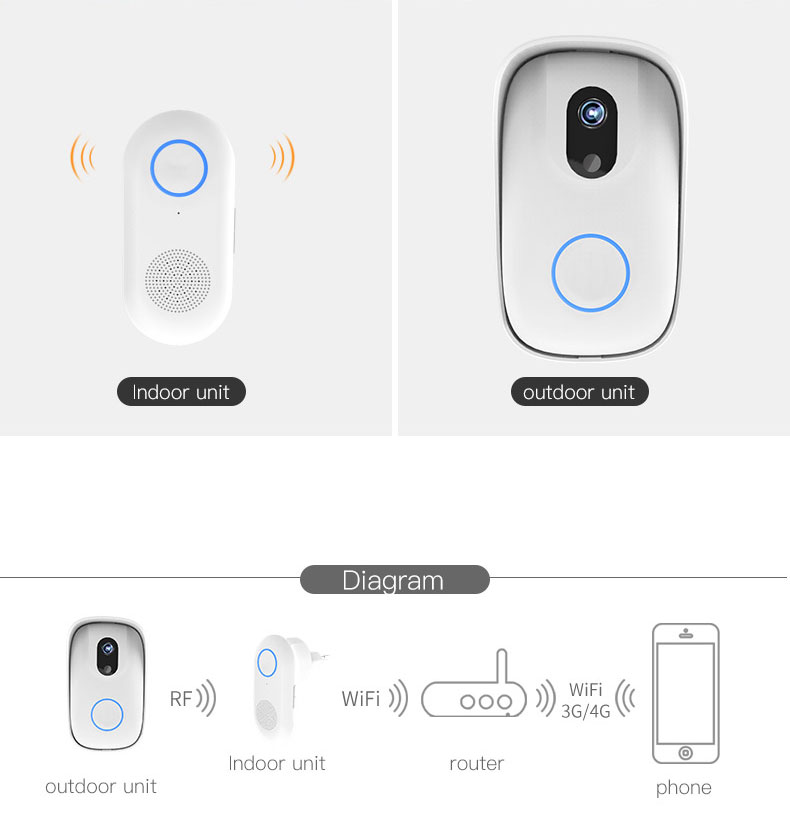

Transmission mode	RF+WIFI
Network	WIFI 2.4G
Receiving data (picture)	RF 2.4G
Transmission range	RF 50 meters+WIFI 50 meters
Button	Three buttons Mode key: Fast press 3 / long press for 10 seconds --- enter RF pair code state Press 3 seconds -wifi reset and restore to factory setting. > + button: Short press to switch music to the next song; long press to increase the volume to the maximum. > - button:
Speaker	Speaker (ding dong, power: 2W)
Power supply mode	Wide voltage 110 v to 220 v

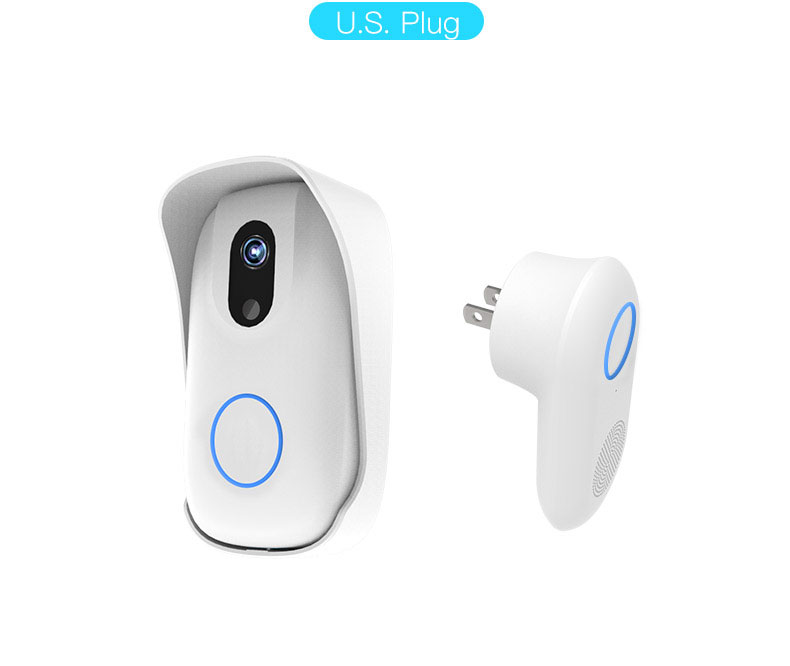

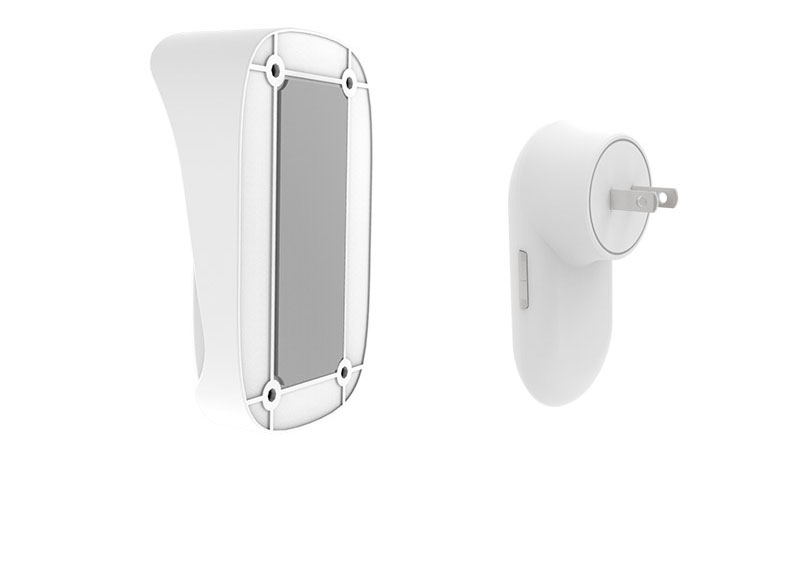

Plug	EU, US, UK plug
Certification	FCC/CE/ROHS
Energy Efficiency Index	Level 6
Architectural lamp	4 pcs
Indicator light	1 pc
Surface treatment	Material（Ruled surface）
Color	White
Operating condition	Temperature: 0 to 40°C Humidity: 30% to 90%
Size	994650 mm

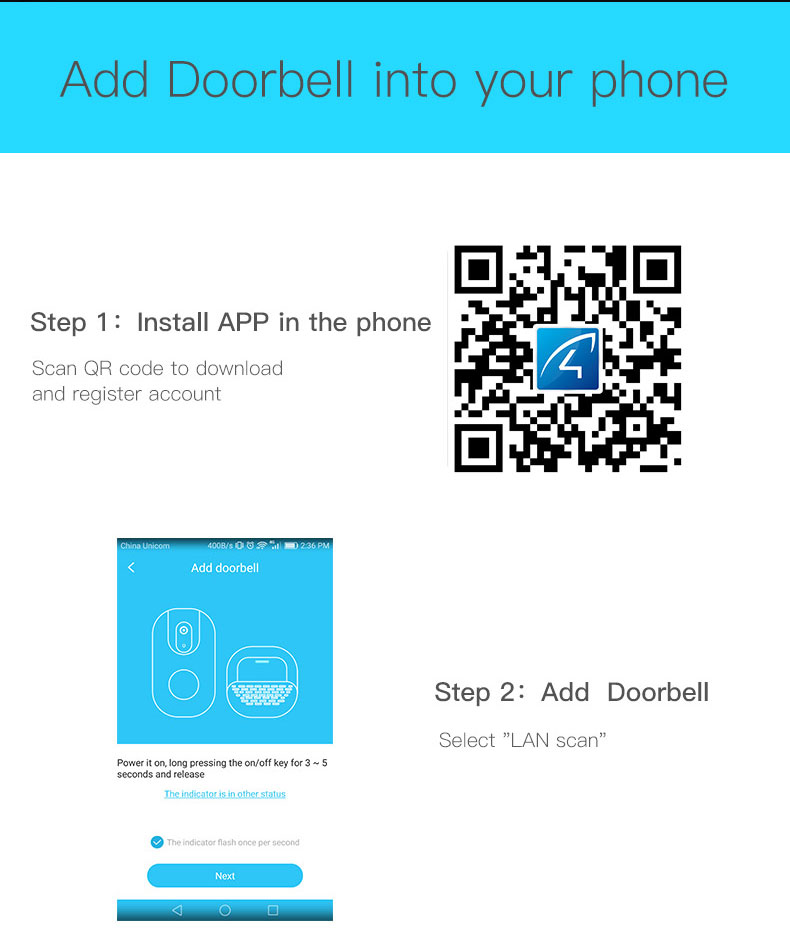

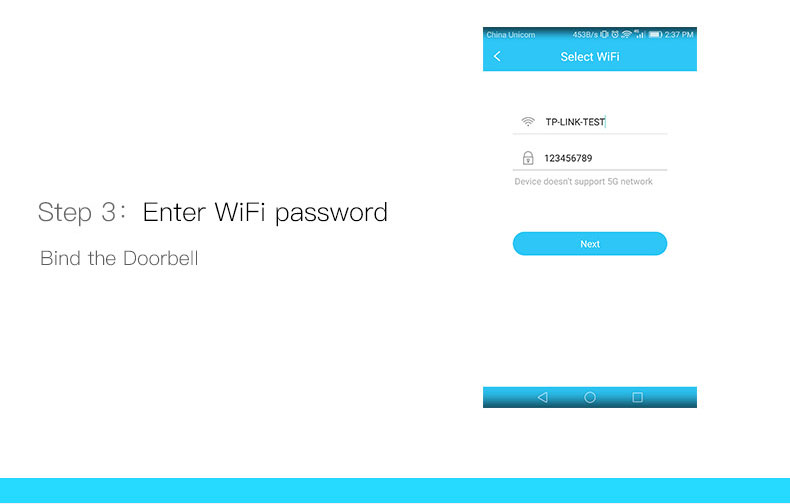

APP	Support（Eye4）
Push	Support（Eye4）
Response time	1-2 secs（Depends on network condition)
Package	Outdoor unit (part A) + indoor unit (part B) +a pair of No.7 batteries + blister inner bracket + external color box.
