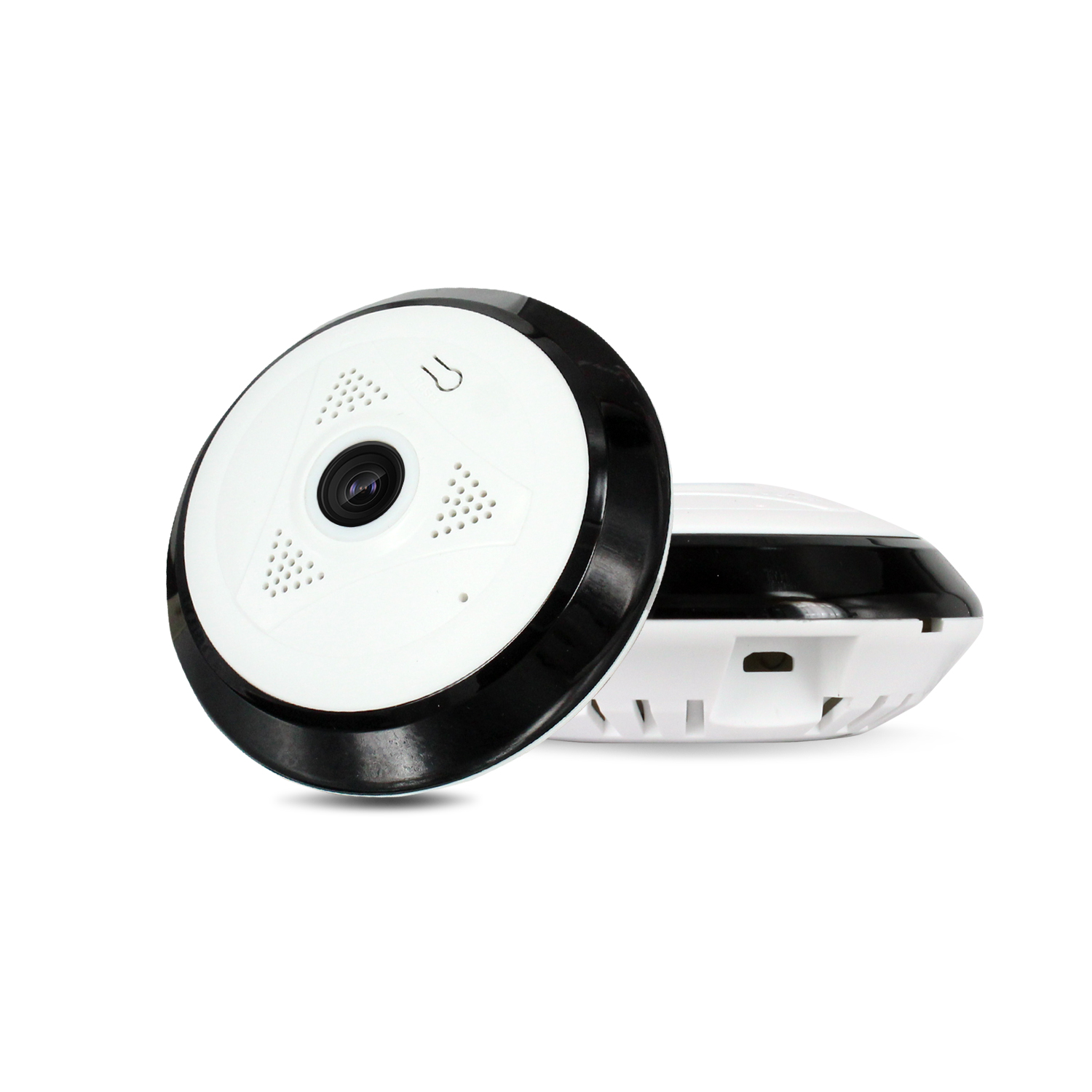

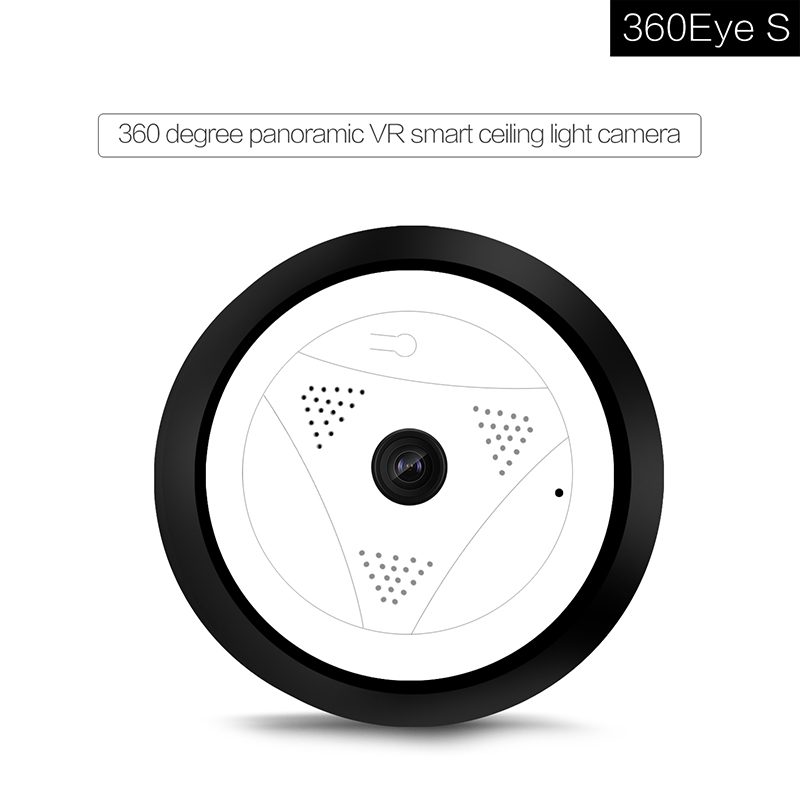

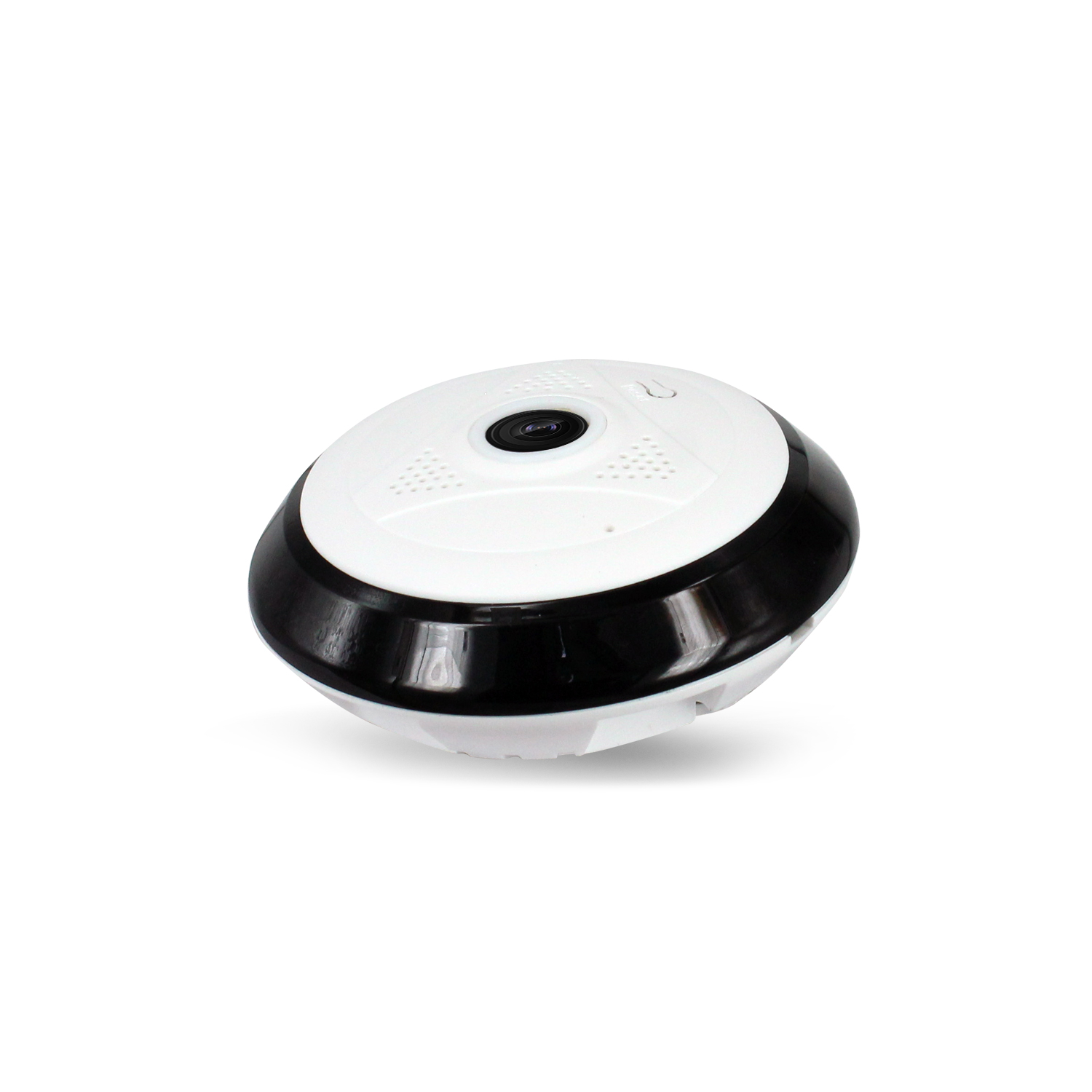

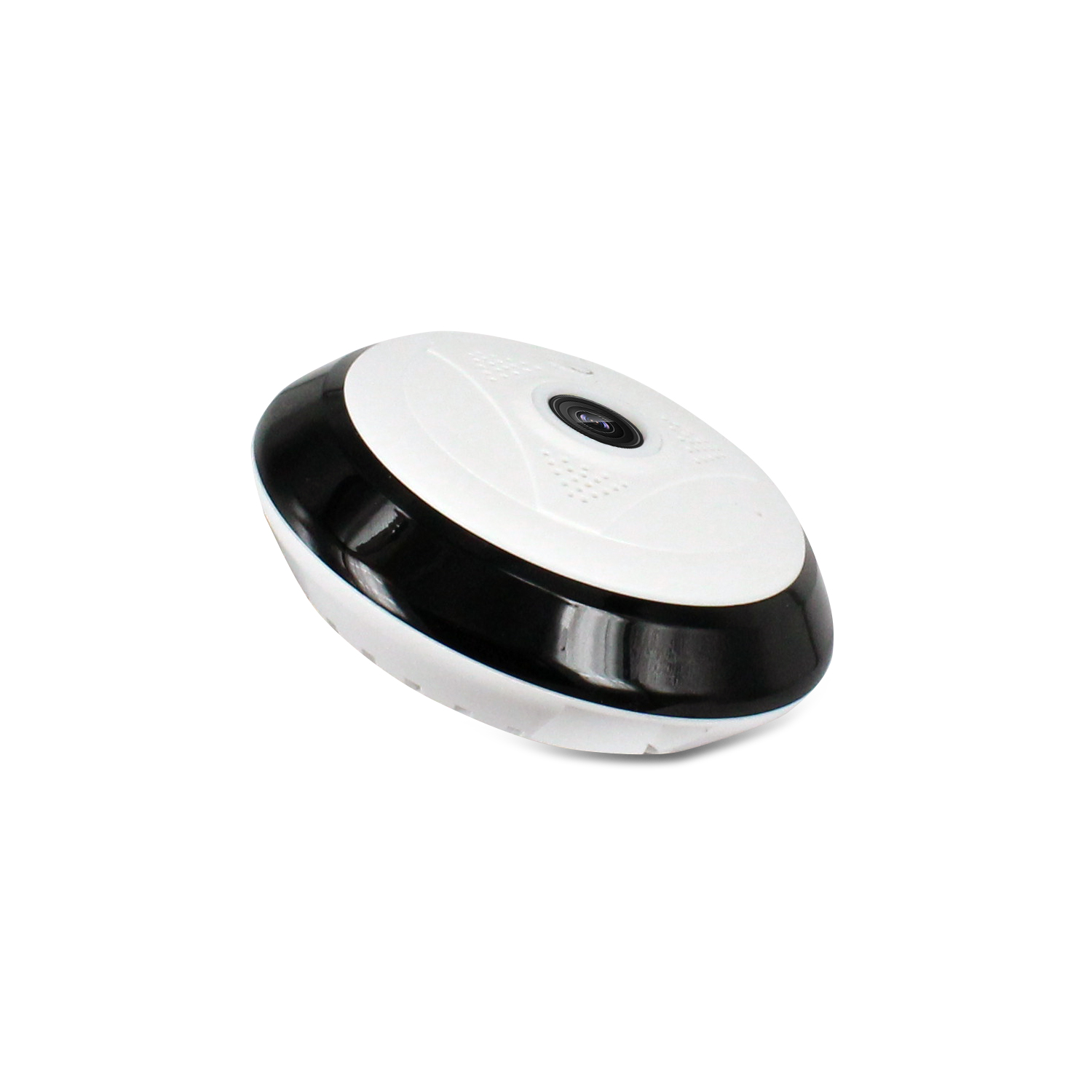

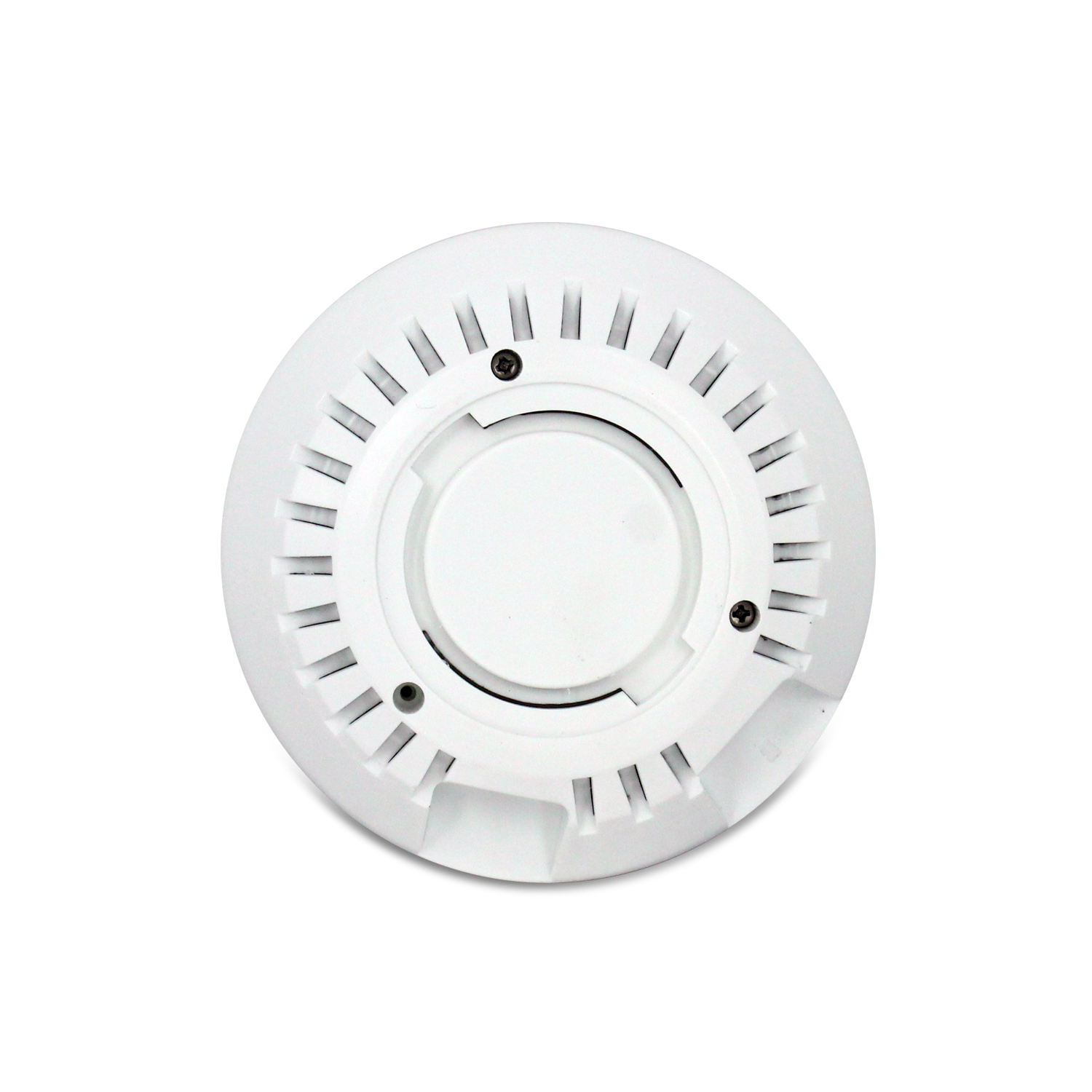

| Product name： | EC network panoramic camera |
| Product model： | IPCM0045 |
| Technical parameter | |
| Processor： | GM8135+SC1135 |
| Platform： | S.360eye.cc |
| Image sensor： | 1/3 Progressive Scan CMOS |
| Built in lens： | 1.44mm,360 degrees fisheye lens |
| View Angle： | 360 degrees |
| Video format： | 1280*960P(1.3MP) |
| Video compression standard： | H.264 |
| Audio compression standard： | G.711 |
| Video frame rate： | Maximum 25 frames |
| Video playback mode： | Mobile client |
| Audio input and output： | Input： built in microphone; output： built-in speaker |
| Infrared night vision： | Through the image contrast control switch, IR night vision distance 10 meters, (optional IR-CUT switch) |
| Focusing method： | Manual |
| Local storage： | TF card, maximum support 128G |
| Support multiple protocols： | TCP/UDP、IP、HTTP、SMTP、DHCP、DDNS、UPNP、NTP |
| WiFi protocol： | IEEE 802.11b/g/n |
| Video control： | Support |
| Motion detection： | Support |
| Alarm action： | Mobile client push screenshot |
| User settings： | Max share to 5 users |

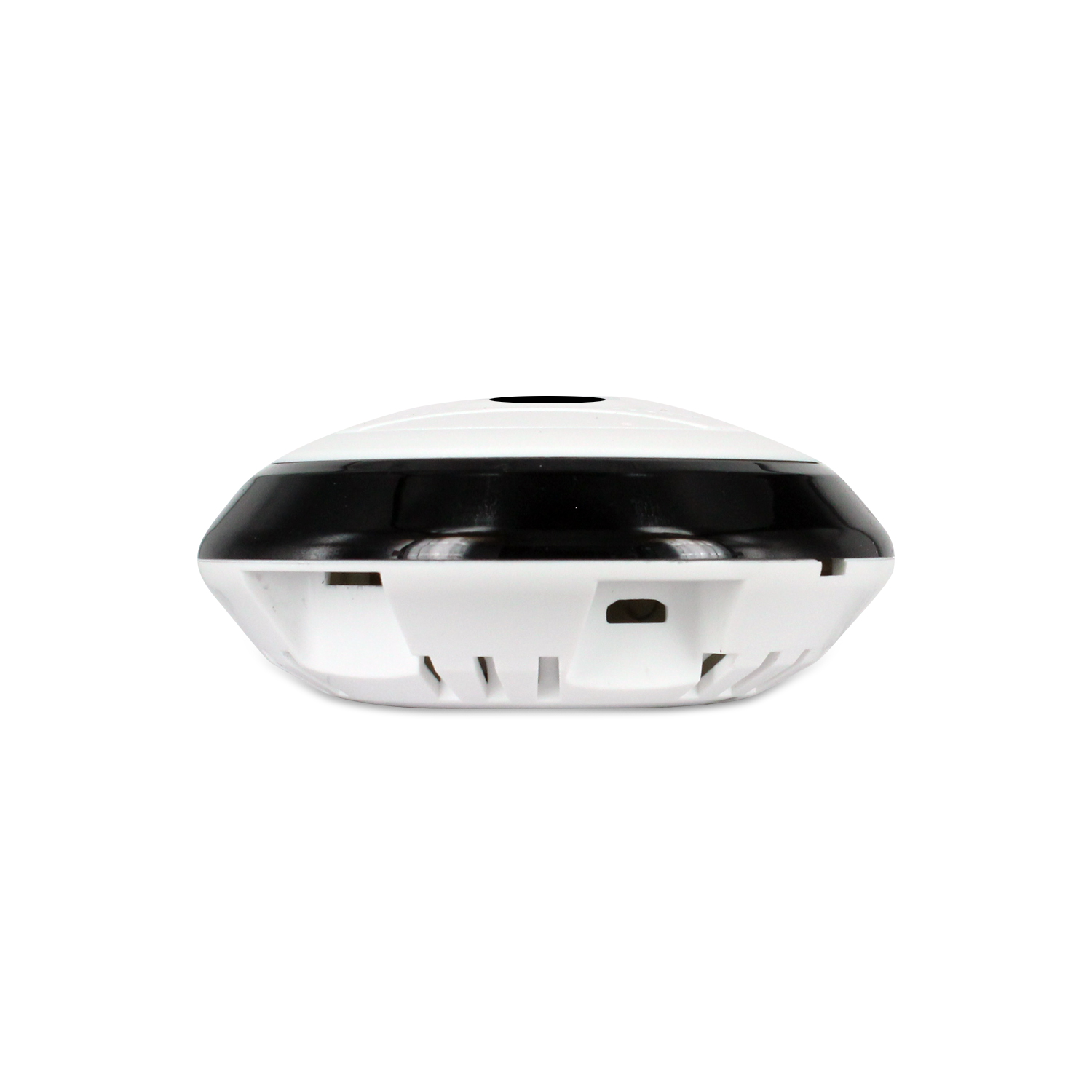

| System interface： | 1pc USB power supply interface, 1pc TF interface |
| Supply voltage： | 5V 1A |
| Power consumption： | <5W |
| Working temperature： | 0℃ -60℃ |
| Applicaton： | Indoor |

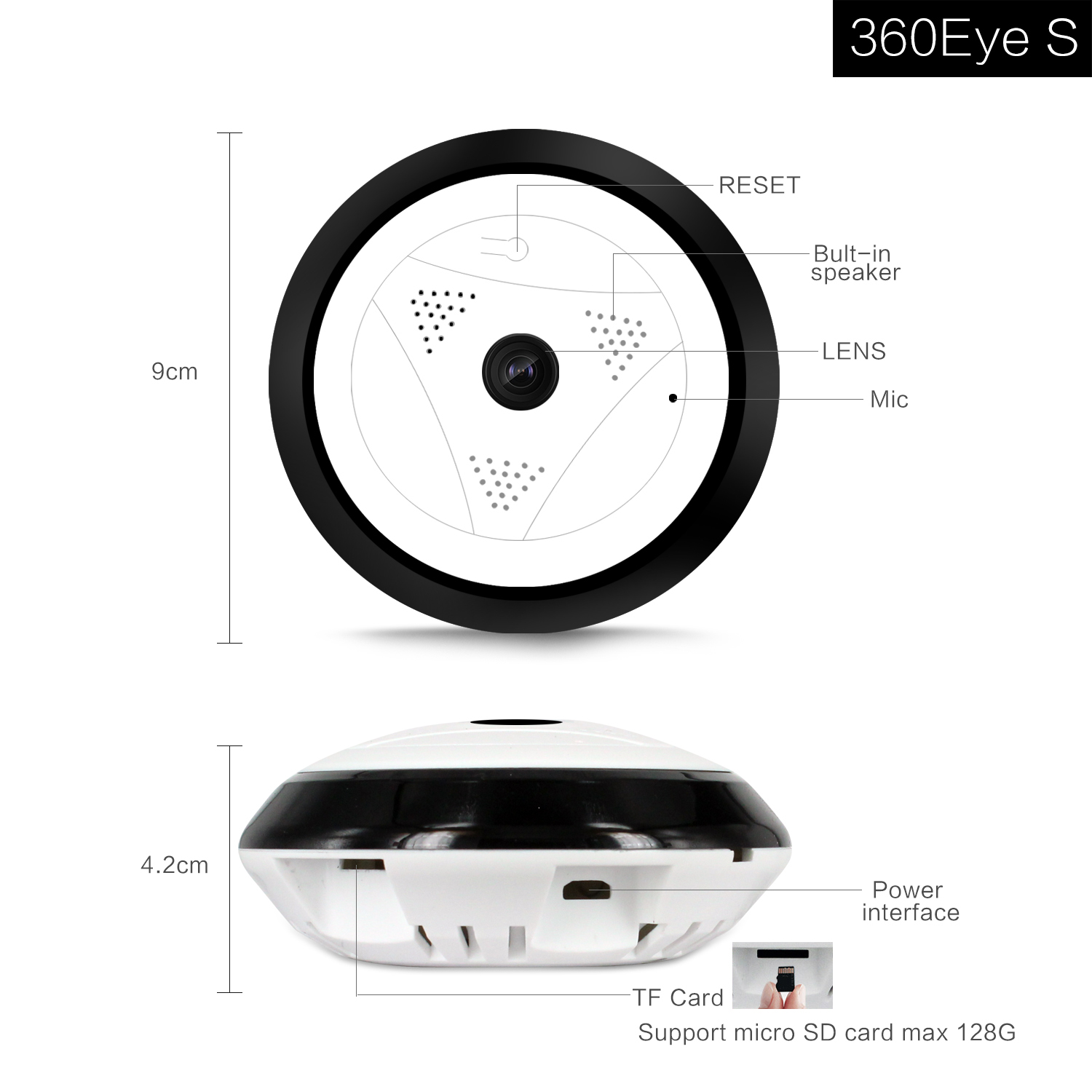

| Product size: | 9.0*9.0*4.2cm |
| Packing size: | 11.2*14.2*6.6cm |
| Net weight： | 76g |
| Gross weight/pc： | 277g |
| Carton size： | 57*30*34.5cm（50pcs/Carton） |
| Gross weight/carton： | 14.6Kg |

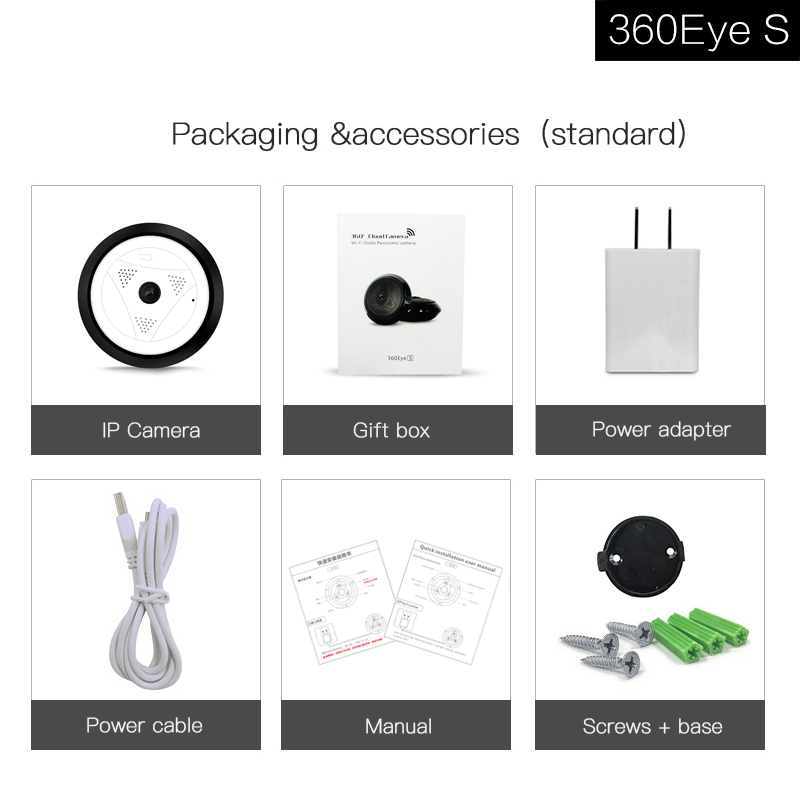

| Packaging and accessories： | 1 Color box |
| 2 Inner support | |
| 3 Power supply | |
| 4 Screw package | |
| 5 Instructions | |
| 6 Wall fixed tray | |
