| Product name: | EC network panoramic camera |
| Product model: | IPCM0075 |
| Technical parameter | |
| Processor: | GM8135+SC1135 |
| Platform: | S.360eye.cc |
| Image sensor: | 1/3 Progressive Scan CMOS |
| Built in lens: | 1.44mm, 360 degrees fisheye lens |
| View Angle: | Horizontal 360 degrees overhead view |
| Video format: | 1280*960P |
| Video compression standard | H.264 |
| Audio compression standard | G.711 |
| Video frame rate: | Maximum 25 fps |

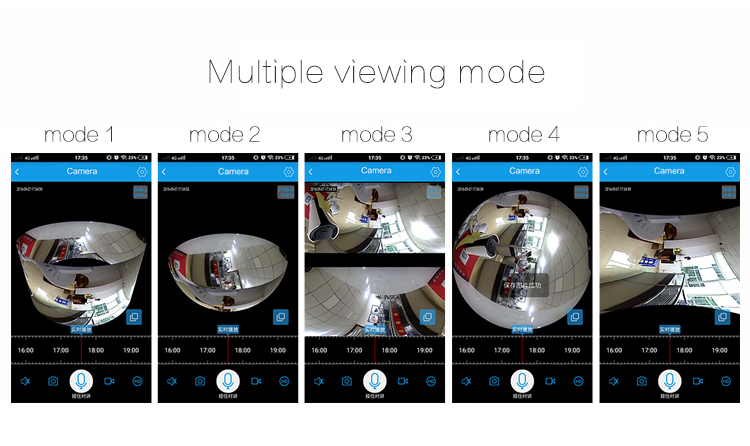

| Video playback mode: | Mobile APP |
| Audio input and output: | Input: built in microphone; output: built-in speaker |

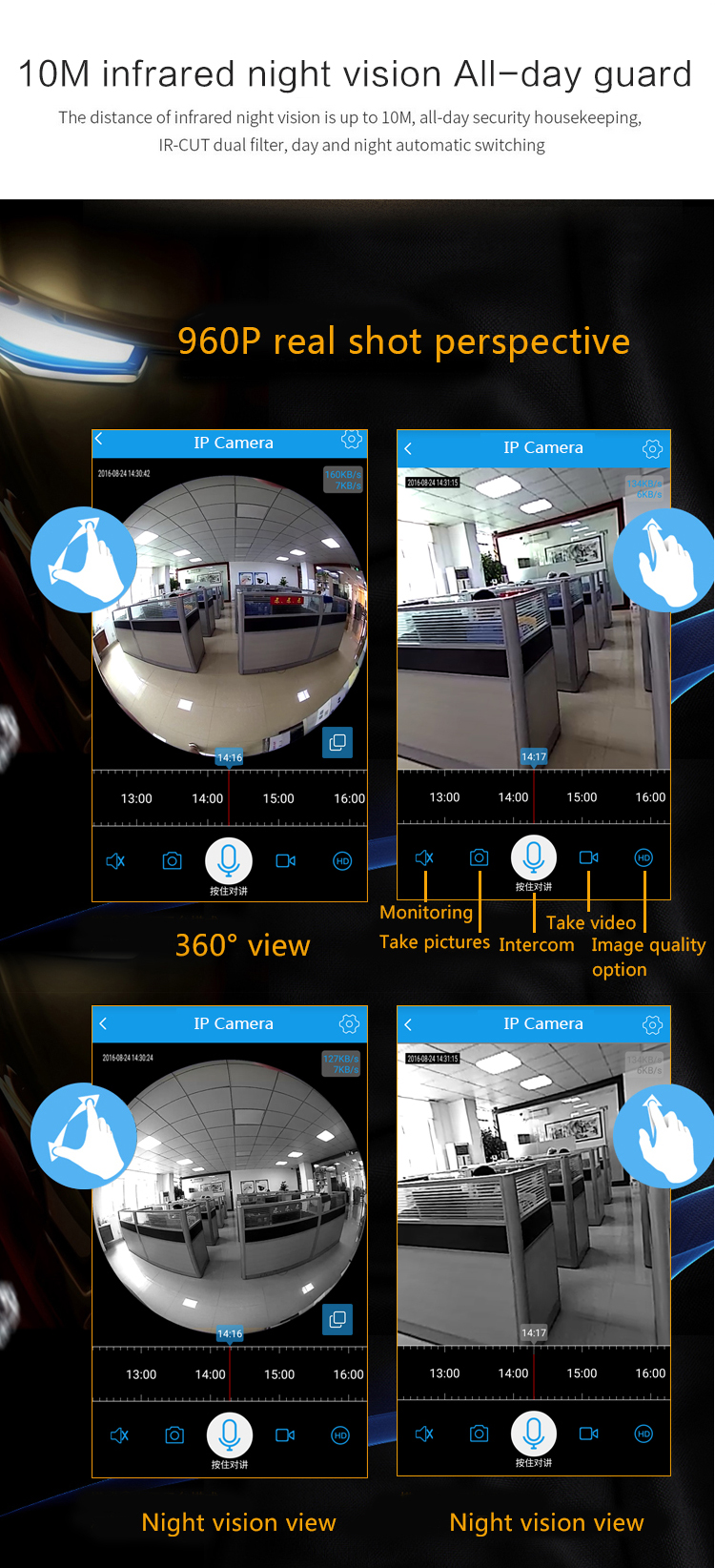

| IR night vision: | Through the image contrast control switch, IR night vision distance 10 meters, (optional IR-CUT switch) |
| Focusing method: | Manual |
| Local storage | TF card, maximum support 128G |
| Support multiple protocols: | TCP/UDP、IP、HTTP、SMTP、DHCP、DDNS、UPNP、NTP |
| WiFi protocol: | IEEE 802.11b/g/n |
| Video control: | Support |
| Motion detection: | Support |
| Alarm action: | Mobile APP push screenshot |
| User settings: | Max share to 5 users |
| System interface: | 1pc USB power supply interface、1 TF interface |
| Supply voltage: | 5V 1A |
| Power consumption： | <5W |
| Working temperature: | 0℃ -60℃ |
| Applicaton: | indoor |

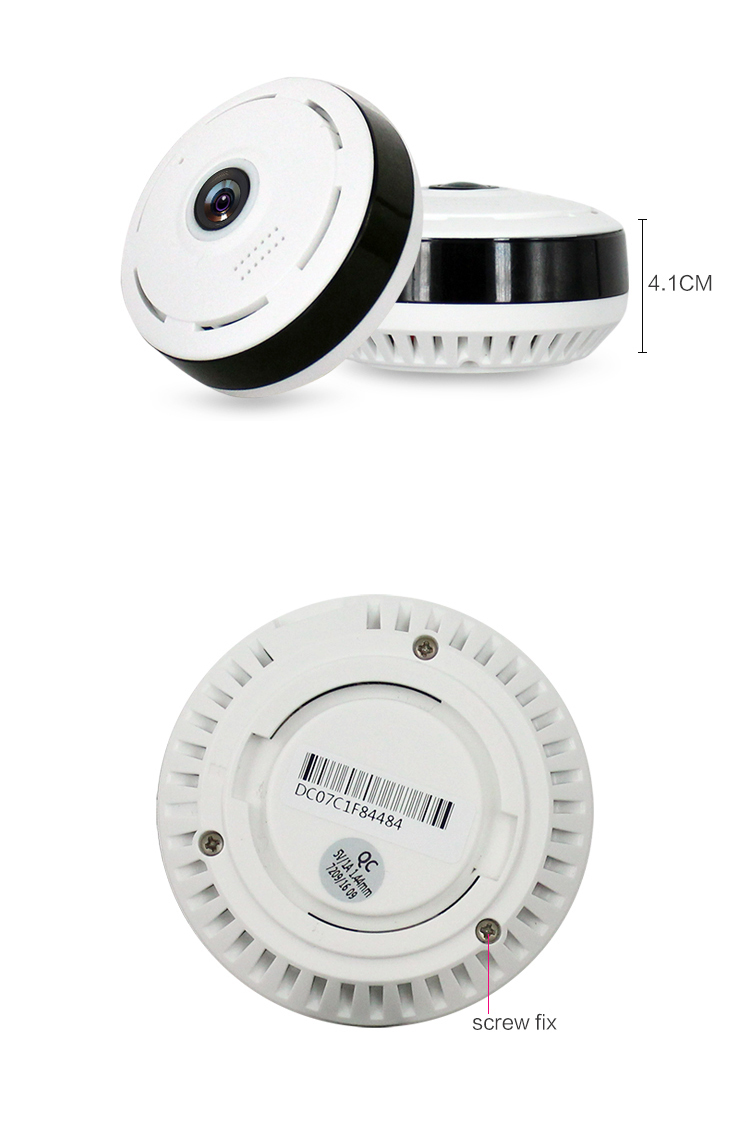

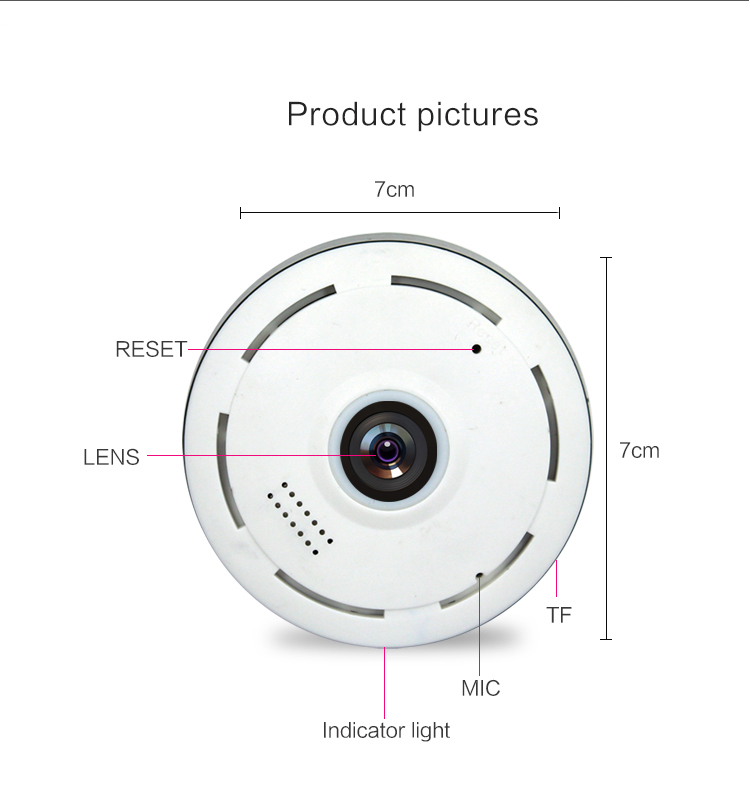

| Product size: | 7.0*3.7CM |
| Packing size: | 11.2*14.2*6.6CM |
| Net weight: | 71g |
| G.W. weight: | 288g |
| Carton size： | 57*30*34.5（50pcs/Carton） |
| Gross weight: | 15.1KG |
| Packaging and accessories | 1 Color box |
| 2 Inner support | |
| 3 Power supply | |
| 4 Screw package | |
| 5 Instructions | |
| 6 Reset Pin |
