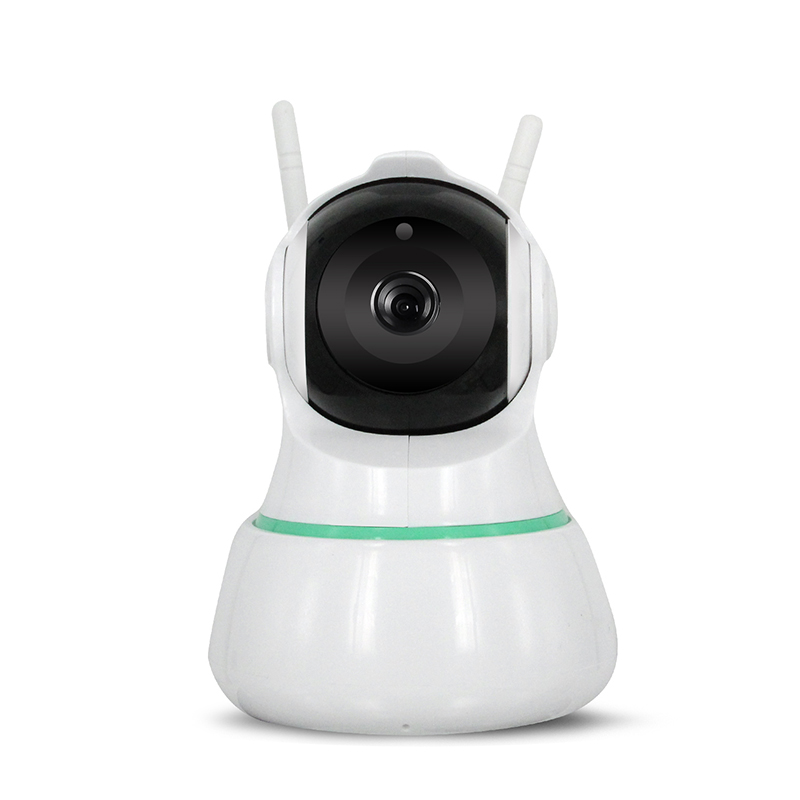

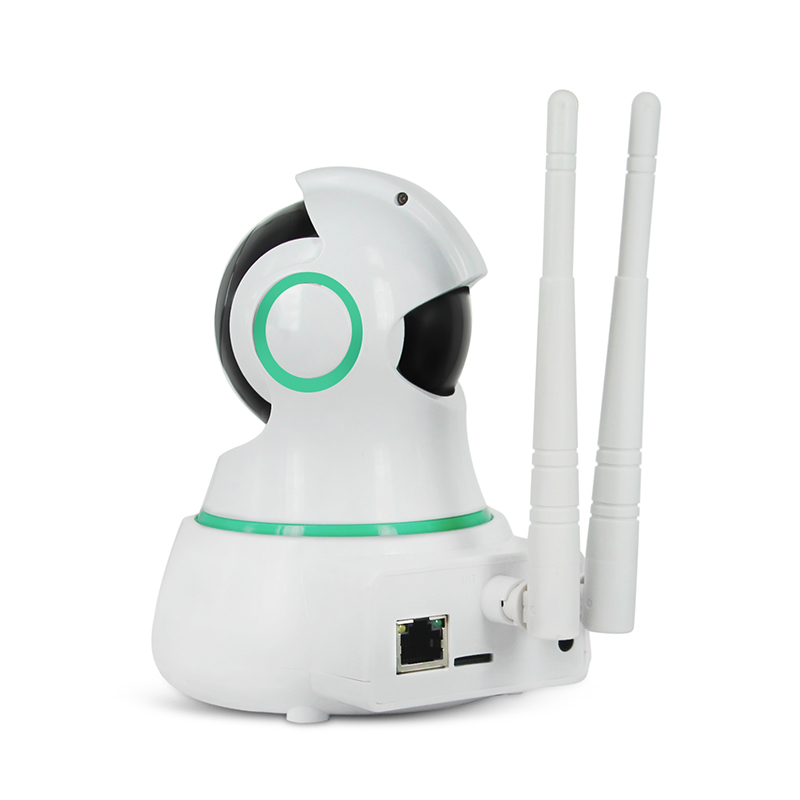

| Product name: | Internet network HD video camera |
| Product model: | IPCM0074 |
| Technical parameter | |
| Processor： | GM8136+SC2135 |
| Platform: | S.360eye.cc |
| Image sensor: | 1/3 HD CMOS 2 megapixel CMOS sensor |
| Manual video format： | MP4(1280*1080P, storage in mobile) |
| Video compression standard： | H.264(Storge in TF card ) |
| Video frame rate: | Max 25 frame |
| Video playback mode: | Mobile client |
| Audio input and output: | Input： built in microphone; output： built-in speaker |
| Built in lens： | 3.6MM |
| Focusing method： | Manual |
| Infrared night vision effect: | The LED lamp night vision 10 meters(IR-CUT automatic switching) |
| Focusing method: | Manual |
| PTZ control: | Horizontal rotation 355 degrees vertical 90 degrees |
| Local storage： | Support MicroSD inserted 128GB card, support 24 hours of video or video alarm |
| Support multiple protocols: | TCP/UDP、IP、HTTP、SMTP、DHCP、DDNS、UPNP、NTP |
| Wifi: | Support IEEE 802.11b/g/n |
| Video control: | Support |
| Motion detection: | Support |
| Alarm action： | Mobile client push screenshot |
| Firmware upgrade: | Remote upgrade can be through the network |
| User settings： | Max share to 5 users |
| Supply voltage: | DC 5V1.6A |
| Working temperature: | 0 degrees C ~55 C |
| Working environment: | Indoor |

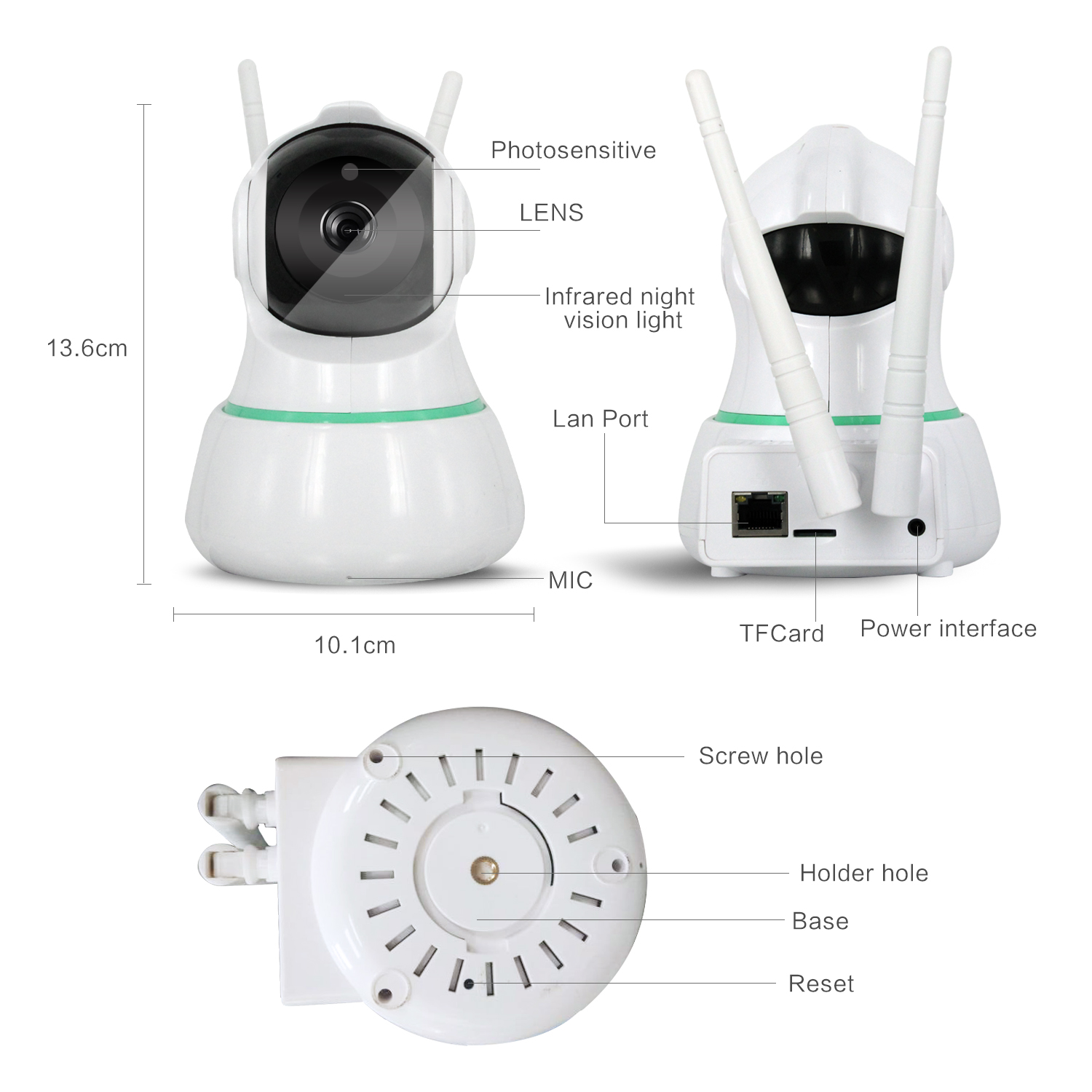

| Product size: | 10.1*10.8*13.6cm |
| Packing size: | 18.2*16.1*13.2cm |
| Net weight： | 295g |
| Gross weight/pc： | 504g |
| Carton size： | 68.5*38*51.2cm（30pcs/Carton） |
| Gross weight/carton： | 16Kg |

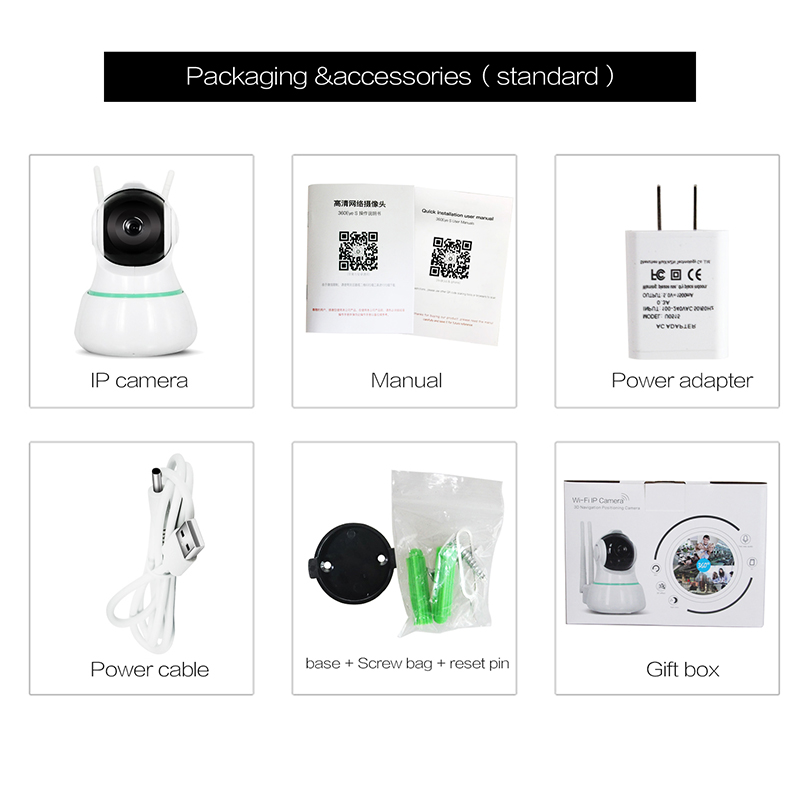

| Packaging and accessories： | 1 Color box |
| 2 Inner support | |
| 3 Power supply | |
| 4 Screw package | |
| 5 Instructions | |
| 6 Reset Pin | |
| 7 Wall fixed tray | |
