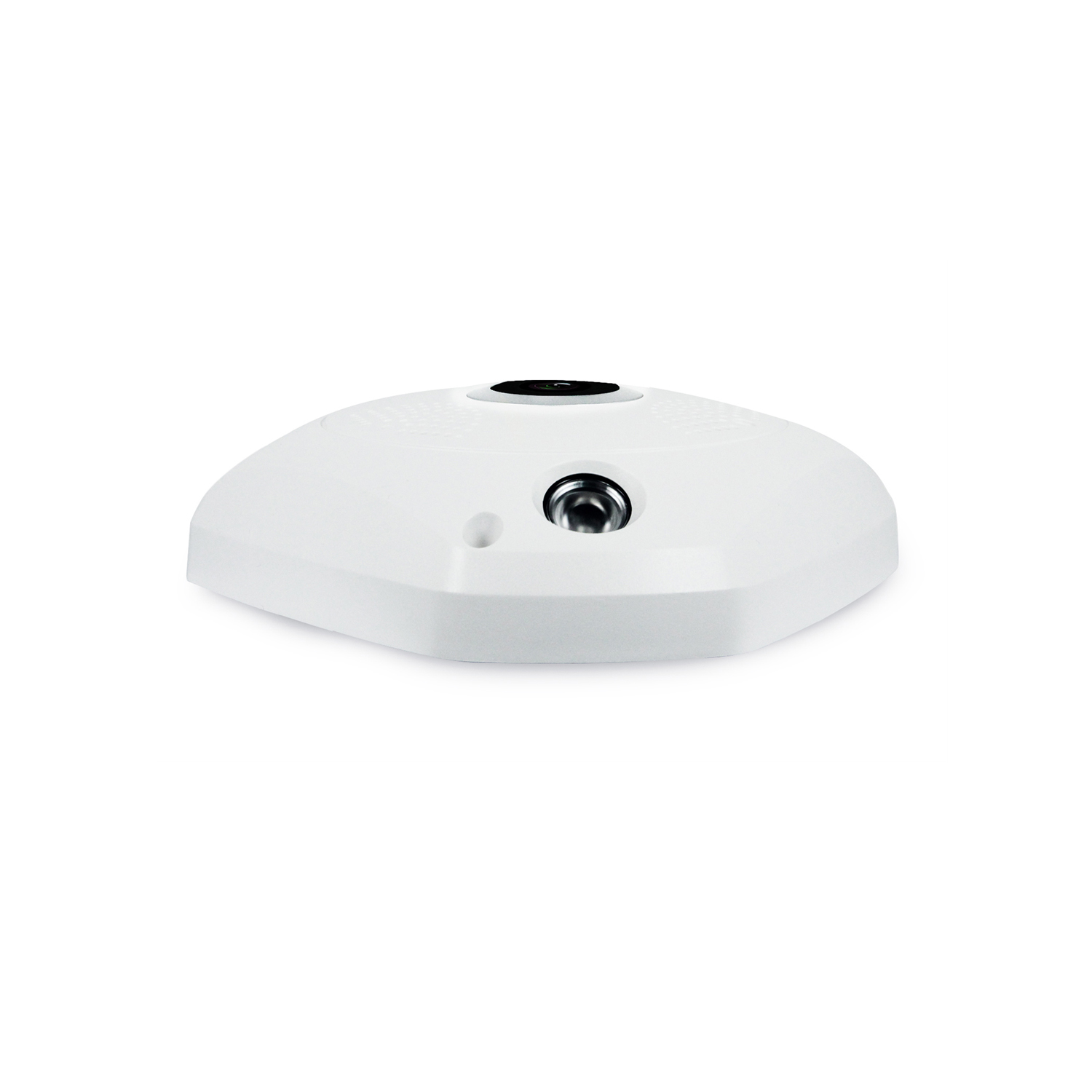

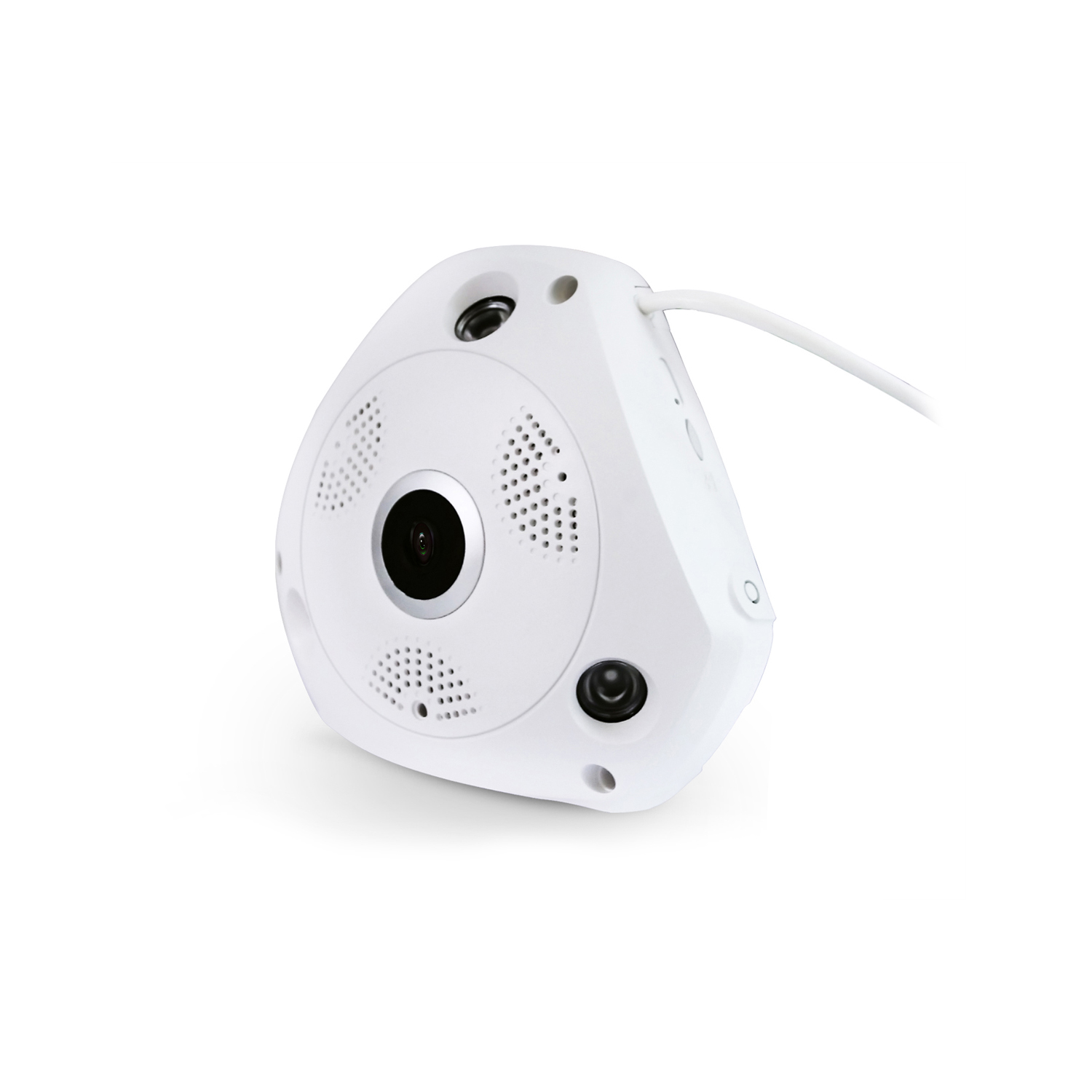

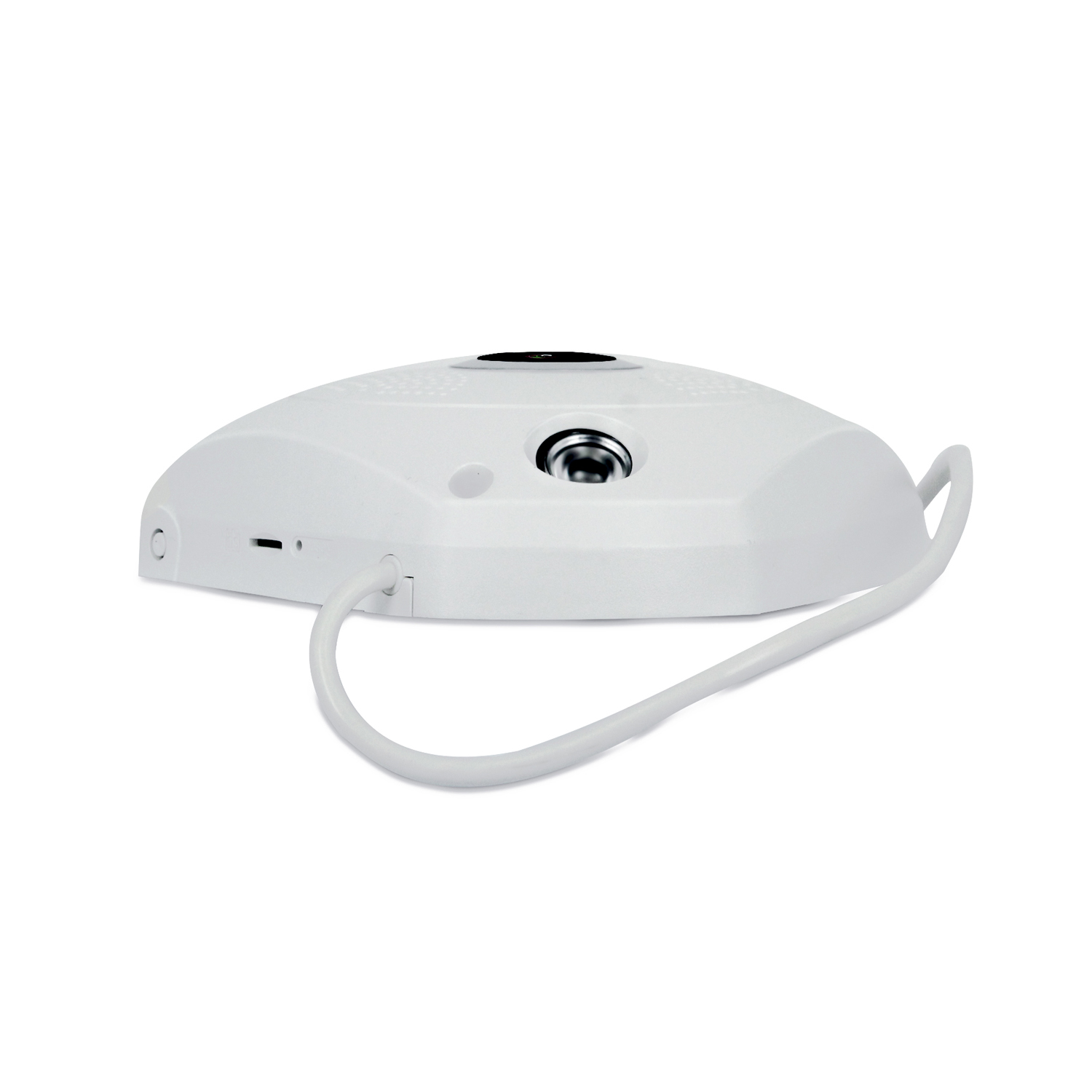

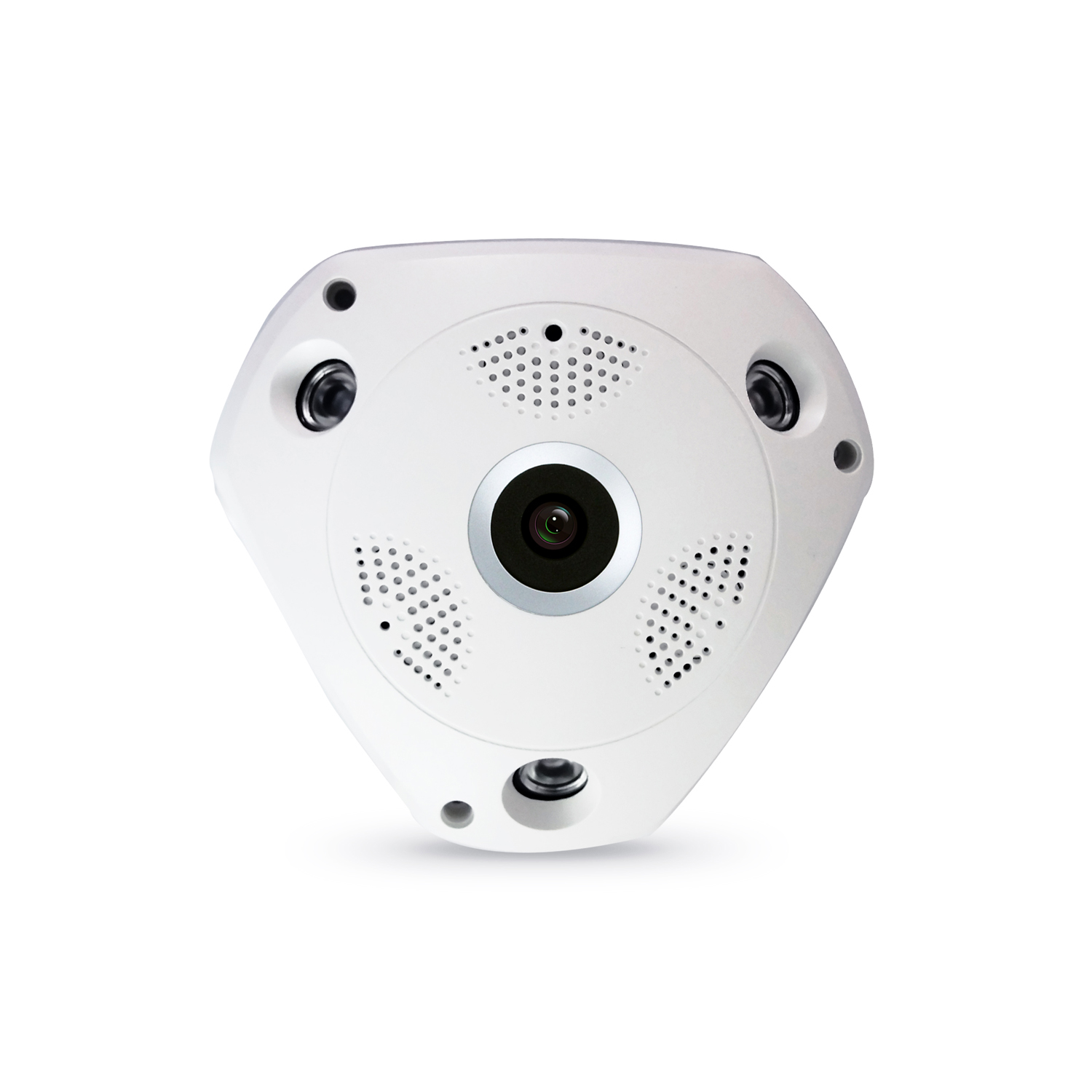

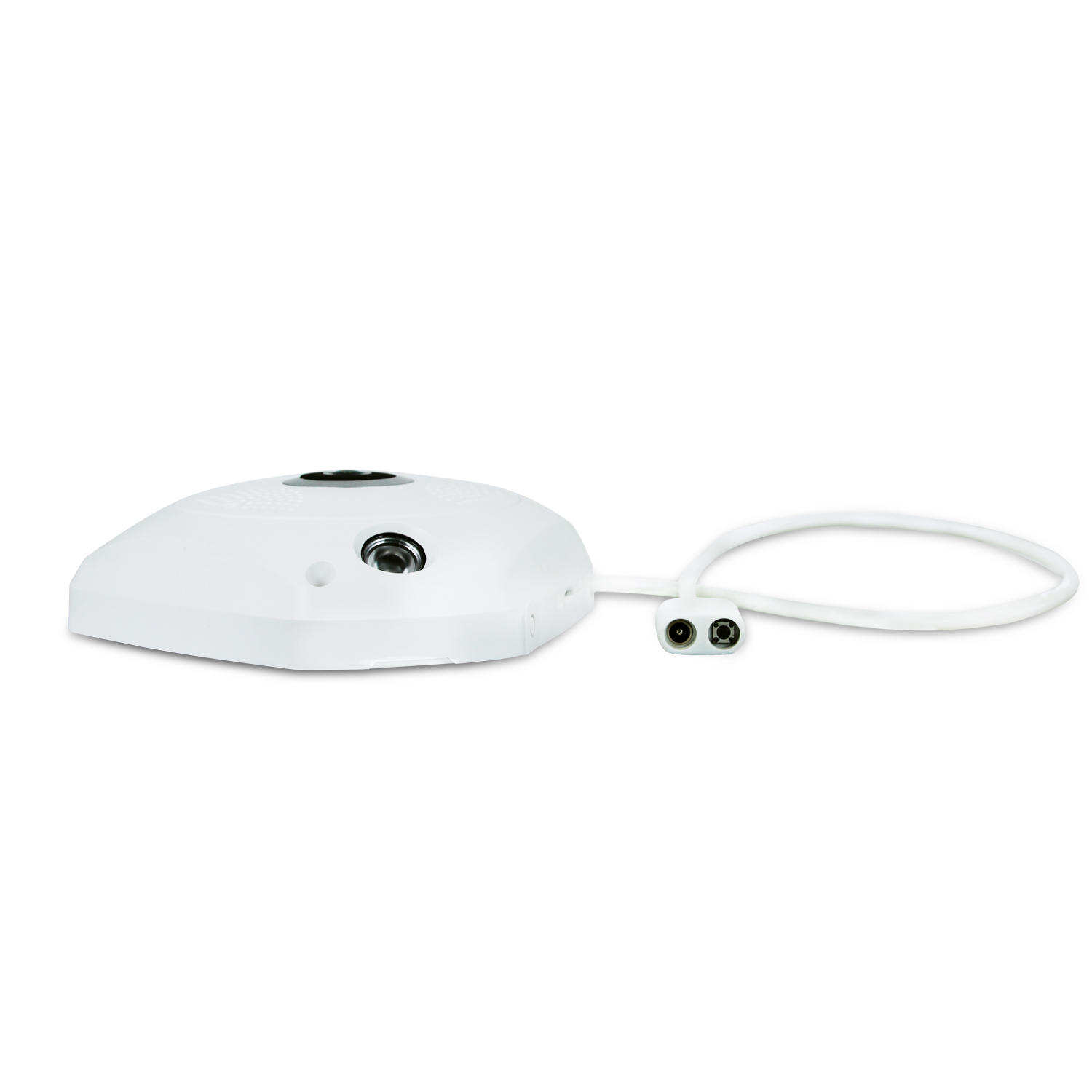

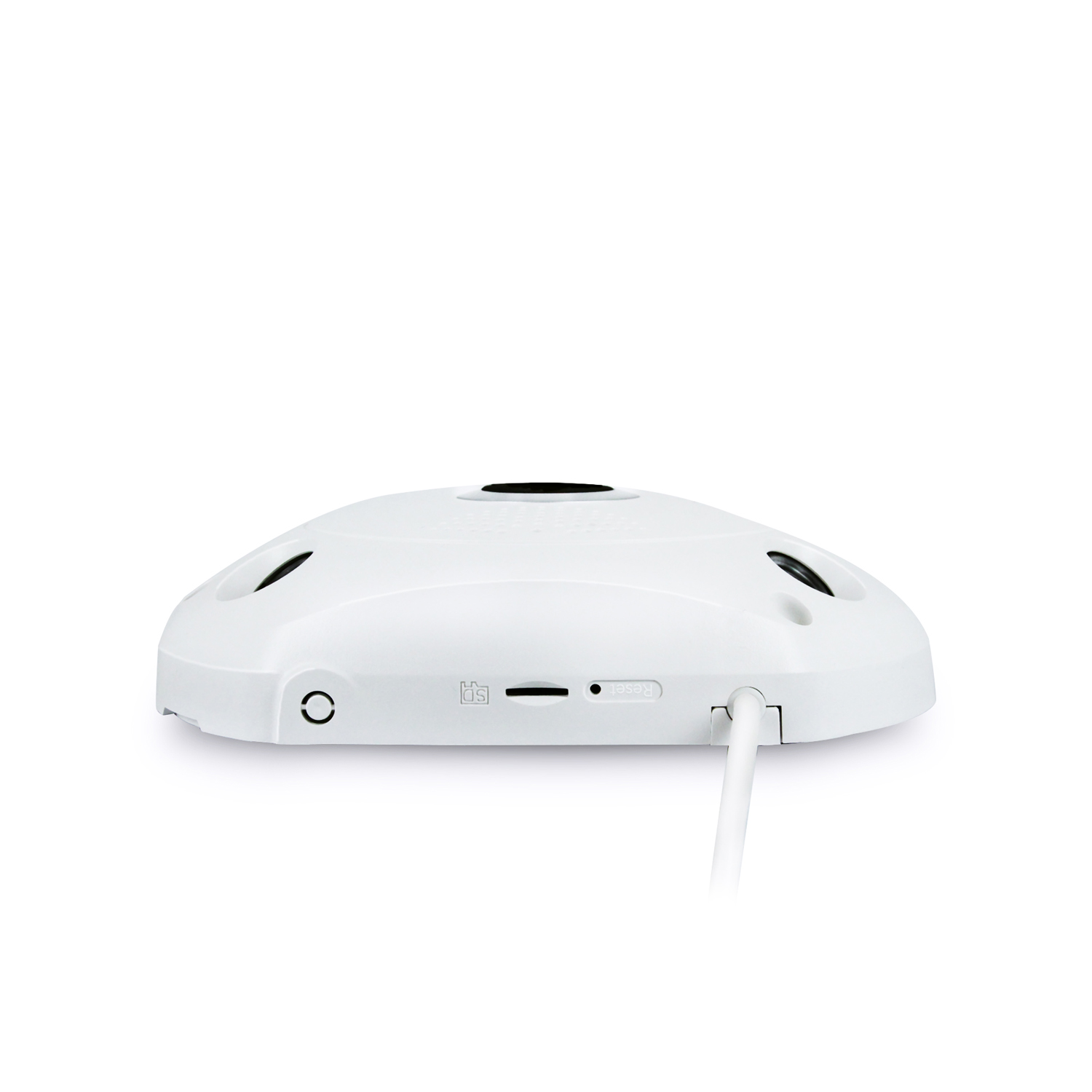

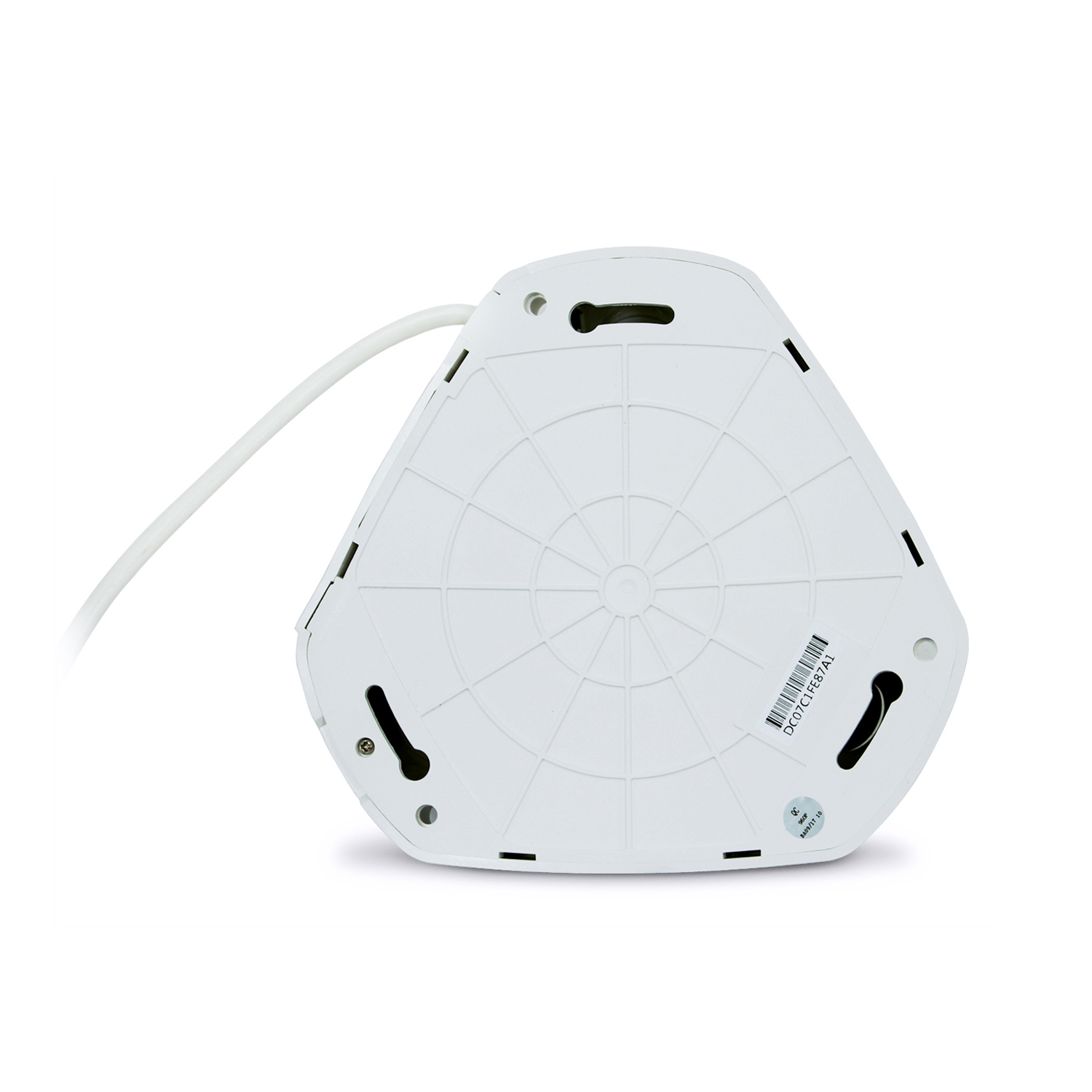

| Product name: | Internet network HD video camera |
| Product model： | IPCM0146 |
| Technical parameter | |
| Processor： | GM8136+SC3035 |
| Platform： | S.360eye.cc |
| Image sensor： | 1/3 Progressive Scan CMOS |
| Built in lens： | 1.44mm, 360 degrees fisheye lens |
| View Angle： | Horizontal 360 degrees overhead view |
| Manual video format： | MP4(1792*1536P,storage in mobile) |
| Video compression standard： | H.264(Storge in TF card ) |
| Audio compression standard： | G.711(Storge in TF card ) |
| Video frame rate： | Maximum 25 fps |
| Video playback mode： | Mobile APP |
| Audio input and output： | Input： built in microphone; output： built-in speaker |
| IR night vision： | 3pcs ir leds；Through the image contrast control switch, IR night vision distance 10 meters(IR-CUT automatic switching) |
| Focusing method： | Manual |
| Local storage： | TF card, maximum support 128G |
| Support multiple protocols： | TCP/UDP、IP、HTTP、SMTP、DHCP、DDNS、UPNP、NTP |
| WiFi protocol： | IEEE 802.11b/g/n |
| Video control： | Support |
| Motion detection： | Support |
| Alarm action： | Mobile APP push screenshot |
| User settings： | Max share to 5 users |
| System interface： | 1 TF interface、1 DC interface、1 reset button |
| Supply voltage： | 12V 1A |
| Power consumption： | <5W |
| Working temperature： | 0℃ -60℃ |
| Applicaton： | Indoor |
| Product size: | 16.5*15.3*4.3cm |
| Packing size: | 18.2*18.2*10.6cm |
| Net weight： | 253g |
| Gross weight/pc： | 477g |
| Carton size： | 55.5*38*57.5cm（30pcs/Carton） |
| Gross weight/carton： | 15.39Kg |
| Packaging and accessories: | 1 Color box |
| 2 Inner support | |
| 3 Instructions | |
| 4 Power supply | |
| 5 Screw package | |
