| price | name | Wireless video to the doorbell |
| model No memory card or battery No indoor unit | ||

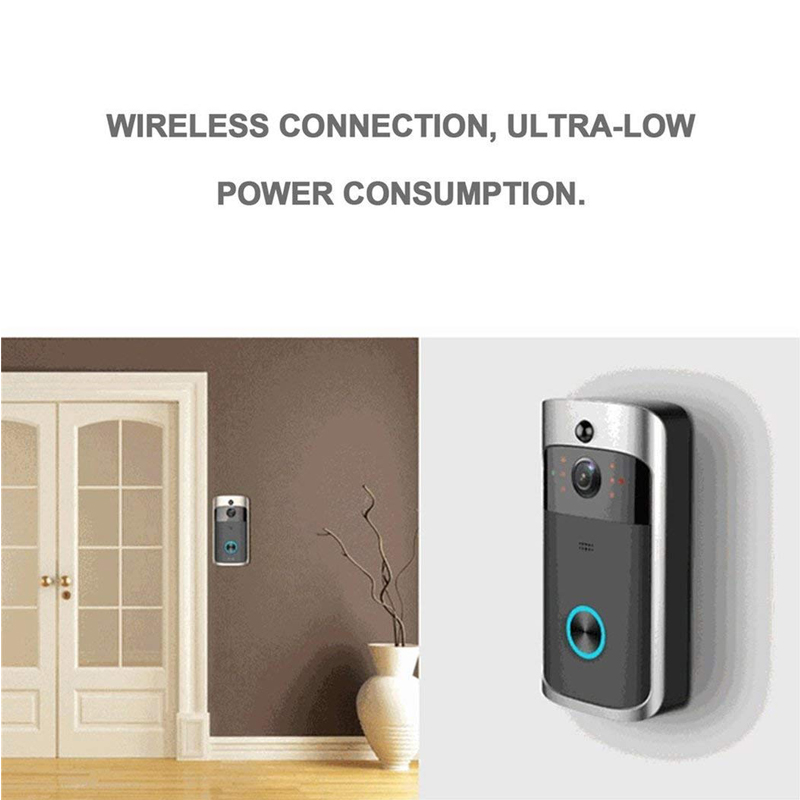

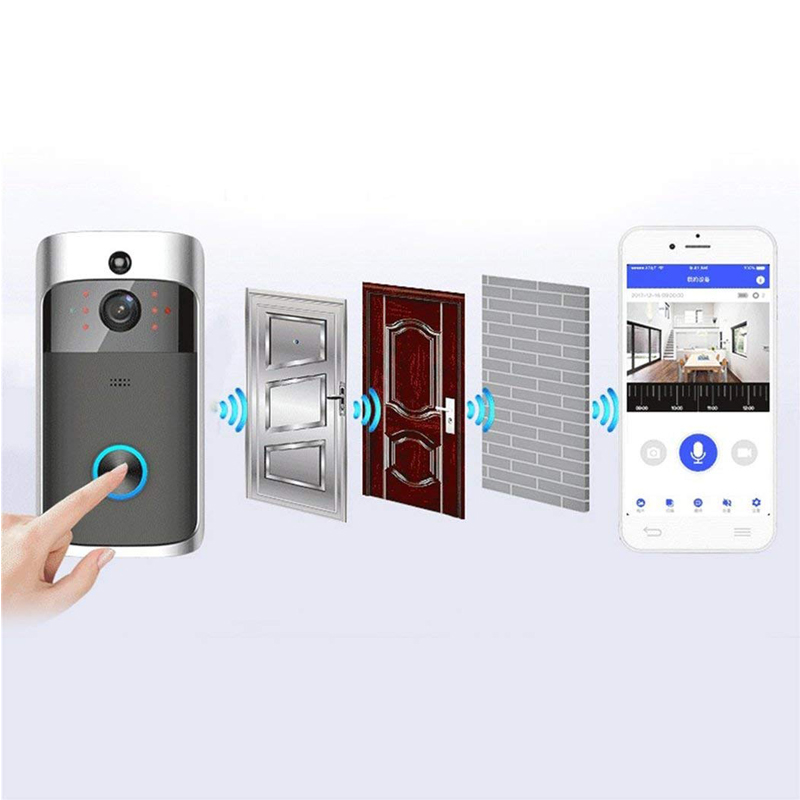

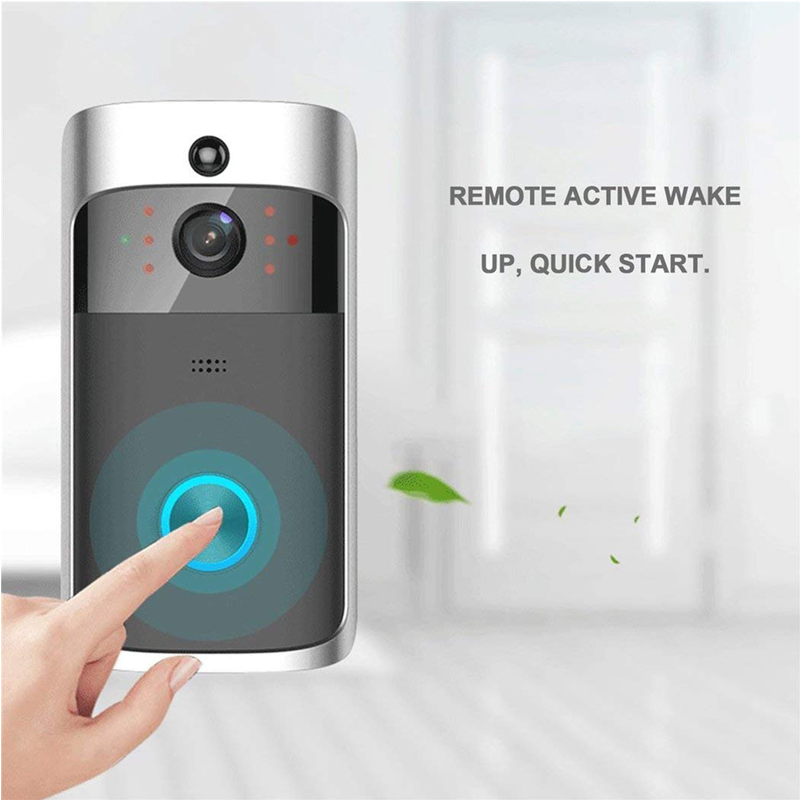

| describe | features | wireless connection，Ultra-low power consumption，Remote active awakening，Quick start |
| use | Guests will be able to make video voice calls and take short videos. The owner will not need to open the door to know the information | |
| Wake up the way | The doorbell button awakens,PIR body detection wake up,Mobile phone call | |
| Alarm push | Push for 1 second | |
| operating system | Number of users online | Multiple users are online simultaneously |
| Dynamic DNS | Bring your own dynamic domain name | |
| processor | A powerful, high-performance, programmable media HiSilicon processor with built-in ARM926 @max. 440MHz and high-speed video coprocessor | |
| collect | CCD | 1/4 inch 720p scan CMOS sensor |
| Sensor performance | Support automatic white balance, automatic gain control, automatic backlighting compensation | |
| SNR | ≥39dB | |
| LUX | 0.8Lux/F1.４（Color pattern）,0.3Lux/F1.4（Black and white pattern） | |
| Lens/visual Angle | 1.7mm@F2.４/166° | |
| LED | Double filter automatic switching, six 850 - nm Φ 28 mil high power infrared lamp, night vision 10 meters | |
| IR control | IR opens night vision，Automatic detection of infrared and ICR；IR shuts the night vision function off the infrared and the ICR is fixed in daily viewing mode | |
| video | Compression standard | H.264 Main Profile/H.264 Baseline Profile/MJPEG/JPEG Baseline |
| Video coding | More stream：720P/24fps+VGA/30fps+QVGA/30fps+720P @1fsJPEG snap | |
| resolution | 1080*720 | |
| audio | input | 1 channel built-in - 48dB microphone |
| output | Built-in speaker (8 Ω 1 w) | |
| interphone | Two - way voice - speak, bring back the echo cancellation | |
| Compression standard/ code rate | ADPCM/32kbps | |
| network | Network protocol | TCP/IP,HTTP,TCP,UDP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPnP,RTSP，P2P |
| wireless network | 802.11b/g/n | |
| Wireless network security | WPS Security encryption | |
| wireless connection | One-button WIFI configuration | |
| video | Video mode | Mobile detection video, doorbell button trigger video, manual video |
| storage | The TF card stores the maximum support for 32gb | |

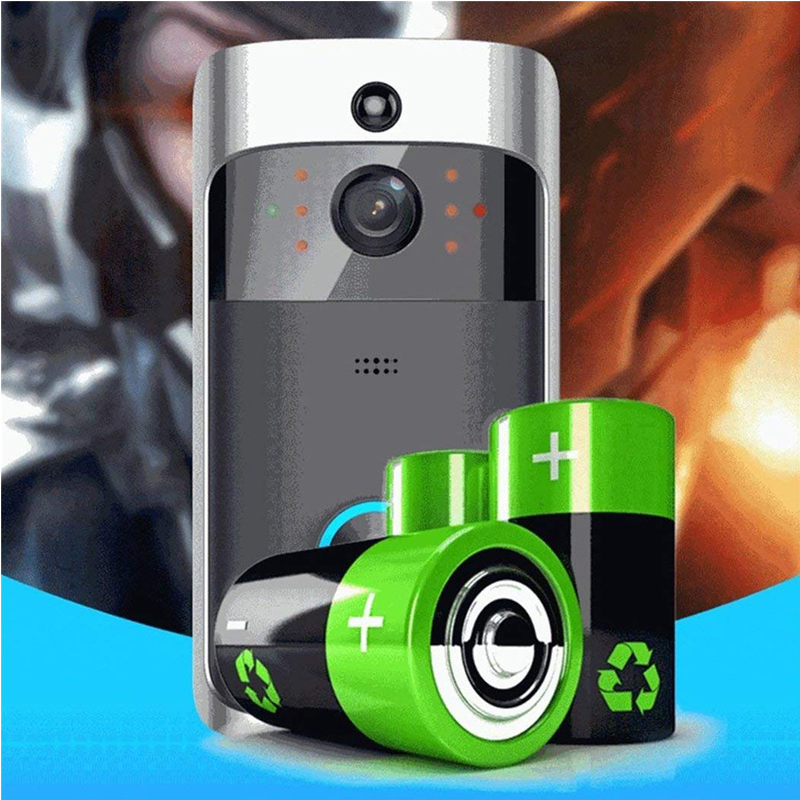

| other | power | Battery power supply two section 18650 core international general |
| Power consumption | Standby current 200 uA working current 170MA | |
| work environment | Working temperature: - 10 ~ 50 ℃, humidity is < 95% | |
| installation | Door wall mounting | |
| material | ABS | |
| Product size | 144* 74.5*32.3mm | |
| product weight | 190g／No battery | |
| Packing size | 100*175*77.5mm |
