| system | Processor | GK7102 |
| P2P (Free) | Support QR code scanning to view | |

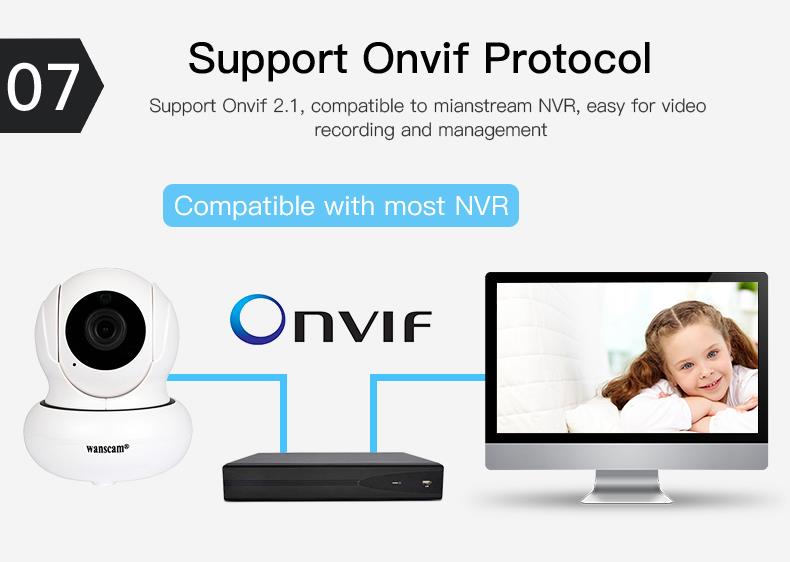

| Onvif Protocol | Support ONVIF2.1 Protocol | |
| Multi-device function | Support 12 language remote surveillance, record, alarm, wifi setting etc. | |
| PC client | Support remote multi-devices monitor, record, alarm etc;Support windows and mac os | |
| Cell Phone View | Self R&D APP, Support Iphone,Android smart Phone | |
| TF Card Record | Support Max 64G TF card .Support the scheduled record,scheduled snapshot,Support Intelligent record playback via browser | |
| Lens | Lens Type | Lens Standard : 3.6 mm |
| IR-CUT | Build-in IR CUT, no color cast,auto switch when IR on | |
| Video | Image Compression | H.264/MJPEG |
| Sensor | 1/4 Cmos 1MP | |
| Video Parameters | Brightness, Contrast,Saturation,Exposure,sharpness,VerticalAnd Horizontal can be adjusted | |
| Image Frame Rate | 50Hz:15fps/60HZ:15fps (1280×720) | |
| First Stream | 720P-(1280x720) | |
| Second Stream | VGA-(640x352),(320x176) | |
| Audio | Compression format | G.726/G.711（G.711 Default） |
| Audio In | Built in Mic,also external supported | |
| Audio Out | Built in Speaker,also external supported | |
| Night Vision | Night Visibility | 6 Φ5 IR LEDs, Night visibility up to 10 meters |
| LUX | 0 LUX | |
| Pan/Tilt | Preset | Support 8 Preset Positions |

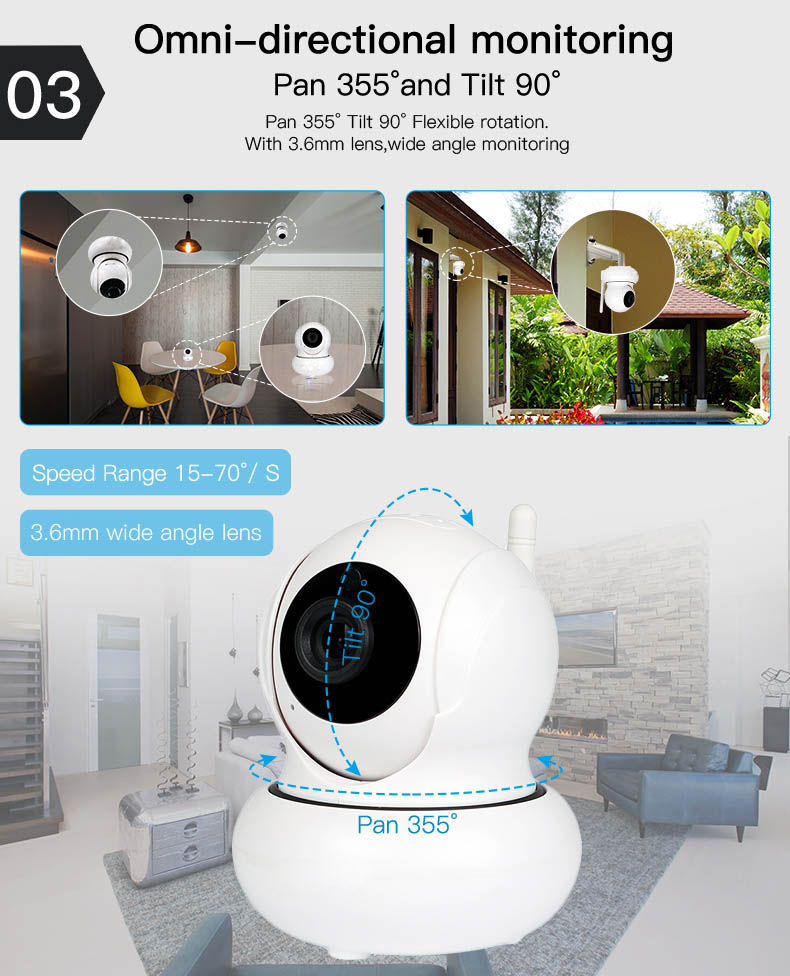

| Rotation Angle | Pan:355°, Tilt: 90° | |
| Rotation Speed | Pan: Speed Range 5-30°/ S; Tilt: Speed Range 5-50°/ S; | |
| Alarm | Motion Detect | Support 4 Independent detection areas(Sensitivity can be adjustd 1-100） |
| Alarm Action | Support Email Photo Alert,Snapshot and Record uploaded to FTP or TF Card | |
| Network | Ethernet Interface | One 10/100Mbps RJ-45 |
| Supported Protocol | TCP/IP，HTTP，TCP，ICMP，UDP，ARP, IGMP，SMTP，FTP，DHCP，DNS，DDNS，NTP，UPNP，RTSP etc. | |
| Access agreement | Support ONVIF2.1 Protocol | |
| IP Mode | Dynamic IP address, static IP address, PPPOE | |
| Online Visitor |
Support Max 6 visitors at the same time (First Stream:3 visitors;Second Stream:3 visitors） |
|
| Supported OS | Support Microsoft Win XP/Win7/Win8/ win10/Mac OS. | |
| Browser | Support Internet Explorer8-11 ,FireFox,Google Browser, etc | |

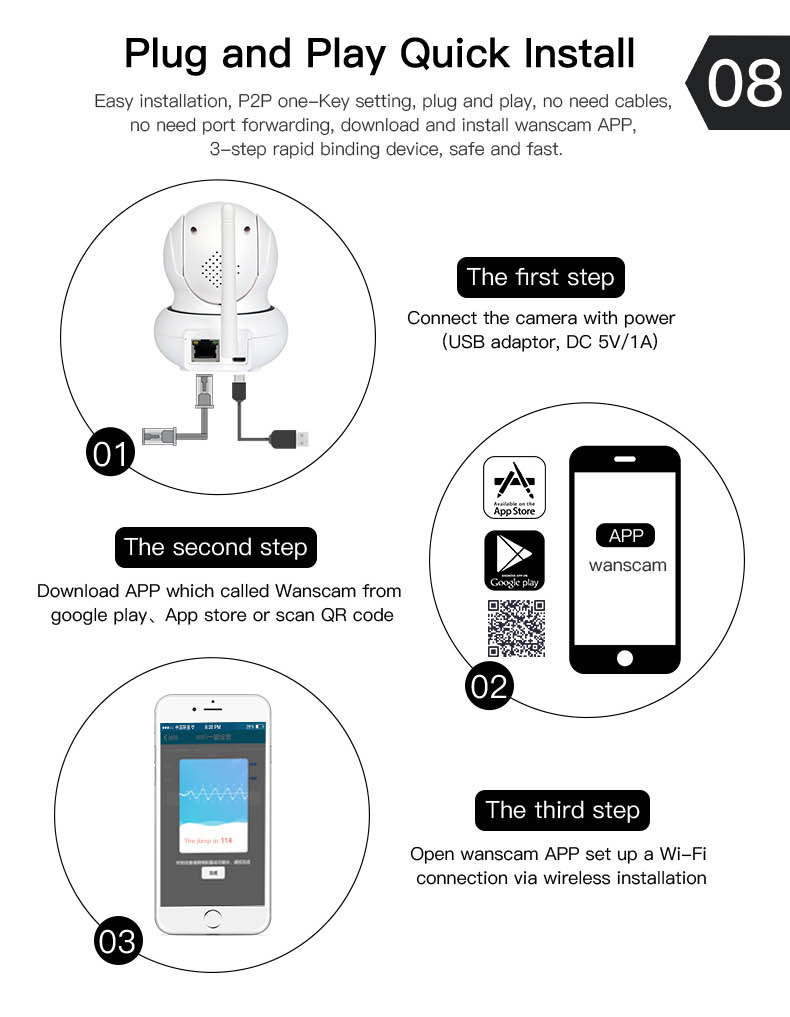

| One key setting Function | Support one key setting function connect WIFI | |
| Wireless Standard | WIFI, 802.11b/g/n | |
| Others | OSD | Support the OSD name, date and time info superposition（Open/Off） |
| Product Type | Cartoon Robot/ Indoor use | |
| Color | White; | |
| Power | DC5V 1A | |
| Working Temperature | -10~50 °C | |
| Working Humidity | 95% RH | |

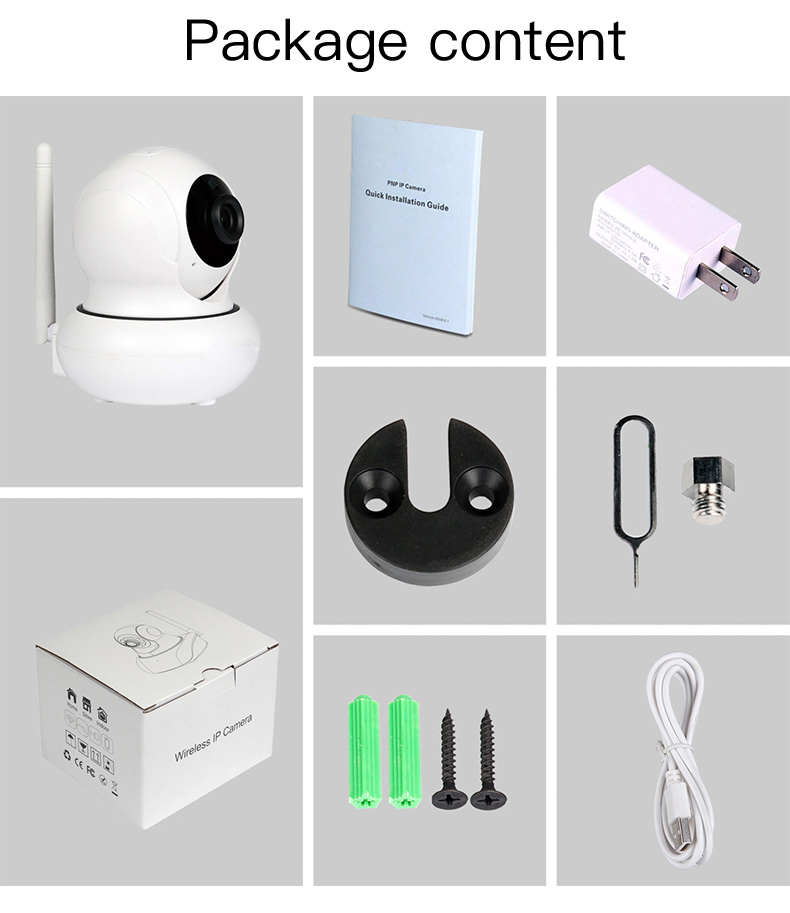

| Accessories | Adapter,User manual,Bracket,Screws,Ethernet Cable |
