| Product name: | Internet network HD video camera |
| Product model： | IPCM0236 |
| Technical parameter | |
| Processor： | T10L+SC1235 |
| Platform： | 360eyes.club |
| Image sensor： | 1/3 Progressive Scan CMOS |

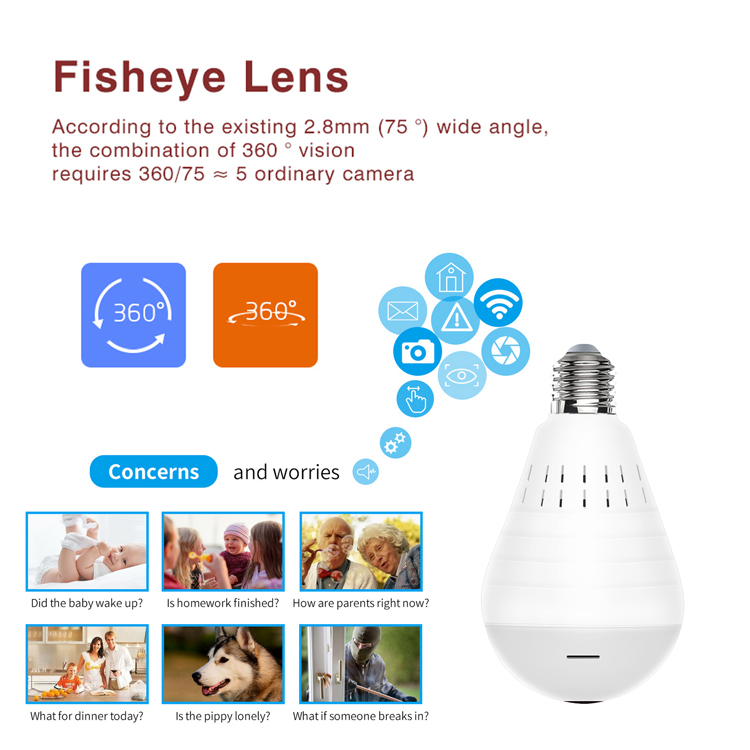

| Built in lens： | 1.44mm,360 degrees fisheye lens |
| View Angle： | 360 degrees |
| Manual video format： | MP4(1280*960P,storage in mobile) |
| Video compression standard： | H.264(Storge in TF card ) |
| Audio compression standard： | G.711(Storge in TF card ) |
| Video frame rate： | Maximum 25 frames |
| Video playback mode： | Mobile client |

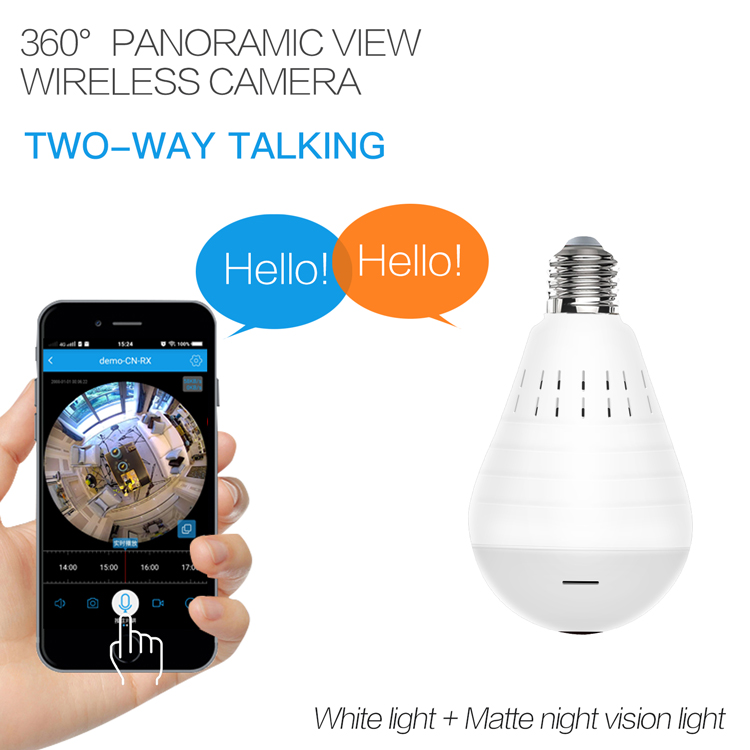

| Audio input and output： | Input： built in microphone; output： built-in speaker |
| Night Vision： | Ir leds：3pcs ir leds，power consumption 1W； Automatic mode： control lights switch by the image contrast(IR-CUT automatic switching); Manual mode： manually adjust the brightness of the light on the APP (IR-CUT automatic switching) |
| Illumination： | 3pcs White LED，power consumption 1W |
| Focus Mode： | Manual |
| Local storage： | TF card, maximum support 128G |
| Cloud Storage： | Support |
| Support multiple protocols： | TCP/UDP、IP、HTTP、SMTP、DHCP、DDNS、UPNP、NTP |
| WiFi protocol： | IEEE 802.11b/g/n |
| Video control： | Support |
| Motion detection： | Support |
| Alarm action： | Mobile client push screenshot |
| User settings： | Max share to 5 users |
| System interface： | E27（Europe），TF interface |
| Supply voltage： | AC 100～240V |
| Power consumption： | <5W |
| Working temperature： | 0℃ -60℃ |
| Applicaton： | Indoor |

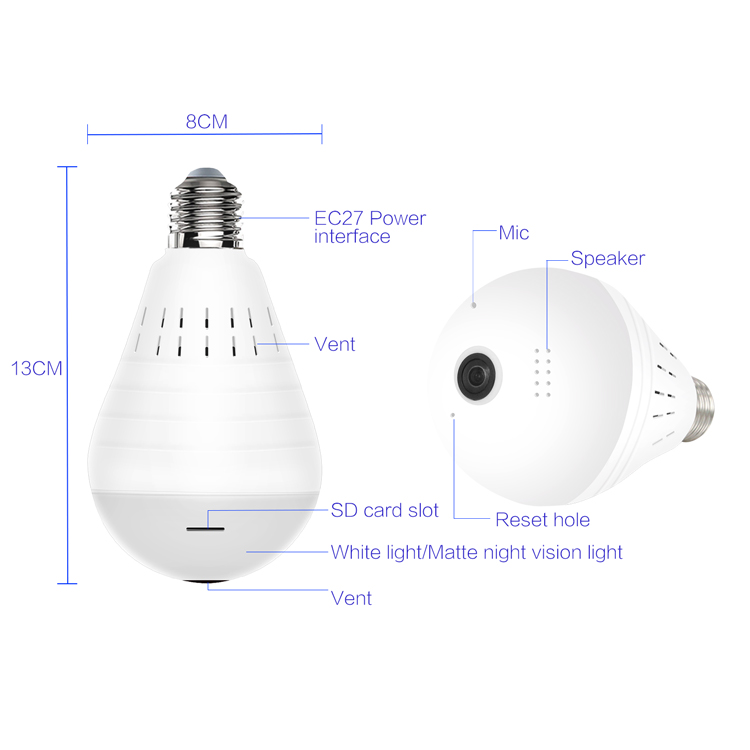

| Product size: | 7.5*7.5*12.8cm |
| Packing size: | 15.3*9.6*8.8cm |
| Net weight： | 93g |

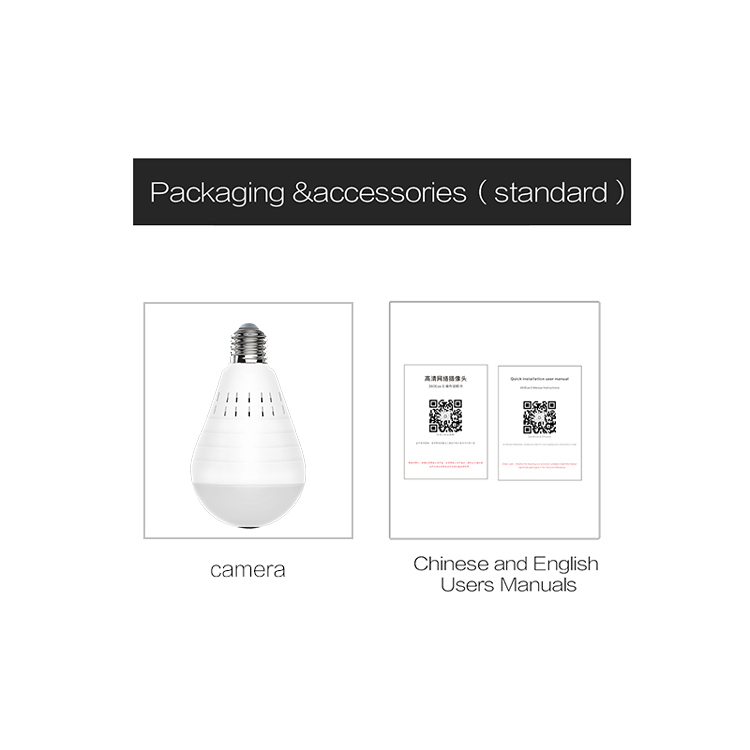

| Packaging and accessories： | 1 Color box |
| 2 Inner support | |
| 3 Instructions | |
