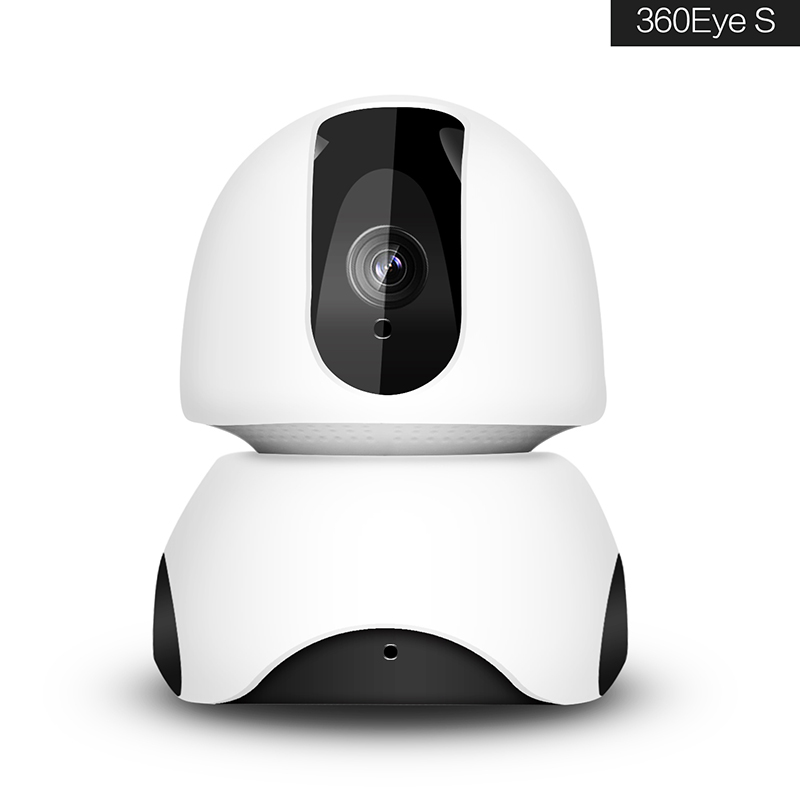

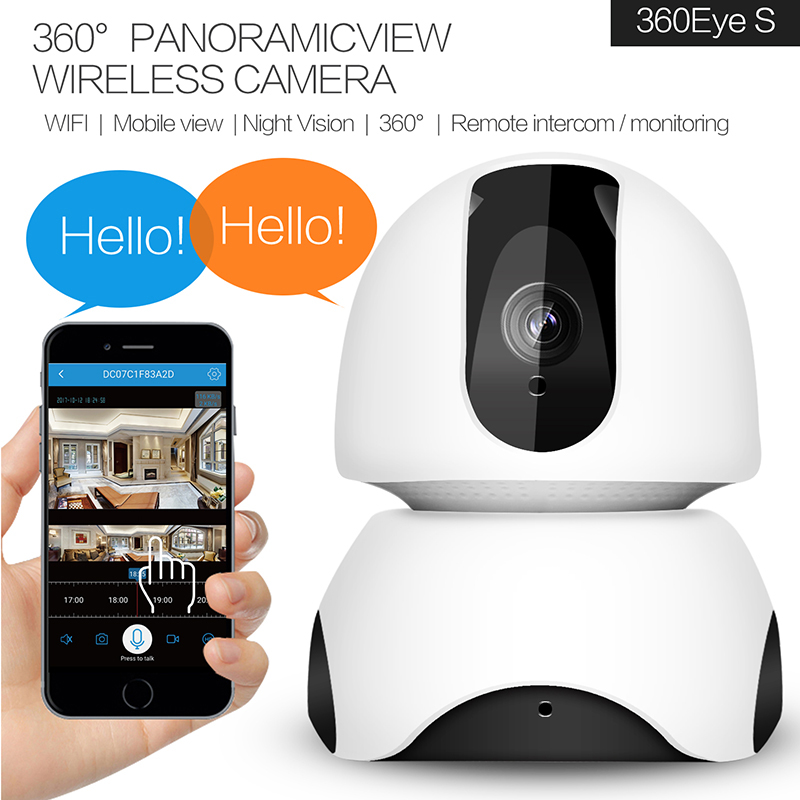

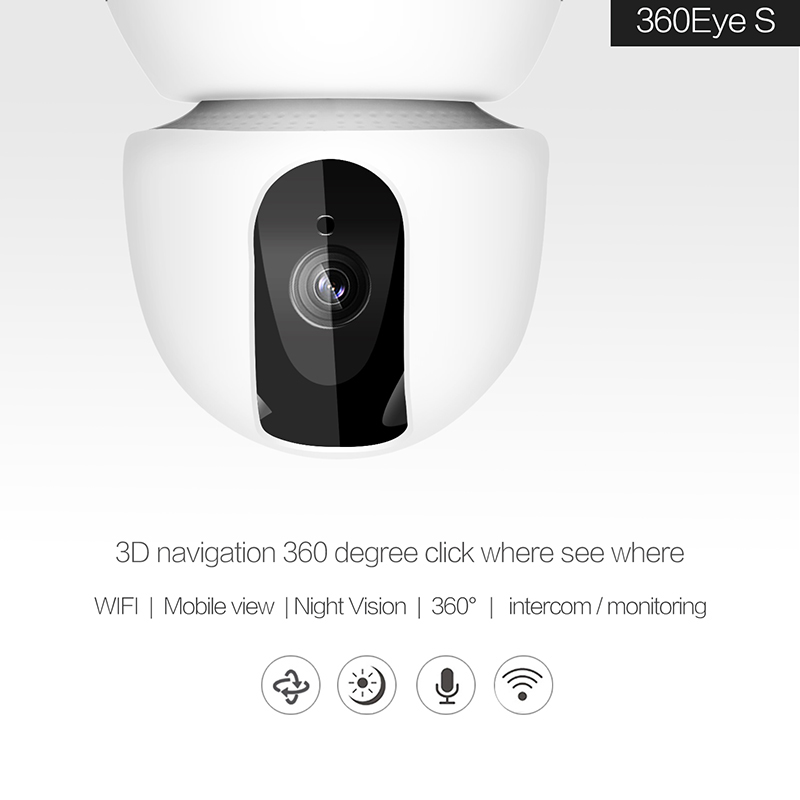

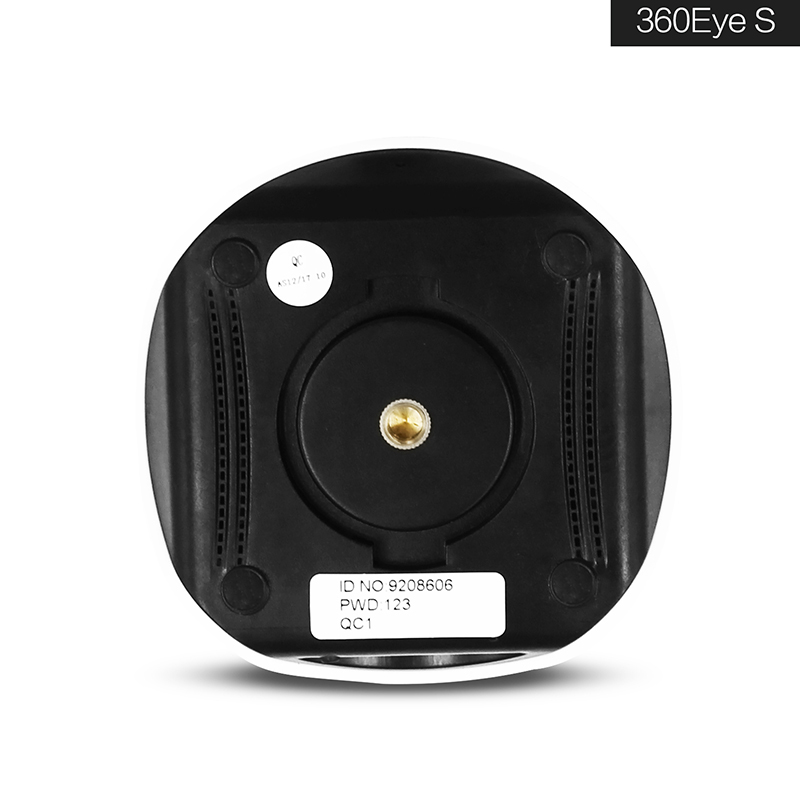

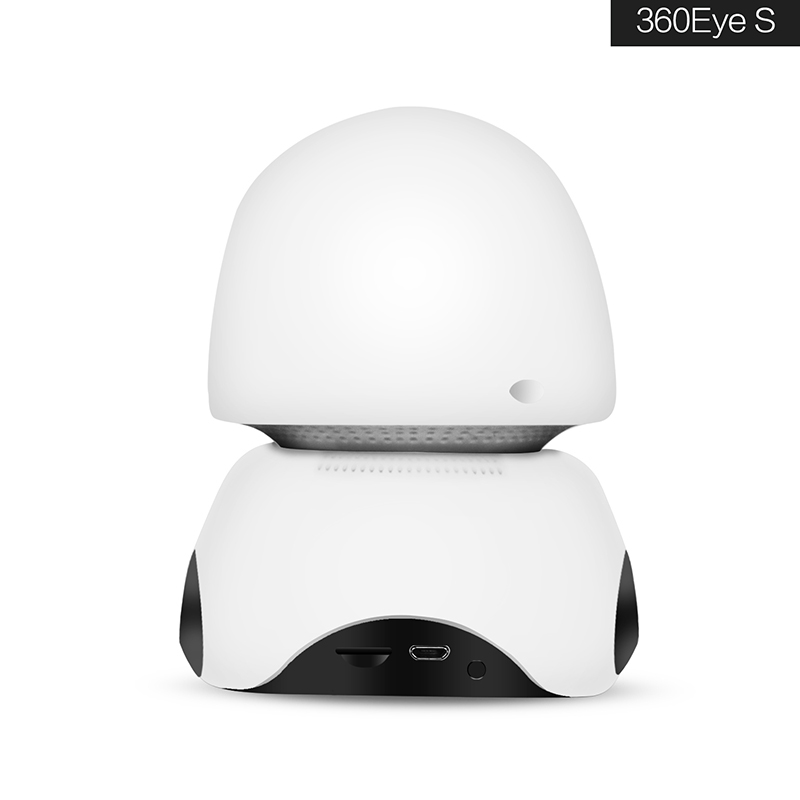

| Product name: | Internet network HD video camera |
| Product model: | IPCM0228 |
| Technical parameter | |
| Processor: | T10L+SC1245 |
| Platform: | 360eyes.club |
| Operating system: | Embedded LINUX operating system |
| Image sensor: | 1/4 HD CMOS 1 megapixel CMOS sensor |
| Video format: | FHD(1080*720P),D1(768*576) |
| Video coding: | H.264 |
| Video frame rate: | Max 15 frame |
| Video playback mode: | Mobile client |
| Audio input and output: | Input:built-in microphone 38DB; output:built-in 8Ω2W speaker |
| Infrared night vision effect: | The LED lamp night vision 10 meters(IR-CUT automatic switching) |
| Minimum illumination: | 0.1Lux/F1.2 |
| PTZ control: | Horizontal rotation 340 degrees vertical 70 |
| Local storage： | Support MicroSD inserted 128GB card, support 24 hours of video or video alarm |
| Cloud Storage： | Support |
| Support multiple protocols: | TCP/UDP、IP、DHCP、NTP |
| Wifi: | Support IEEE 802.11b/g/n |
| Image rotation: | Mirror / upside down |
| Video control: | Support |
| Motion detection: | Support |
| Firmware upgrade: | Remote upgrade can be through the network |
| Supply voltage: | DC 5V1.6A |
| Working temperature: | 0 degrees C ~55 C |
| Working environment: | Indoor |
| Product size: | 8.7*8.7*10.8cm |
| Packing size: | 9.0*9.0*16.4cm |
| Net weight： | 230g |
| Gross weight/pc： | 380g |
| Carton size： | 48.2*48.4*36cm（50pcs/Carton） |
| Gross weight/carton： | 20.02Kg |
| Packaging and accessories： | 1 Color box |
| 2 Inner support | |
| 3 Power supply | |
| 4 Screw package | |
| 5 Instructions | |
| 6 Wall fixed tray | |
