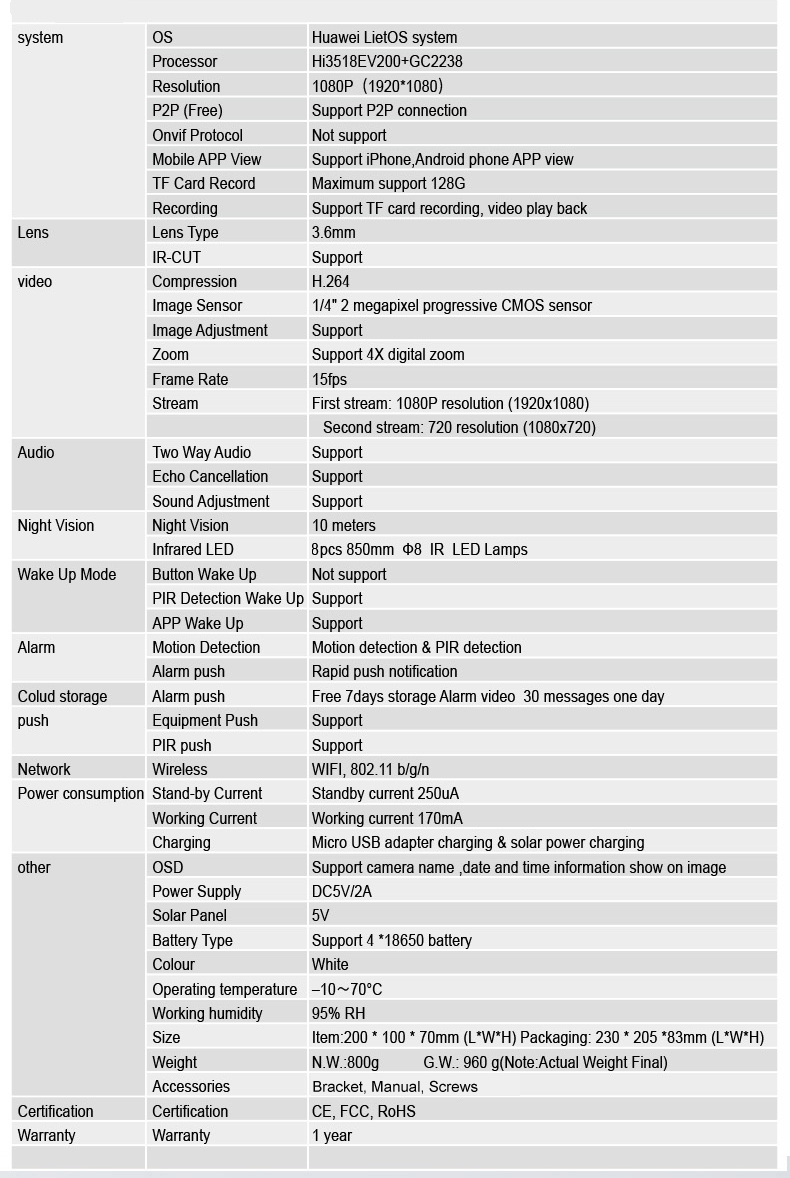

system
|
OS
|
Huawei LietOS system
|
|
Processor
|
Hi3518EV200+GC2238
|
|
Resolution
|
1080P（1920*1080）
|
|
P2P (Free)
|
Support P2P connection
|
|
Onvif Protocol
|
Not support
|
|
Mobile APP View
|
Support iPhone,Android phone APP view
|
|
TF Card Record
|
Maximum support 128G
|
|
Recording
|
Support TF card recording, video play back
|
|
Lens
|
Lens Type
|
3.6mm
|
|
IR-CUT
|
Support
|
|
video
|
Compression
|
H.264
|
|
Image Sensor
|
1/4" 2 megapixel progressive CMOS sensor
|
|
Image Adjustment
|
Support
|
|
Zoom
|
Support 4X digital zoom
|
|
Frame Rate
|
15fps
|
|
Stream
|
First stream: 1080P resolution (1920x1080)
|
|
Second stream: 720 resolution (1080x720)
|
|
Audio
|
Two Way Audio
|
Support
|
|
Echo Cancellation
|
Support
|
|
Sound Adjustment
|
Support
|
|
Night Vision
|
Night Vision
|
10 meters
|
|
Infrared LED
|
8pcs 850mm Φ8 IR LED Lamps
|
|
Wake Up Mode
|
Button Wake Up
|
Not support
|
|
PIR Detection Wake Up
|
Support
|
|
APP Wake Up
|
Support
|
|
Alarm
|
Motion Detection
|
Motion detection & PIR detection
|
|
Alarm push
|
Rapid push notification
|
|
Colud storage
|
Alarm push
|
Free 30 cloud messages per day (7 days)
|
|
push
|
Equipment Push
|
Support
|
|
PIR push
|
Support
|
|
Network
|
Wireless
|
WIFI, 802.11 b/g/n
|
|
Power consumption
|
Stand-by Current
|
Standby current 250uA
|
|
Working Current
|
Working current 170mA
|
|
Charging
|
Micro USB adapter charging & solar power charging
|
|
other
|
OSD
|
Support camera name ,date and time information show on image
|
|
Power Supply
|
DC5V/1A
|
|
Solar Panel
|
5V
|
|
Battery Type
|
Support 4 *18650 battery
|
|
Colour
|
White
|
|
Operating temperature
|
–10～70°C
|
|
Working humidity
|
95% RH
|
|

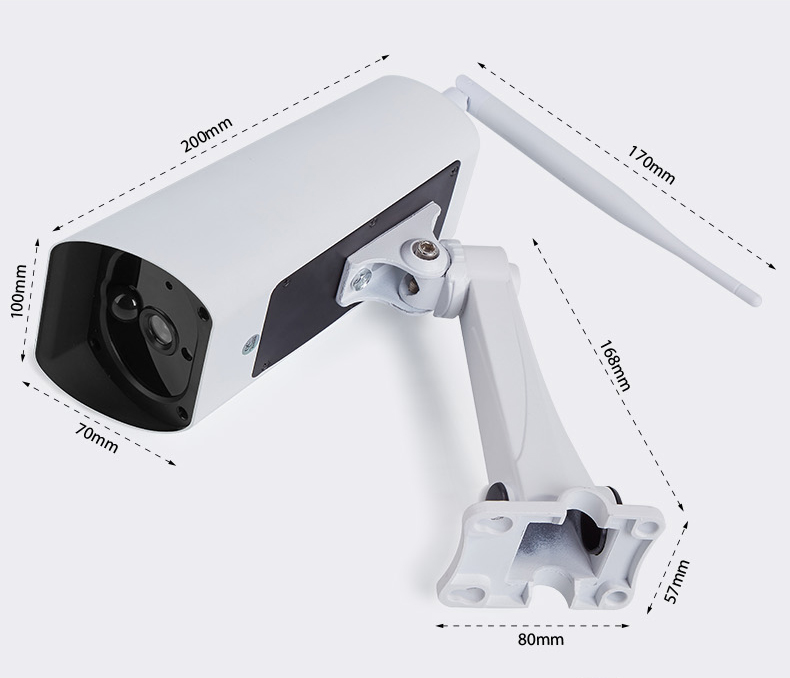

Size
|
Item:200 * 100 * 70mm (L*W*H) Packaging: 230 * 205 *83mm (L*W*H)
|
|
Weight
|
N.W.:800g G.W.: 960 g(Note:Actual Weight Final)
|
|

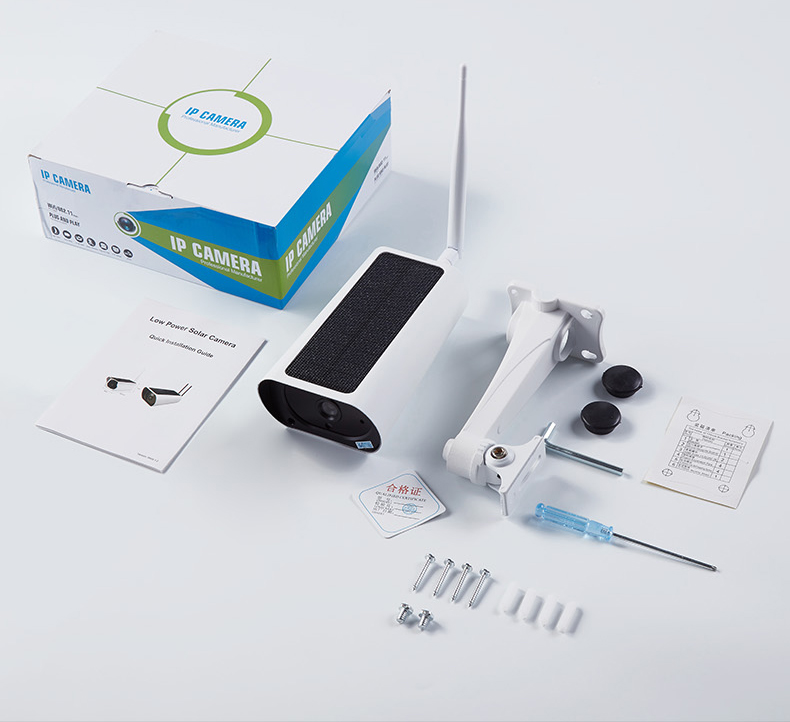

Accessories
|
manual, screws,bracket
|
