| Specification parameter | ||
| system | Main Processor | GK7102 |
| image sensor | GC1034/GC2053 | |
| Operation System | Embedded LINUX OS system | |
| Video | High Definition | 720P/1080P |
| Video Compression | Smart H.264+ | |
| Rotation angle | Horizontal:180° ; vertical: 180° | |
| Object tracking | Support | |
| low illumination | 0.1LUX/F1.2 | |
| picture Capture | Support | |
| Video Flip | Support | |
| Audio | Coding standard | G.711 |
| Two-way Speech | Support | |
| Record management | Video file size | 2.5GB-4.5GB/Day |
| Record Mode | Manual record, motion detection record, scheduled record, alarm record | |
| Video storage | TF Card/Cloud | |
| playback, back up | Support | |
| Alarm trigger | Video Push、Alarm recording、screen shot capture ,sending Email | |
| Network | Network Interface | 1*RJ45 , 10/100M10-100 Base-T, self-adaptable Ethernet port |
| WIFI | 802.11b/g/n | |
| Bitstream | Three Stream | |
| Network Protocol | Support TCP/IP、RTSP、ONVIF, etc | |
| transmission mode | P2P、Smart Cloud Sever | |
| WIFI connection | Sweep QR code，Network Cable connection，AP Hotspot Addition | |

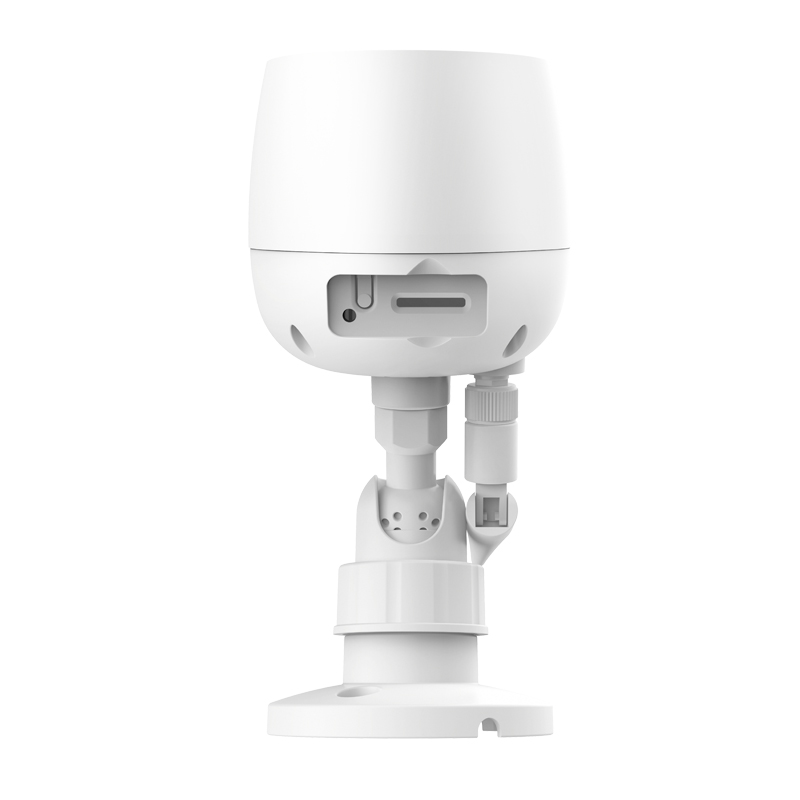

| extend | TF Card | Maximum support 128GB TF card |
| Reset key | Support | |
| power supply | Power | DC 12V 1A |
| Power consumption | 10W | |
