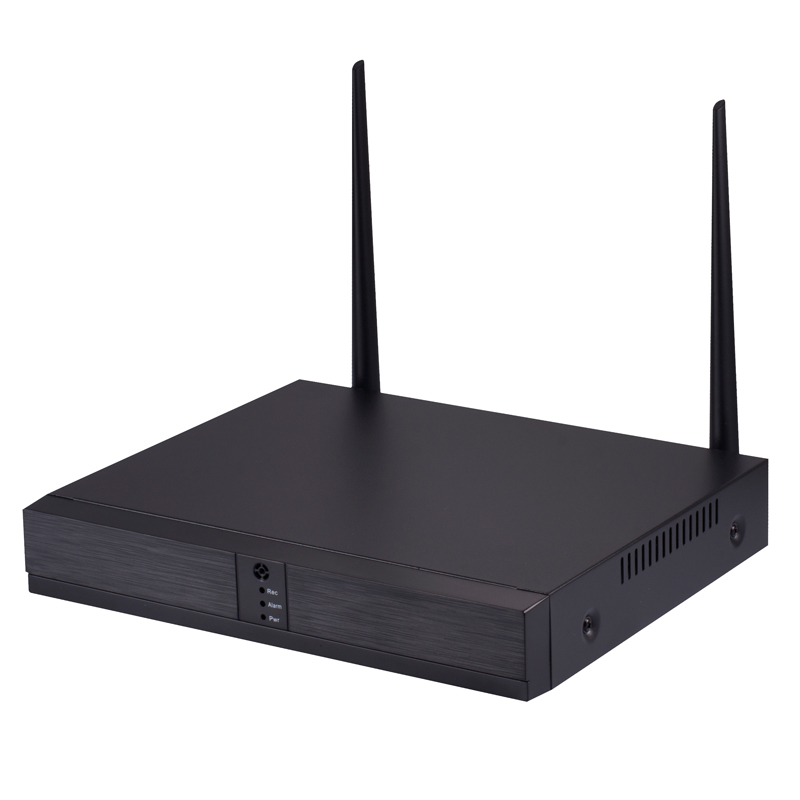

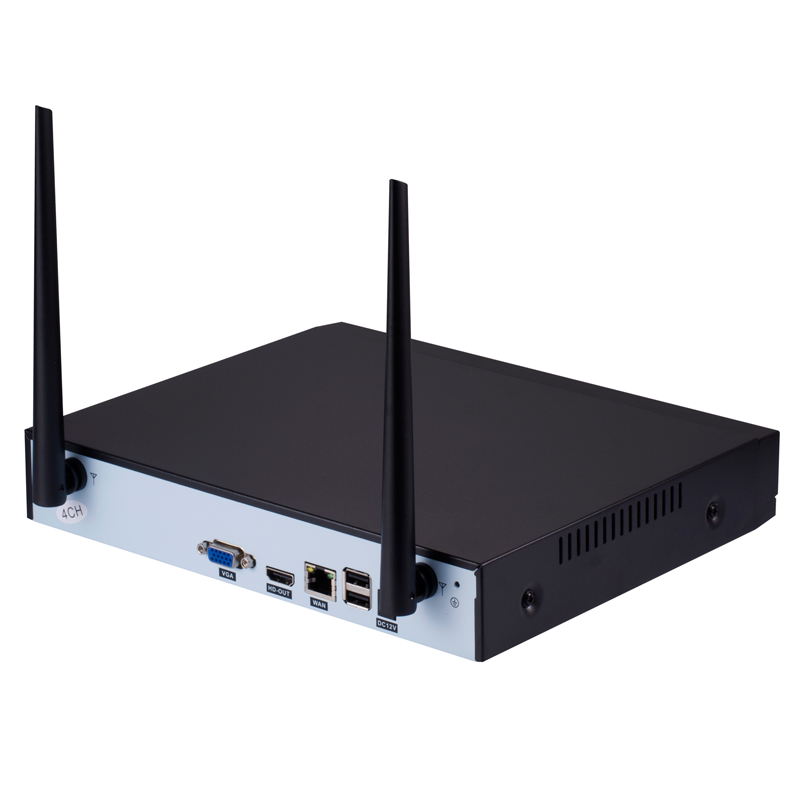

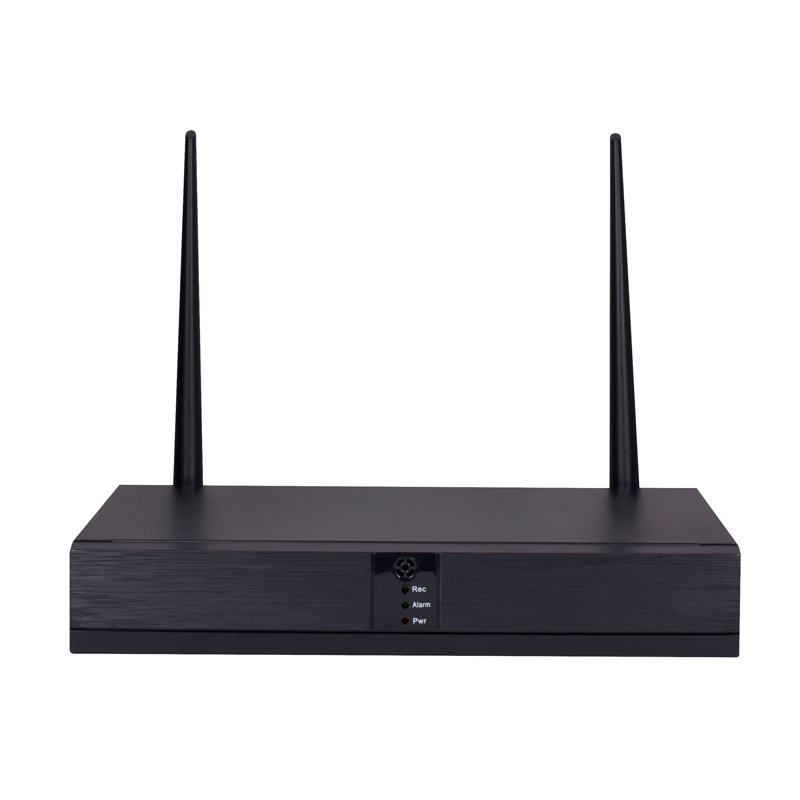

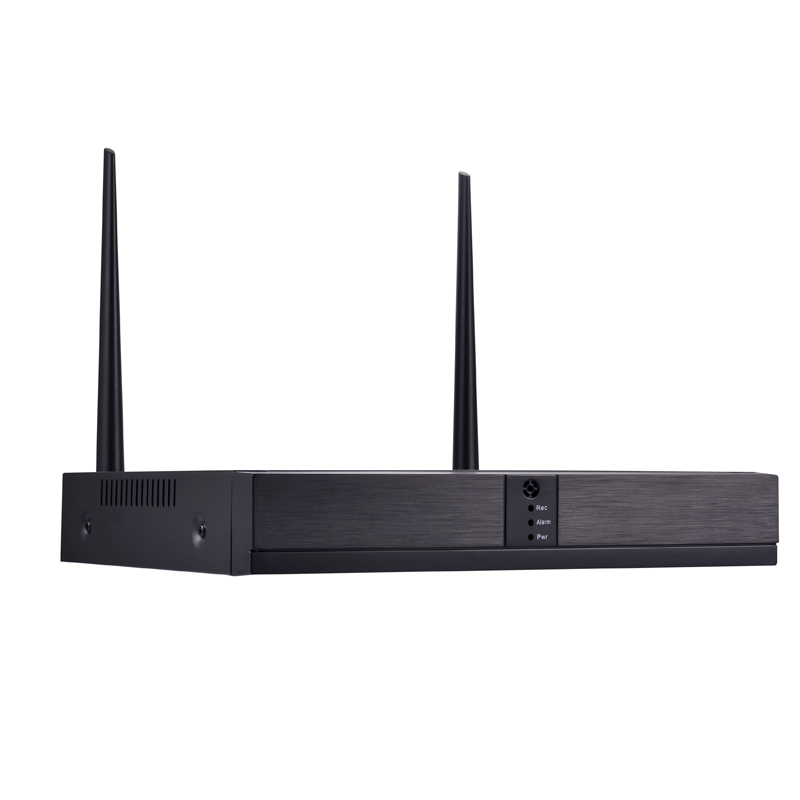

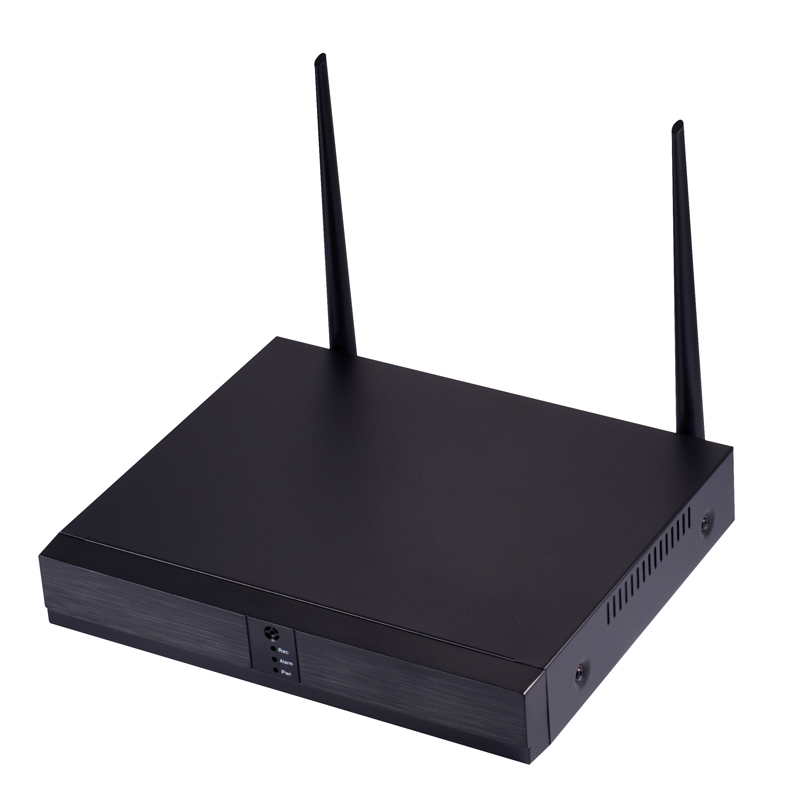

| WiFi NVR Specification | ||
| Model | NVRK0003 | |
| System | Main processor | Hi 3536D |
| Operating System | Embedded Linux | |
| System resources | Simultaneous multi-channel real-time recording, playback, network operation, USB backup | |
| Interface | Operator interface | 16-bit true color graphic menu operation interface, support mouse operation |
| Preview | 1/4/8 | |
| Video input (IP) | 8*1080P | |
| Access bandwidth | 24Mbps | |
| Forwarding bandwidth | 24Mbps | |
| Video compression | H.265+ | |
| Display quality | Max 1080P | |
| Playback quality | 1080P | |
| Decode | 2*1080P | |
| VR | Unsupport | |
| Motion detection | Support(depend on camera) | |
| Audio | Audio compression | G.711A |
| Intercom | Unsupport | |
| Record & playback | Recording mode | Manual>Alarm>Dynamic Detection>Timing |
| Local payback | 2*1080P | |
| Search mode | Search by Time/Calendar/Event/Channel | |
| Record storage | HDD、Network | |
| Backup mode | Network backup, USB hard disk, USB burner, SATA burner | |
|
External Interface |
Video output | 1ch VGA，1ch HDMI HD output |
| Audio I/O | 0/0 | |
| Alarm I/O | 0/0 | |
| Network interface | 1*RJ45 10M/100M Adaptive Ethernet port+4ch WIFI | |
| USB interface | 2*USB2.0 ports | |
| HDD | 1* SATA(Up to 8TB for each disk) | |
| ESATA | No | |
| Serial interface | No | |
| Other | ONVIF | No |
| Power supply | 12V/2A | |
| Power Consumption | <10W(Without HDD) | |
| Work environment | Temperature:0℃-＋55℃ , Humidity:10%－90%RH , Atm:86kpa－106kp | |
| Dimension | 254mm*215mm*42mm | |
| Weight | 1.05KG | |

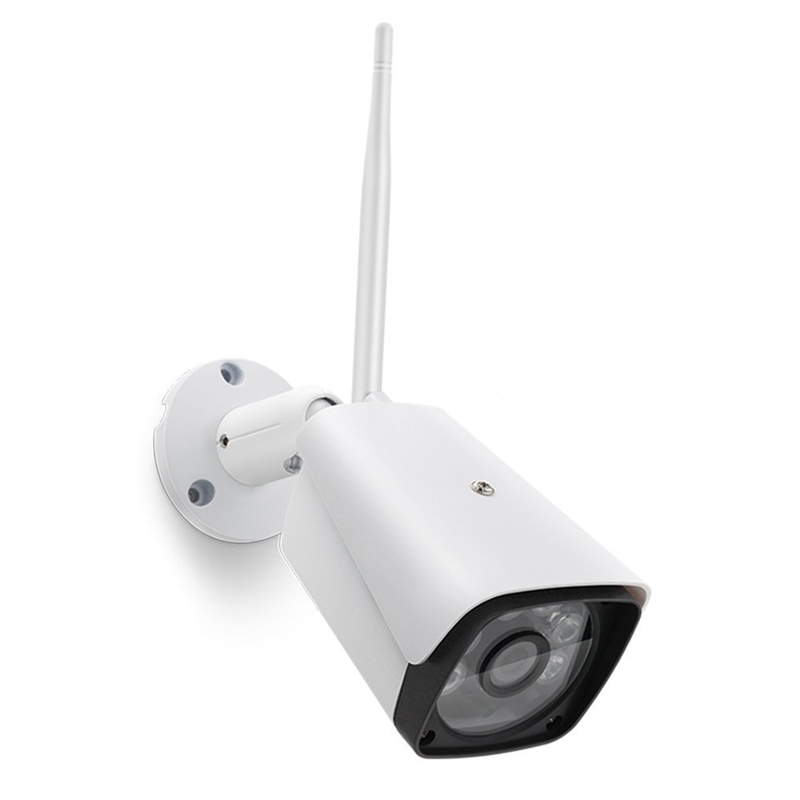

| WiFi Camera Specification | ||
| Model | NVRK0003 | |
| To configure | Processor + sensor | XM530 Ai+SC2235E 1/3" Progressive Scan Sensor |
| Low illumination | Color: 0.1 Lux; B/W: 0.01 Lux | |
| Effective pixel | HD 1080P | |
| Lens | HD lens 3.6MM | |
| Infrared lamp | 3pcs X ￠10 Lamp beads | |
| Infrared distance | 20~30 m | |
| Day&night | IR cut filter with auto switch | |
| General | setting |
Saturation, brightness and contrast ; are adjustable through IE browser or client software. |
| Video compression | H.265+ | |
| temperature | -10℃-＋60℃ | |
| humidity | 10%-90% RH | |
| Power supply | DC12V 1A | |
| Consumption | MAX 6W | |
| Waterproof grade | IP66 | |
| Dimension | 180mm*62mm*60mm | |
| Weight | 0.35 kg | |
