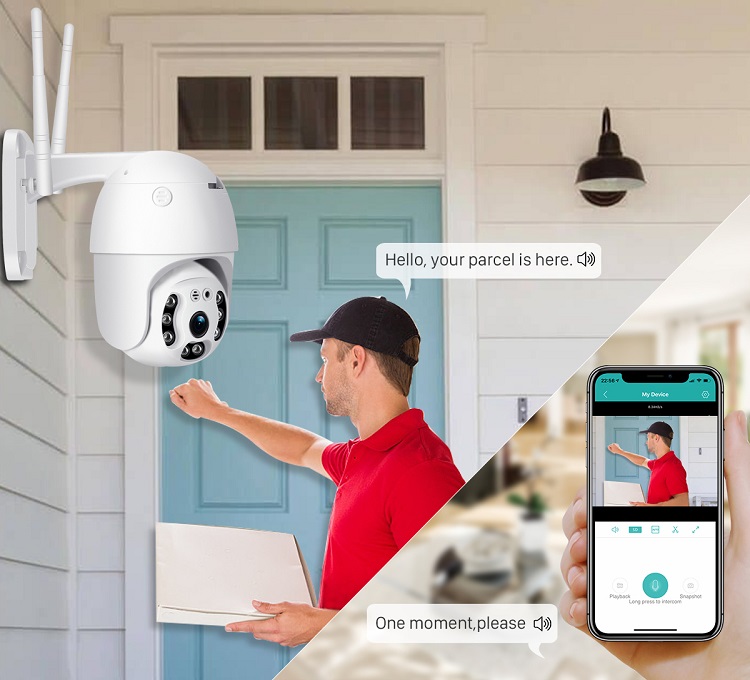

1080P outdoor high speed dome Wifi audio PTZ home monitoring ONVIF camera

Model：IPCM0158

Description

Product number		IPCM0158
system	P2P/streaming	support
	ONVIF	support
	DDNS	support
	Phone monitoring	Iphone, Android, windows, BlackBerry client
	Centralized management of CMS	Support Windows system, 64 channels

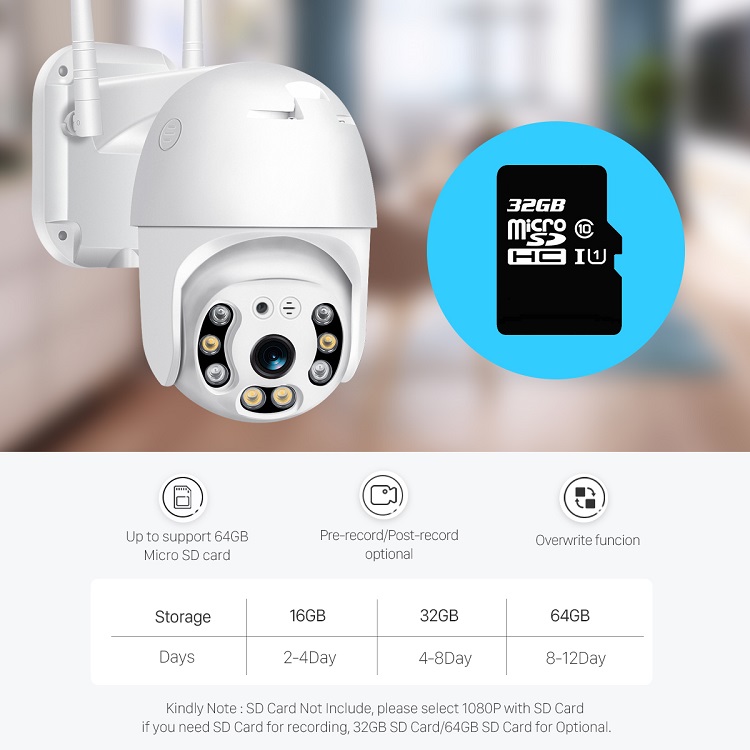

	MicroSD storage (up to 128G)	Support humanoid alarm video, full-day video
The internet	Network protocol	HTTP，UDP，SMTP，FTP，DHCP，DNS，NTP，UPnP
	Wired network	RJ45 10/100MB adaptive Ethernet interface

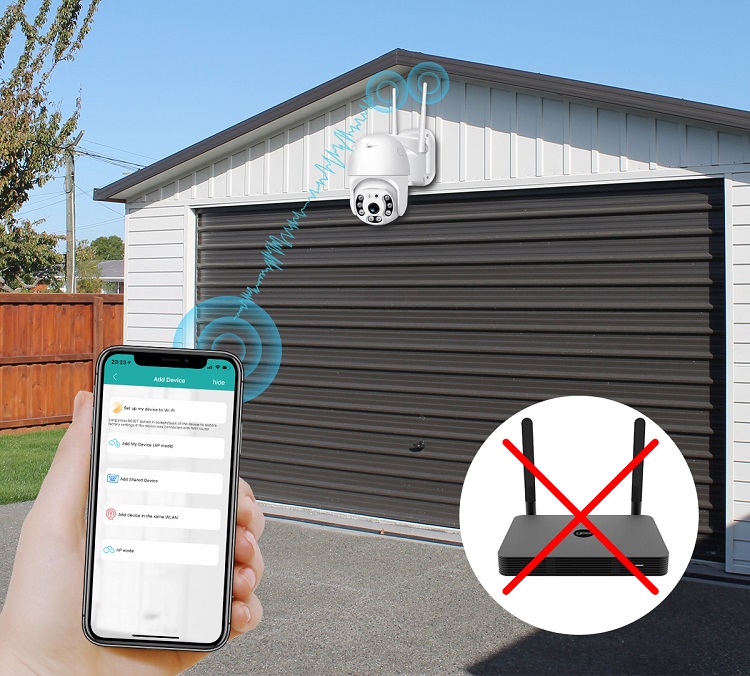

	wireless network	WIFI（IEEE 802.11b/g/n）2.4GHz
	Wireless rate	150Mbps(Max)
	Maximum number of online users	Support 5 users online at the same time
	Code stream	Double stream
Lens	Lens type	HD glass lens
	Image Sensor	1/2.7 inch CMOS sensor (XM530+SC2235)
	Number of pixels	1920×1080 (2 million pixels)
	Lens parameter	Fixed focal length: 4mm
	Viewing angle	65°
	IR-CUT	support
video	Video compression format	H.265X
	Video frame rate	1~25fps
	Resolution	Main stream: 1920×1080, auxiliary stream: 704x480
	Image adjustment	Brightness, contrast, saturation, chromaticity adjustment, triple digital zoom
	Minimum illumination	0.4 LUX
	Signal to noise ratio	>48dB
Audio	Audio compression format	G.726/G.711 format
	Built-in microphone	support
	External speaker	support
PTZ	Motor	Built-in motor control

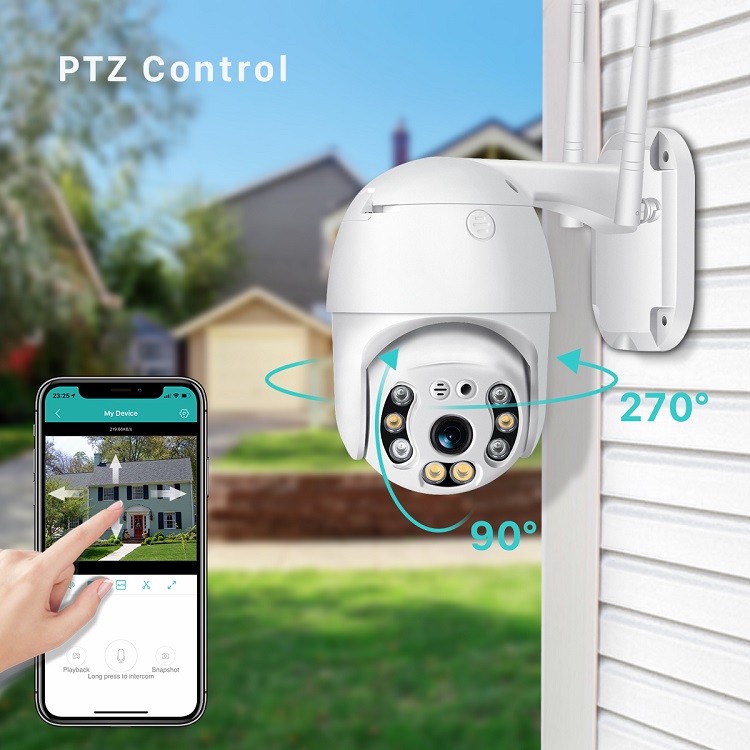

PTZ	Rotation angle	Level: 355 degrees, vertical: 90 degrees
Night vision	IR_CUT	Infrared night vision, color filter automatic switching
Night vision	Night vision effect	Infrared / alarm is full color

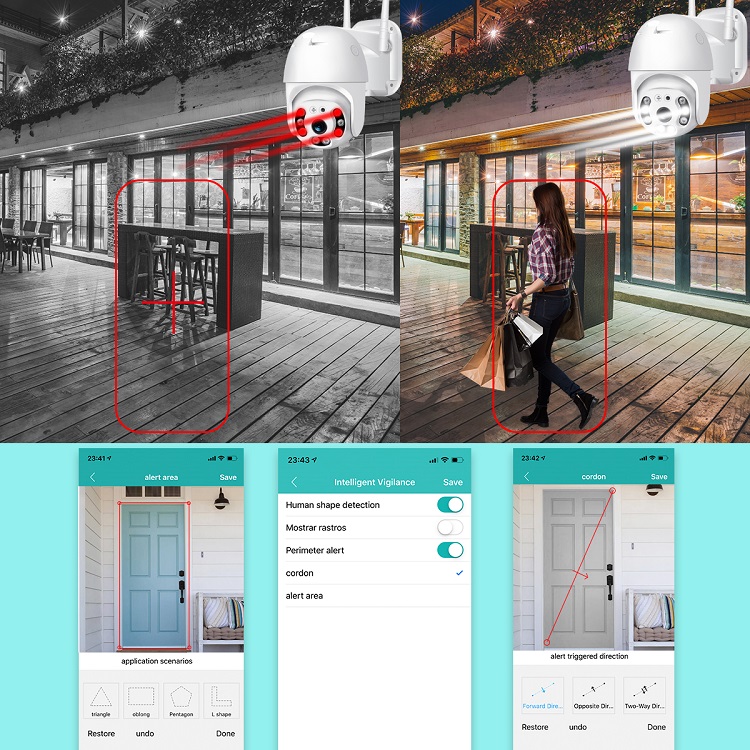

Call the police	Alarm detection	Humanoid police, custom language broadcast
	Detection area	Support 1 independent screen detection
	Alarm notification	iPhone, Android phone alarm push
Physical characteristics	Shape material	Plastic (ABS)

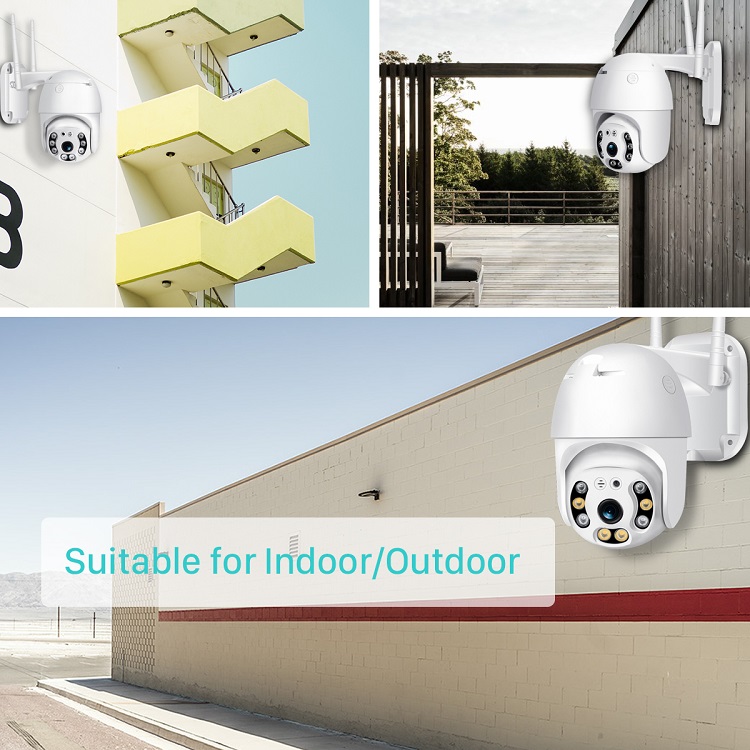

	Use environment	Outdoor waterproof
	Power consumption	DC12V/ 2A
	Operating temperature	Below 20 ° C ~ +50 ° C
	Working humidity	10%～80%

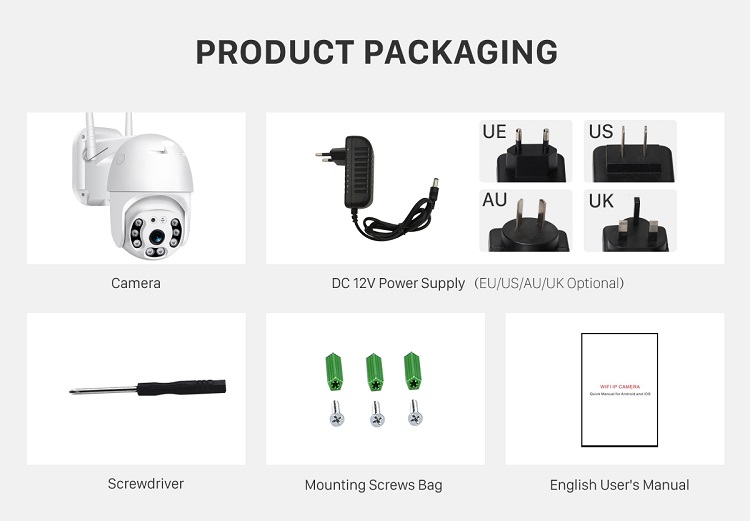

	Accessories	Power adapter, manual, mounting bracket, mounting wire
