| Model number | BS-C6-IP20 | BS-C6-IP30 | |
| Image Sensor | Image sensor | 1080P sensor | 3.0 MP sensor |
| Lens | 4 mm/6mm opticall fixed lens | ||
| Resolution | 1920*1080 | 2048*1536 | |
| Min. Illumination | O LUS/F 1.2 | ||
| Video | Image Compression | H.265 | H.265 |
| Image Resolution | 1080P(1920*1080) | 1536p (2040*1536) | |
| Frame rate | 25 fps | ||
| Led | 4 PCS White Led+4 PCS*Infrared led | 8 PCS*Infrared led | |
| Image adjustment | The brightness, contrast, saturation, chromaticity, is adjustable | ||
| White balance | Automatic | ||
| Infrared mode | Automatic , manual (on/off).Close | ||

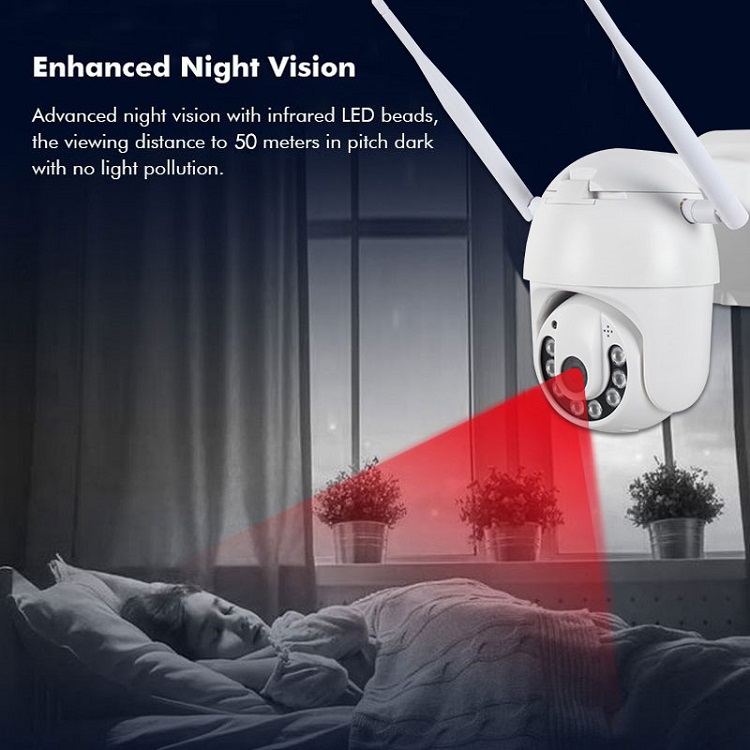

| Night-vision | Supported, IR-Cut, Night visibility up to 10~50 metres | ||
| Audio | Compression format | G.711A | |
| Input | Built-in microphone | ||
| Output | Build-in speaker | ||
| Network | Ethernet Interface | Built-in 10/100Mbps, Auto MDI/MDIX, RJ-45 | |
| Wireless Standard | WIFI (IEEE802.11b/g/n) | ||
| IP mode | Dynamic IP address, static IP address | ||
| Wireless Security | WEP & WPA WPA2 Encryption | ||
| Alarm | Motion Detection | Yes | |
| Functions | Preset PTZ/Motion Tracking | Yes | |
| Hardware Interface | Memory | Micro SD CARD (Support 16G/32G/64GB/128GB) | |
| Power Interface | DC 12V/2.0A | ||
| Audio Input/Output | Built in audio input | ||
| Reset Buttons | One Reset | ||
| Wireless Interface | WIFI antenna | ||
| Mobile Phone | Support iPhone, Android | ||

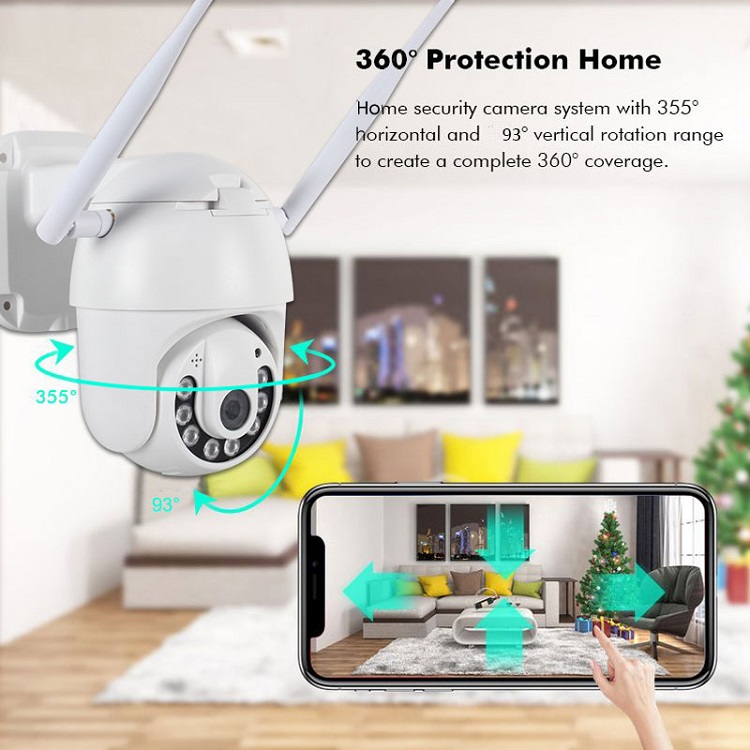

| PTZ | Pan/Tilt Angle | Horizontal:355 Degre & Vertical: 90 Degree | |

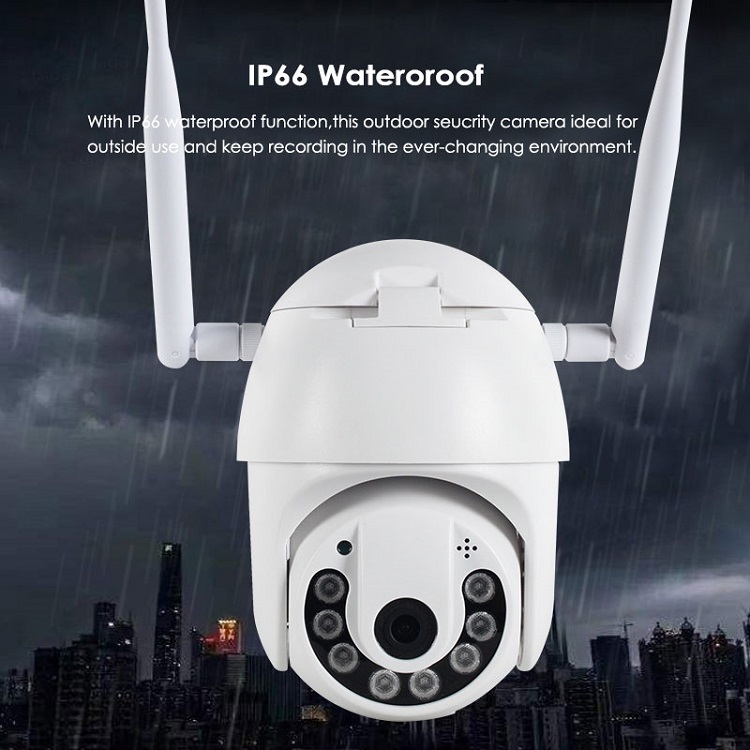

| Others | Environment | Indoors/Outdoor | |
| Power supply | DC12V, 2A (Not include) | ||
| Power consumption | 3W | ||
| Operating temperature | "-5~"+50 Degree | ||
| Operating humidity | 10%~90% | ||

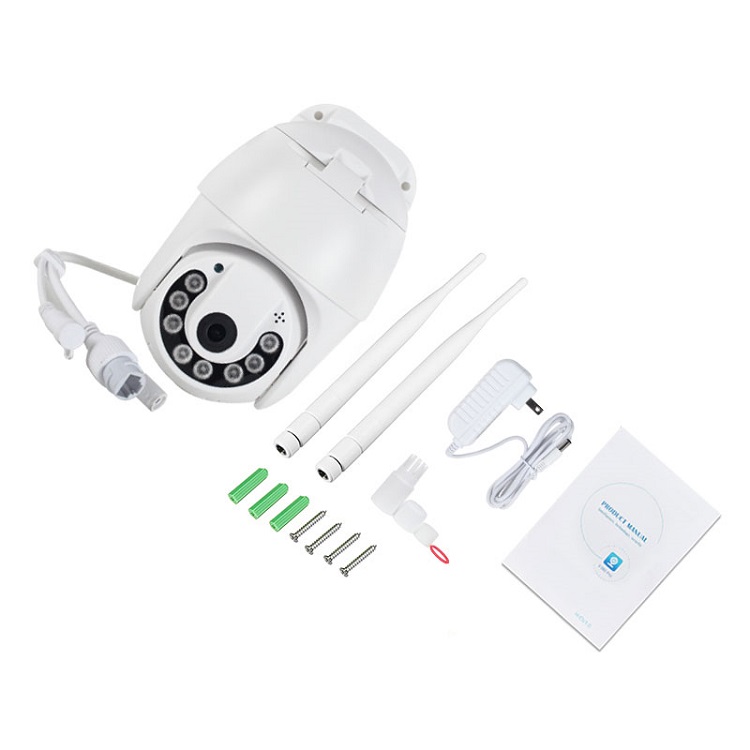

| Accessories | Operation manual, screws,Bracket | ||
