| IPCM0170 | ||
| system | OS | GOKE |
| Processor | GK7102S+SC2232 | |
| Resolution | 1080P（1920*1080） | |
| P2P (Free) | Support P2P Connection | |
| Onvif Protocol | Support ONVIF protocol | |
| Mobile APP View | Support iPhone, Android phone APP View | |
| TF Card Record | Support maximum 128G | |
| Recording | Support TF card recording, video play back | |
| Lens | Lens Type | 3.6mm lens |
| IR-CUT | With IR-CUT | |
| video | Compression | H.264 |
| Image Sensor | 1/4" 2 megapixel progressive CMOS sensor | |
| Image Adjustment | Support | |
| Frame Rate | 15fps(50HZ), 15fps(60HZ) | |

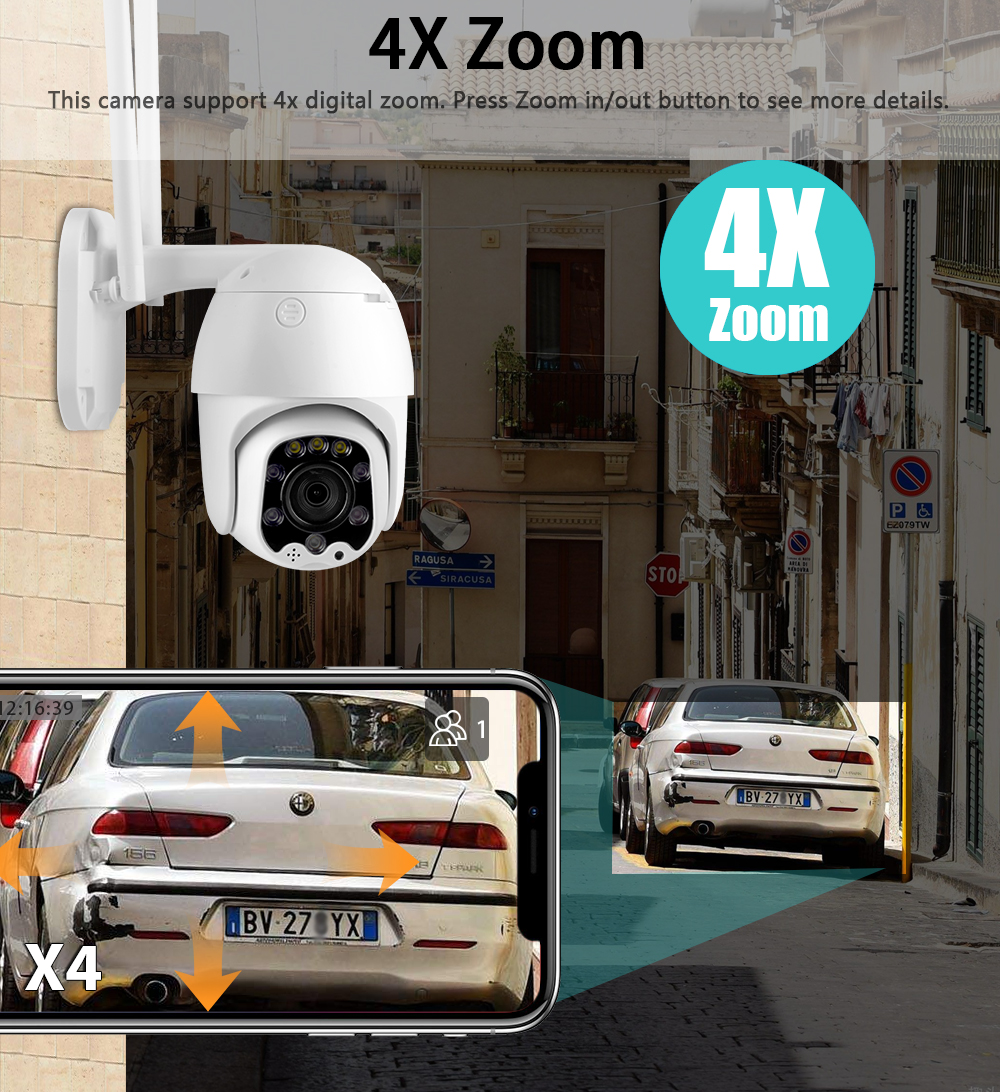

| Zoom | Support 4X digital zoom | |

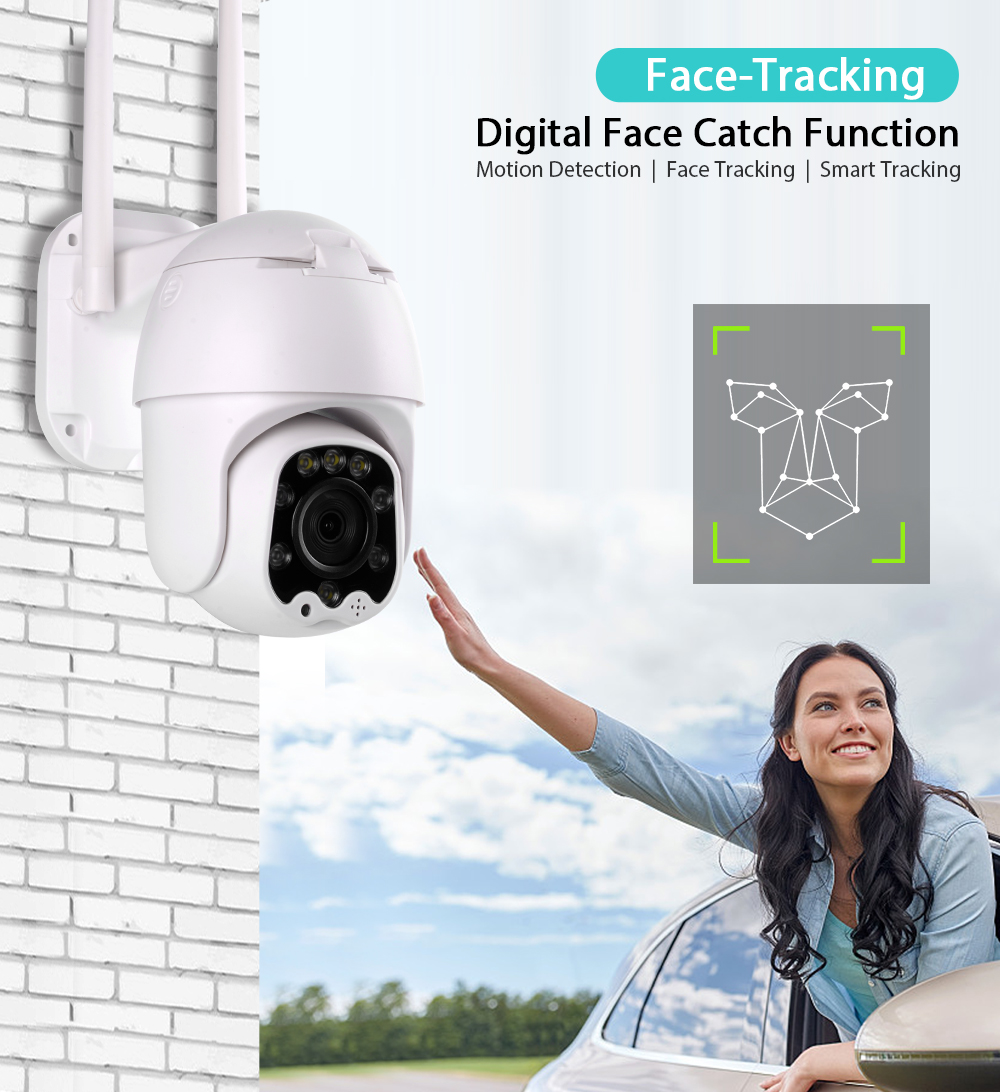

| Face Detection | Support face tracking (only support in FHD mode) | |
| stream | First stream: 1080P resolution (1920x1080) | |
| Second stream: 720 resolution (1080x720) | ||

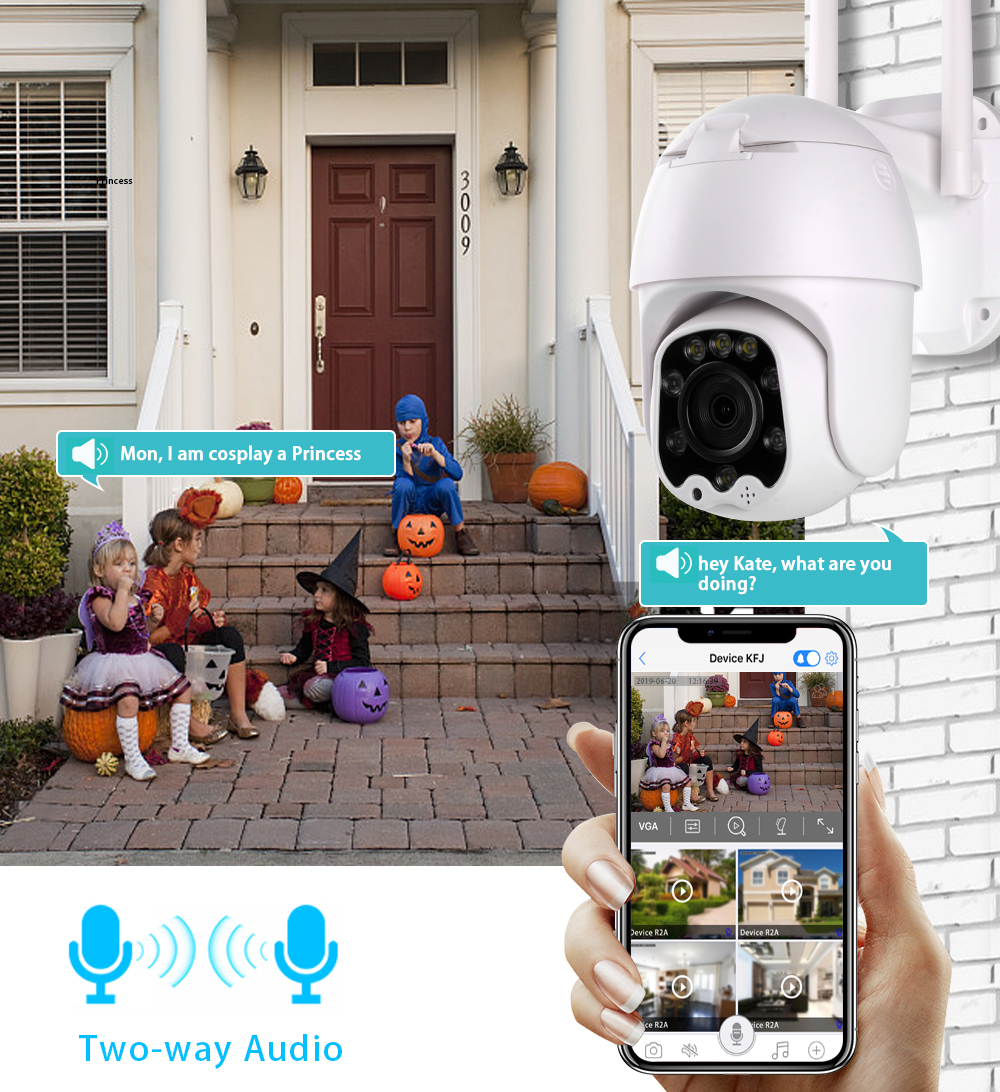

| Audio | Two Way Audio | Support |
| Echo Cancellation | Support | |
| Sound Adjustment | Support | |

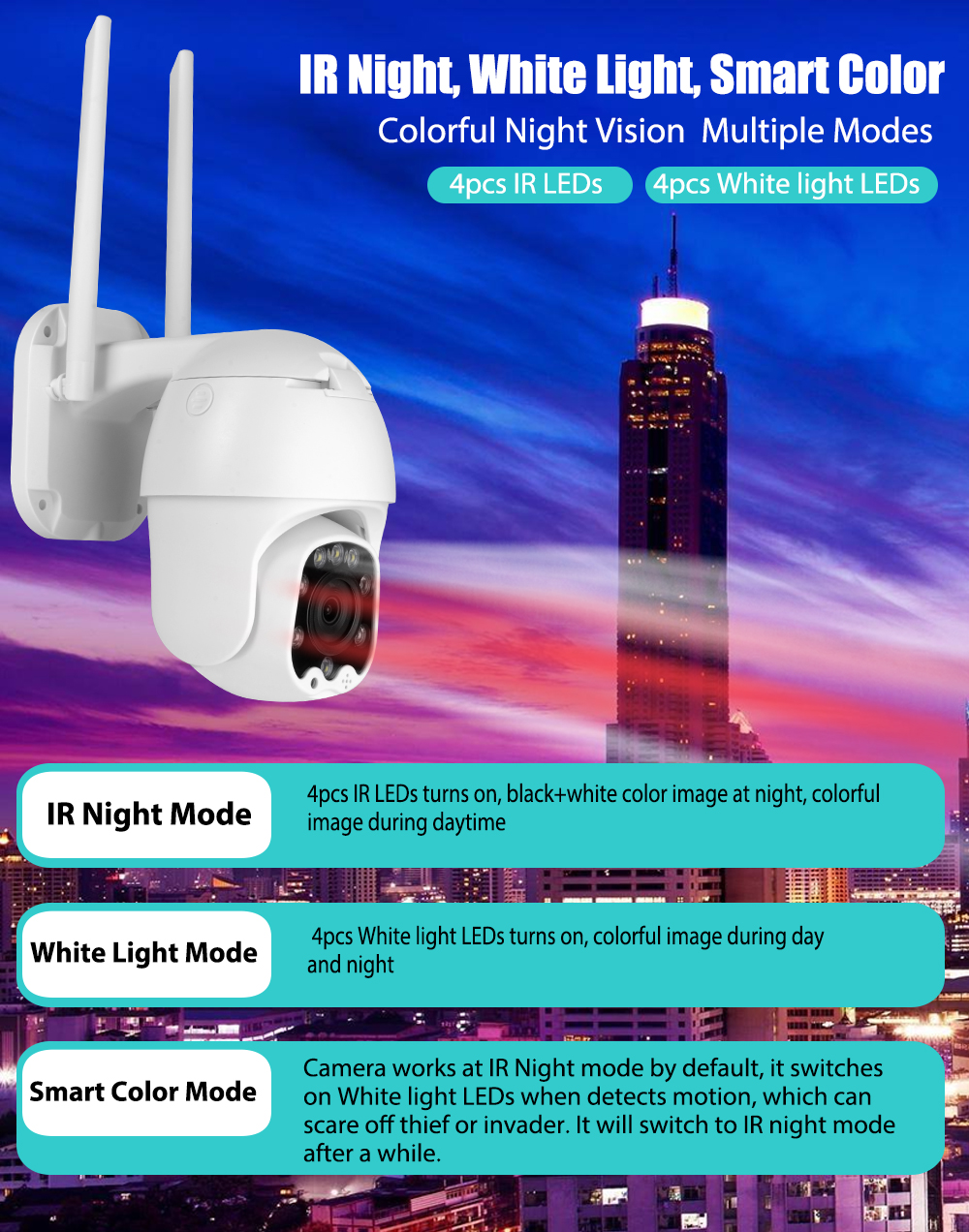

| Night Vision | Night Vision | 20 meters (dual light source), smart color |
| Infrared LED | 4 infrared + 4 white light (not support IR & white light force on/off) | |
| Pan/Tilt | Preset Position | 8 |
| Rotation Angle | Horizontal direction: 355 degrees ,Vertical direction: 90 degrees | |
| Rotation Speed | Horizontal direction: 5-30 degrees ,Vertical direction: 5-50 degrees | |

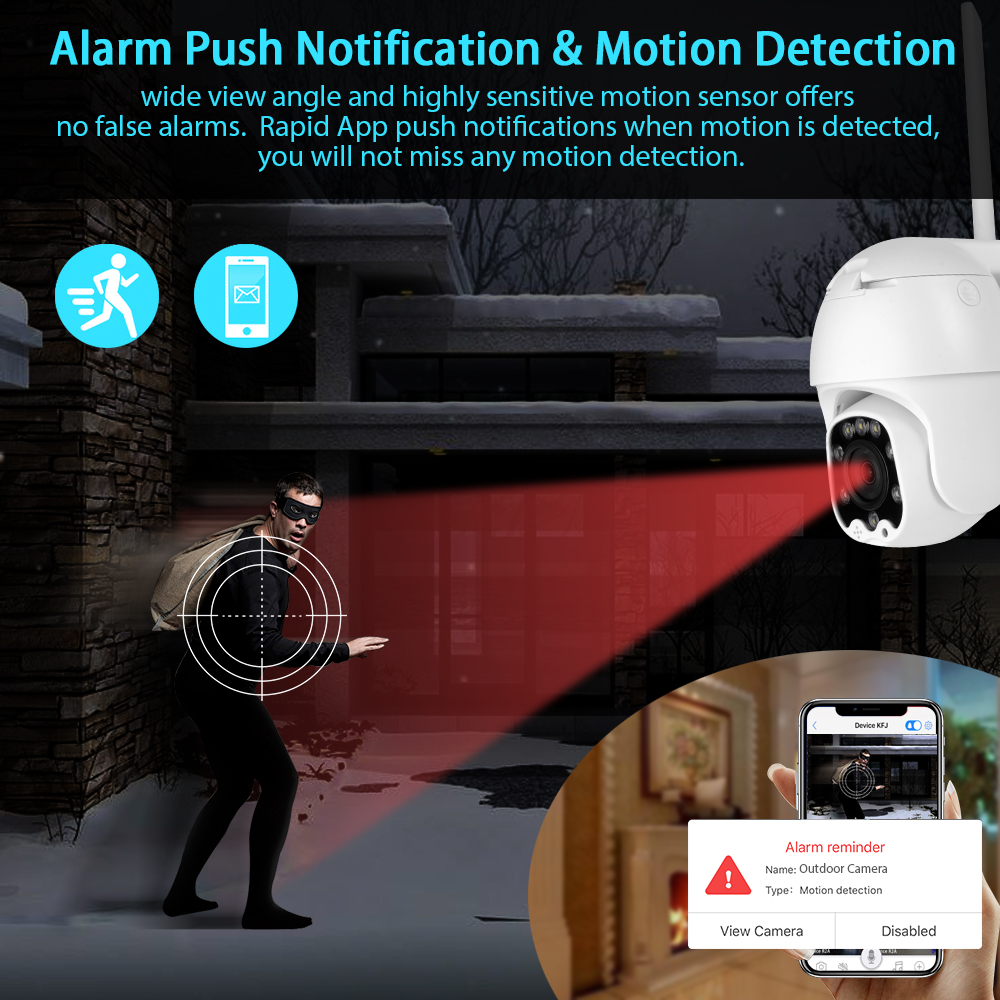

| Alarm | Motion Detection | Motion detection |
| Alarm Push | Rapid push notification | |
| Network | Network Interface | RJ-45 10/100Mb adaptive Ethernet interface |
| Wireless | WIFI, 802.11 b/g/n | |
| Others | OSD | Support camera name ,date and time information show on image |
| Power Supply | USB-12V/1A | |
| Material & Use environment | Outdoor mini ball machine | |
| IP Level | IP66 waterproof | |
| Colour | White | |
| Operating Temperature | –10～70℃ | |
| Working Humidity | 95% RH | |
| Size | Item size:1 75*100*105(length * width * height ) Packing size: (203mmx203mmx134mm) | |
| Weight | Net weight: Gross weight: (Note: subject to the actual product) | |
| Accessories | Power adapter, manual, mounting screws | |
