I. Infrared Radiation Product Introduction

◆ All-sealed integrated weatherproof design, such as full-sealed and rain-proof (fog), dust-proof (worm), etc., make it work normally in harsh environment

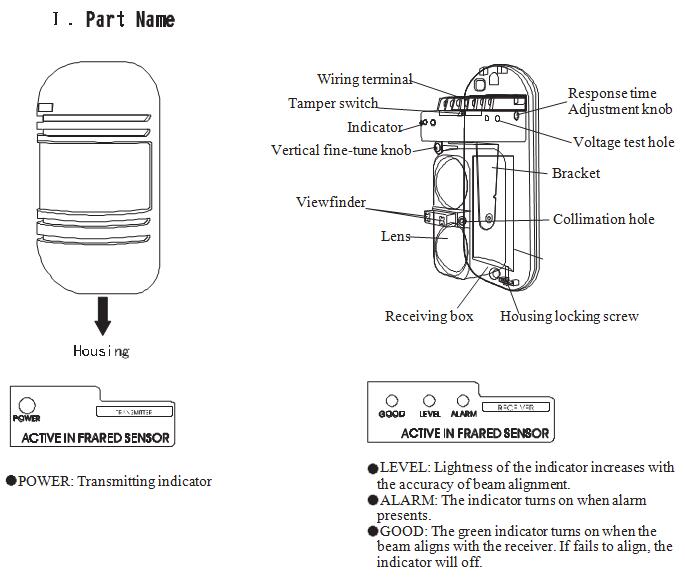

◆ The mechanical design of the upper and lower optical lenses is adjusted at the same time, making the adjustment faster, more convenient and more accurate.
◆ High level of resistance to RFI / EMI
◆ Unique digital filter circuit design
◆ With rain cover design
◆ C relay output
◆ Beam blocking period can be adjusted to make it more flexible and adaptable

Product model: 100L-2
◆ Outdoor alert distance: ABT-30L-2 ABT-60L-2 ABT-80L-2 ABT-100L-2
◆ Indoor warning distance: 60m 90m 180m 240m 300m
◆ Induction speed: 50 ～ 700ms
◆ Alarm output-normal: normally closed and normally open (NC & NO) contact capacity AV / DC 30V / 0.5mA
◆ Working voltage: DC 13.8 ～ 24V; AC 11 ～ 18V
◆ Tamper output; normally closed (NC)
Contact capacity AV / DC 24V / 0.5mA
◆ Horizontal angle adjustment: 180 ° (± 90 °)
◆ Vertical angle adjustment: ± 10 °
◆ Shell material: PC
