1080P 2CH Wireless NVR Kit Mini Home Security System WiFi Support IP66 Waterproof CCTV Camera System
- Model：IPCM0187
Base station:
The base station is a miniature video recorder, equipped with an SD card interface, a network interface and a button format code. You can add a variety of wireless cameras, such as battery cameras and credit card machines, with a single key, and provide local video storage. The kit supports up to 4 wireless cameras and provides comprehensive indoor and outdoor surveillance, perfect for your home surveillance.
Base station function:
1. Connect your home router via a network cable

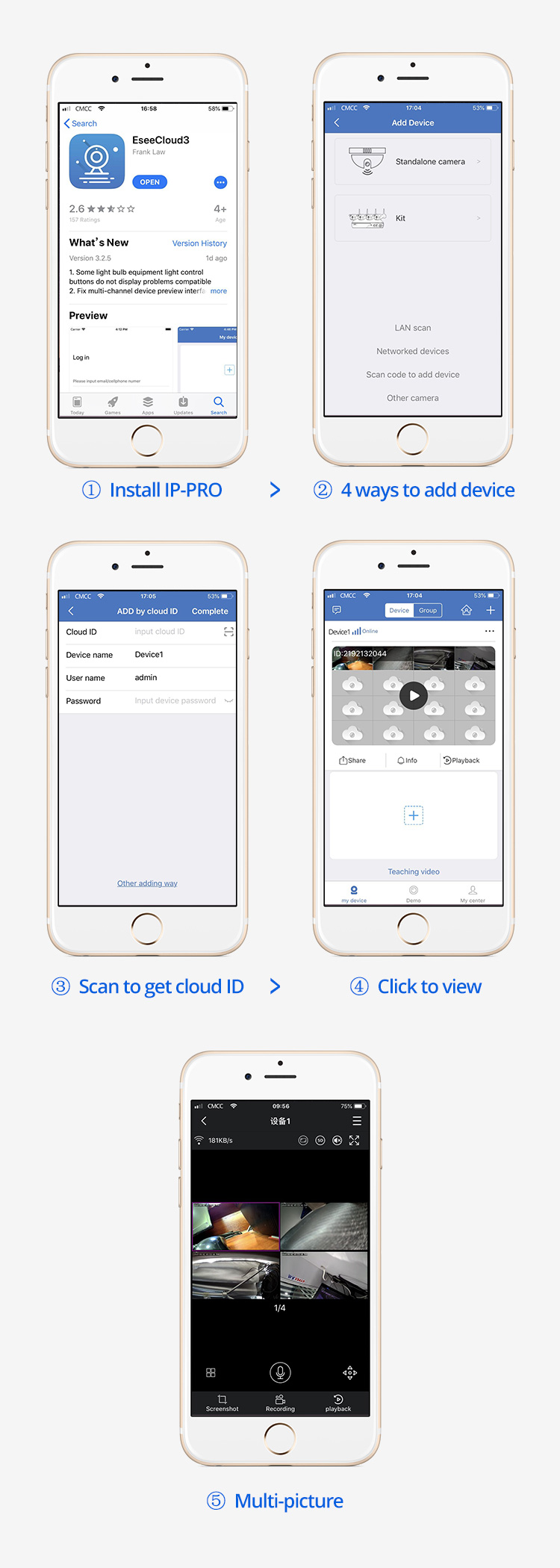

2.Support APP to quickly add devices
3.Support 128GB micro SD card
4.Support 2 seconds pre-recording before PIR trigger
5.Support channel status indicator
6. Support built-in speaker, status voice broadcast
7. Support multiple wireless cameras access (wireless matching code)
8.Can connect up to 4 WIFI cameras
Camera function:
1.1080P HD resolution
2. Infrared night vision
3. Motion detection + PIR linkage detection alarm
4.Support two-way audio
5. Support wireless matching code with wireless NVR, base station
specification
1) 4 channel 1080P IPcam access
2) 1-channel playback APP playback or SD card playback
3) Video compression format H.264
4) 1 RJ45 100M network port / 1 SD card interface (maximum support 128G);
5) Support wireless camera and battery camera access
|
gateway |
||
|
Model NO. |
IPCM0187 |
|
|
Video and audio input |
network audio and video input |
4ch |
|
Video output |
Video output |
network connection home router |
|
|
Preview mode |
Mobile APP, computer CMS |
|
Video compression |
Standard H.264 |
|
|
Video codec parameters |
Video resolution |
1080P |
|
|
Synchronous playback |
1ch(APP) |
|
Video management |
video recording |
motion detection recording, automatic coverage of loop recording |
|
|
Backup |
backup by card reader in computer, and click video playback when the APP plays back. |
|
Storage |
Type |
1 MicroSD interface |
|
|
Maximum capacity |
Support up to 128G |
|
External interface |
Network interface |
1，RJ45 10M/100M adaptive Ethernet port |
|
|
|
2 WIFI antennas |
|
|
Button interface |
2 buttons, 1 for the code matching, 1 reset button |
|
Indication function |
P2Pindicator |
1 P2P online indicator |
|
|
Channel indicator |
4 channel connection indicator |
|
|
speaker |
1 built-in speaker, broadcast device status |
|
other |
Power supply |
USB DC 5V 1A |
|
|
Working temperature |
-10℃--＋55℃ |
|
|
Working humidity |
10％--90％ |
|
|
size |
80x80x27mm |
|
|
weight（without HDD） |
80g |
|
camera |
PO1021-W |
|
|
Image sensor |
Image sensor |
1/3" inch CMOS sensor |
|
|
Resolution |
1080P |
|
|
Minimum illumination |
0Lux (with infrared light) |
|
Night Vision |
Night Vision Distance |
9 m |
|
|
Day and night mode |
Automatic switching of IR-CUT |
|
Video |
Video Compression |
H.264，H.265，H.265+ |
|
|
Resolution |
Main code rate：1920 x 1080P, 640 x 360P |
|
Audio |
input/output |
Built-in microphone and speaker (two-way audio) |
|
|
Audio compression |
AAC |
|
Network |
wireless |
802.11b/g/n; |
|
|
Wireless Security Encryption |
WEP, WPA, WPA2 |
|
Indicator light |
tail light |
green |
|
Reset button |
Reset status |
Re-coded (wireless matching code to wireless NVR, base station) |
|
PIR |
yes |
PIR motion detection |
|
Storage |
Micro SD card |
Support up to 128GB |
|
Physical characteristics |
working temperature |
–20°C～50°C |
|
|
Working humidity |
20%～85%; no condensation |
|
|
Storage temperature |
–20°C～50°C |
|
|
storage humidity |
20%～85%; no condensation |
