5MP 4G 30X Optical Zoom Camera Specification:
|
||
|
Video
|
Sensor
|
2.0 megapixel 1/2.8" SONY307 Star Light CMOS
|
|
|
Video resolution
|
Main stream: 1920x1080@20fps
Sub stream: 640x352@25fps |
|
|
Video compression
|
H.264/H.265
|
|
|
Lens
|
4.7-94mm 30X optical zoom auto focus lens
|
|
|
View angle
|
61.4°~3.6°
|
|
|
Night vision
|
8pcs array infrared LEDs, night vision distance 80m
|
|
Audio
|
Audio compression
|
G.726/G.711
|
|
|
Audio code rate
|
8Kbps, 16bit
|
|
|
Audio input/output
|
Built-in MIC and speakers, support two way audio
|
|
Alarm
|
Motion detection
|
Can set 4 independent detection areas, can set the sensitivity of 1-100
|
|
|
Humanoid detection
|
Support, can be used in conjunction with motion detection to make the alarm more accurate
|
|
|
Alarm linkage
|
Alarm mobile phone message push,
Alarm recording or capture to Micro SD card, Alarm trigger sound alarm, Alarm capture sent to Email, Alarm recording or capture saved to FTP |
|
|
Alarm time
|
All day or manually customize alarm time period
|
|
Interface
|
Power
|
5.5*2.1mm power interface
|
|
|
Reset button
|
Support, press for 5 seconds to reset the camera
|
|
|
Micro SD card
|
Support up to 128G micro SD card
|
|

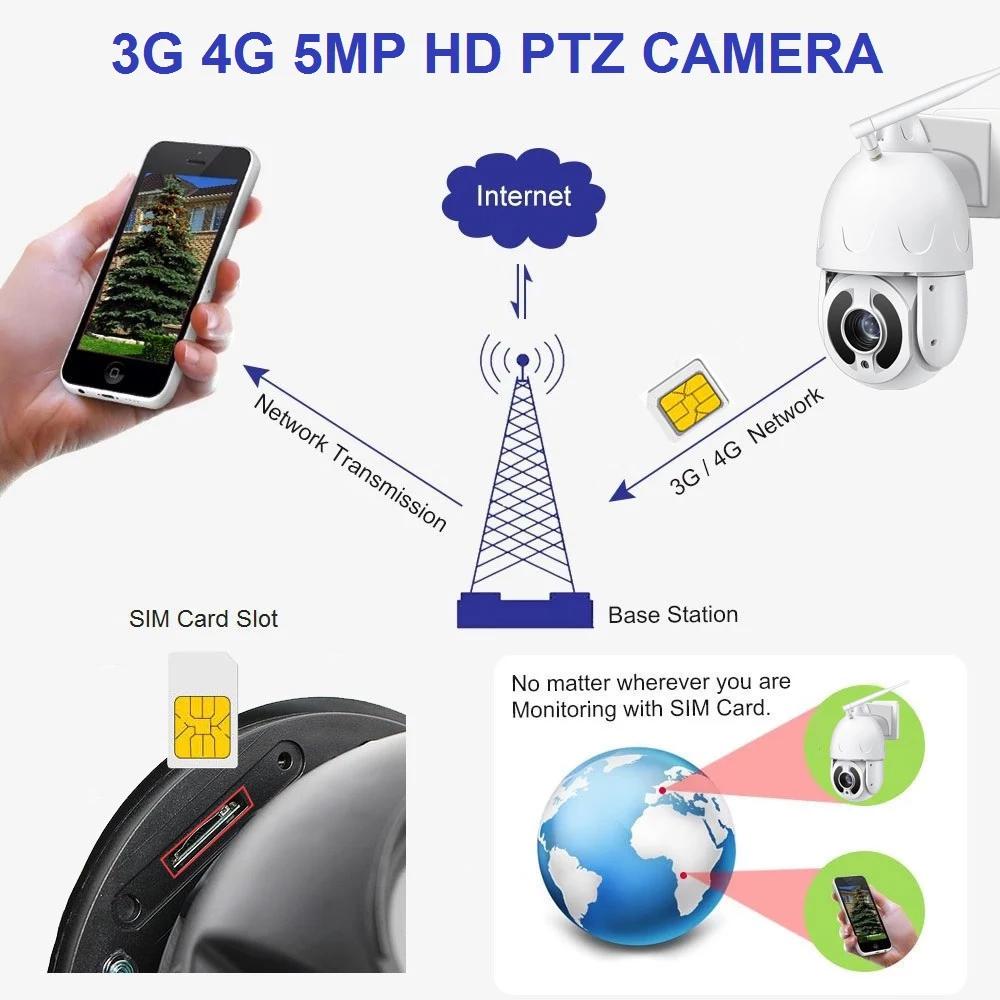

3G/4G
|
3G standard
|
WCDMA
|
|
|
3G frequency range
|
B1(2100MHz), B8(900MHz)
|
|
|
4G standard
|
FDD-LTE/TDD-LTE
|
|
|
4G frequency range
|
B1(2100MHz), B3(1800MHz), B7(2600MHz), B8(900MHz), B20(800MHz), B38(2600MHz), B40(2300MHz), B41(2500MHz)
|
|
|
Interface type
|
Micro SIM card, Plug and play, no need to set
|
|

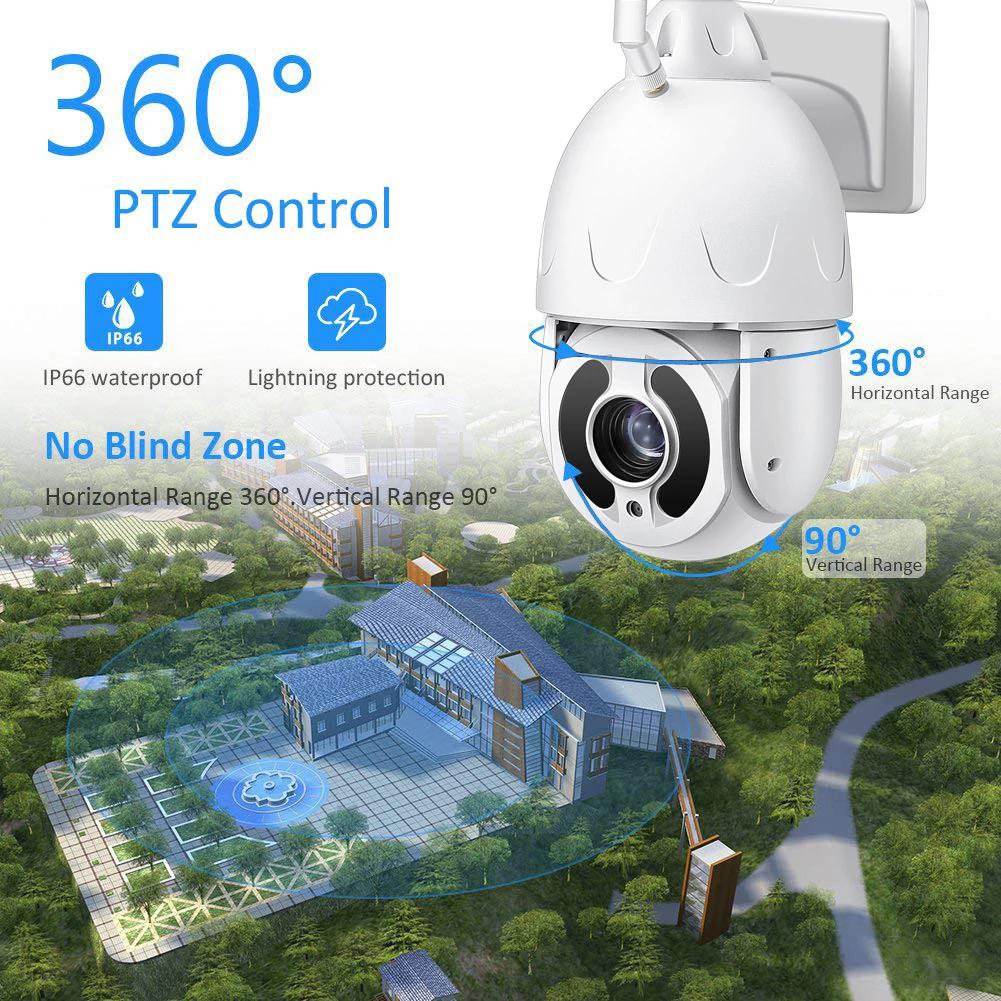

PTZ
|
Rotation angle
|
Horizon: 350°, Vertical: 90°
|
|
|
Horizontal speed
|
6°-25°/S
|
|
|
Vertical speed
|
3°-15°/S
|
|
|
Preset
|
8 preset points, supports cruise function
|
|
General specification
|
Power consumption
|
Day: 6W, Night: 19W
|
|
|
Operating environment
|
Environment -20℃~+60℃(-4℉~+140℉),
Humidity 10%～90%, non-condensing |
|
|
Shell material
|
Metal shell
|
|
|
Waterproof level
|
IP66
|
|
|
Product size
|
190mm×130mm×235mm(L×W×H)
|
|
|
Product weight
|
1.4kg
|
|
|
Package size
|
275mmx230mmx180mm(L×W×H)
|
|
|
Package weight
|
2.0kg
|
|
2MP 4G 30X Optical Zoom Camera Specification:
|
||
|
Video
|
Sensor
|
5.0 megapixel 1/2.8" SONY335 low lux CMOS
|
|
|
Video resolution
|
Main stream: 2560x1920@15fps, 2560x1440@15fps
Sub stream: 800x600/800x448@25fps, 640x480/640x352@25fps |
|
|
Video compression
|
H.264/H.265
|
|
|
Lens
|
4.7-94mm 30X optical zoom auto focus lens
|
|
|
View angle
|
61.4°~3.6°
|
|
|
Night vision
|
8pcs array infrared LEDs, night vision distance 80m
|
|
Audio
|
Audio compression
|
G.726/G.711
|
|
|
Audio code rate
|
8Kbps, 16bit
|
|
|
Audio input/output
|
Built-in MIC and speakers, support two way audio
|
|
Alarm
|
Motion detection
|
Can set 4 independent detection areas, can set the sensitivity of 1-100
|
|
|
Humanoid detection
|
Support, can be used in conjunction with motion detection to make the alarm more accurate
|
|
|
Alarm linkage
|
Alarm mobile phone message push,
Alarm recording or capture to Micro SD card, Alarm trigger sound alarm, Alarm capture sent to Email, Alarm recording or capture saved to FTP |
|
|
Alarm time
|
All day or manually customize alarm time period
|
|
Interface
|
Power
|
5.5*2.1mm power interface
|
|
|
Reset button
|
Support, press for 5 seconds to reset the camera
|
|
|
Micro SD card
|
Support up to 128G micro SD card
|
|
3G/4G
|
3G standard
|
WCDMA
|
|
|
3G frequency range
|
B1(2100MHz), B8(900MHz)
|
|
|
4G standard
|
FDD-LTE/TDD-LTE
|
|
|
4G frequency range
|
B1(2100MHz), B3(1800MHz), B7(2600MHz), B8(900MHz), B20(800MHz), B38(2600MHz), B40(2300MHz), B41(2500MHz)
|
|
|
Interface type
|
Micro SIM card, Plug and play, no need to set
|
|
PTZ
|
Rotation angle
|
Horizon: 350°, Vertical: 90°
|
|
|
Horizontal speed
|
6°-25°/S
|
|
|
Vertical speed
|
3°-15°/S
|
|
|
Preset
|
8 preset points, supports cruise function
|
|
General specification
|
Power consumption
|
Day: 3W, Night: 19W
|
|
|
Operating environment
|
Environment -20℃~+60℃(-4℉~+140℉),
Humidity 10%～90%, non-condensing |
|
|
Shell material
|
Metal shell
|
|
|
Waterproof level
|
IP66
|
|
|
Product size
|
190mm×130mm×235mm(L×W×H)
|
|
|
Product weight
|
1.
|
