Specification:

Model

2MP

5MP

Video

Sensor

2.0 megapixel T31N+1/2.8'' SC2335 CMOS

5.0 megapixel T31X+1/2.7'' SC5238 CMOS

Video resolution

Main stream:
1920x1080@25fps, 1280x720@25fps
Sub stream:
640x352@25fps, 320x176@25fps

Main stream: 2560x1920@15fps, 2560x1440@15fps
Sub stream: 800x600/800x448@25fps, 640x480/640x352@25fps

Video compression

H.264/H.265

H.265

Lens

3.6 mm fixed lens, 3x digital zoom

View angle

75°

Night vision

6pcs infrared LEDs, night vision distance 40m

Audio

Audio compression

G.726/G.711

Audio code rate

8Kbps, 16bit

Audio input/output

Built-in MIC and speakers, support two way audio

Alarm

Motion detecting alarm

Can set 4 independent detection region (1-100 sensitivity can be set)

Alarm linkage

Alarm send pictures to the mailbox,
Alarm upload pictures and videos to the FTP server,
Alarm record pictures and videos to Micro SD card,
Alarm mobile phone message push,
Alarm trigger sound alarm

Alarm recording

Support Micro SD card and PC client linkage alarm recording

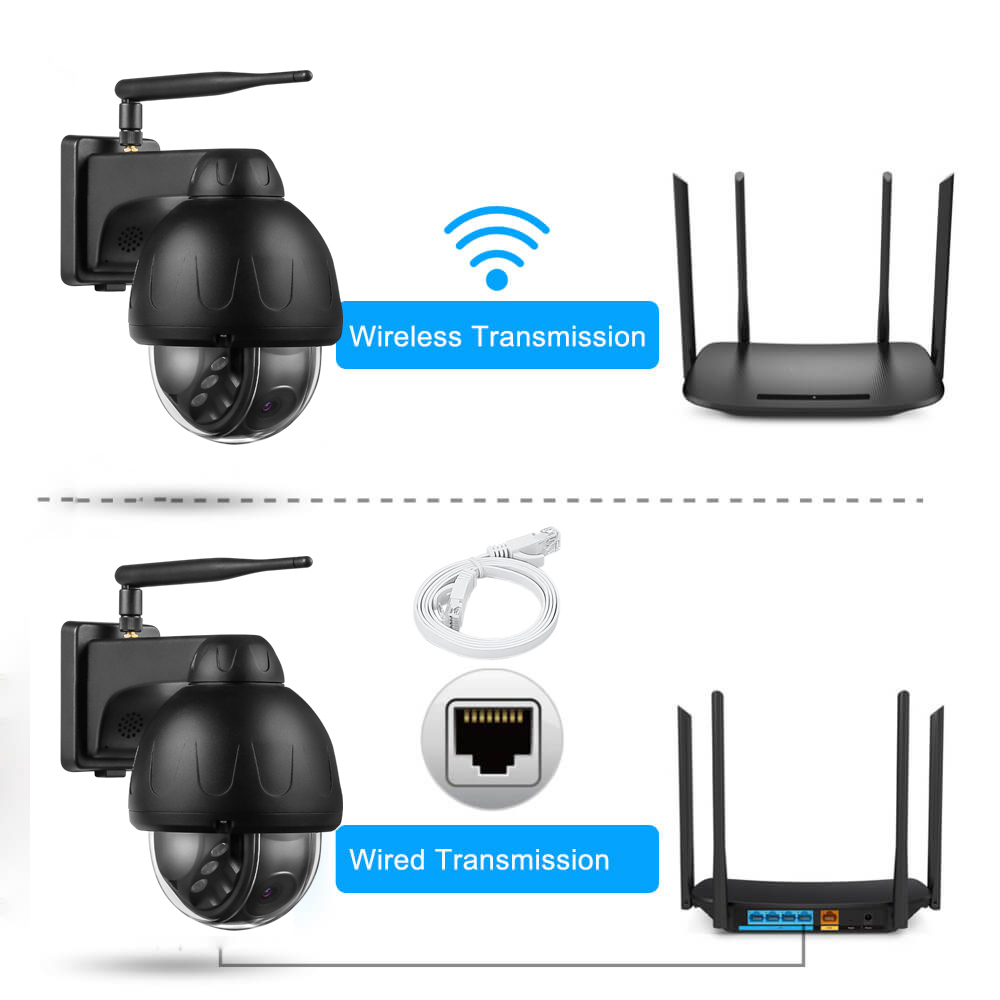

Network

Wireless

IEEE 802.11 b/g/n

Ethernet

RJ45 Ethernet

Storage

Micro SD card

Support up to 128G micro SD card

Recording mode

Alarm record, timing record,

Video playback

Support APP, IE browser, remote client play and download the video

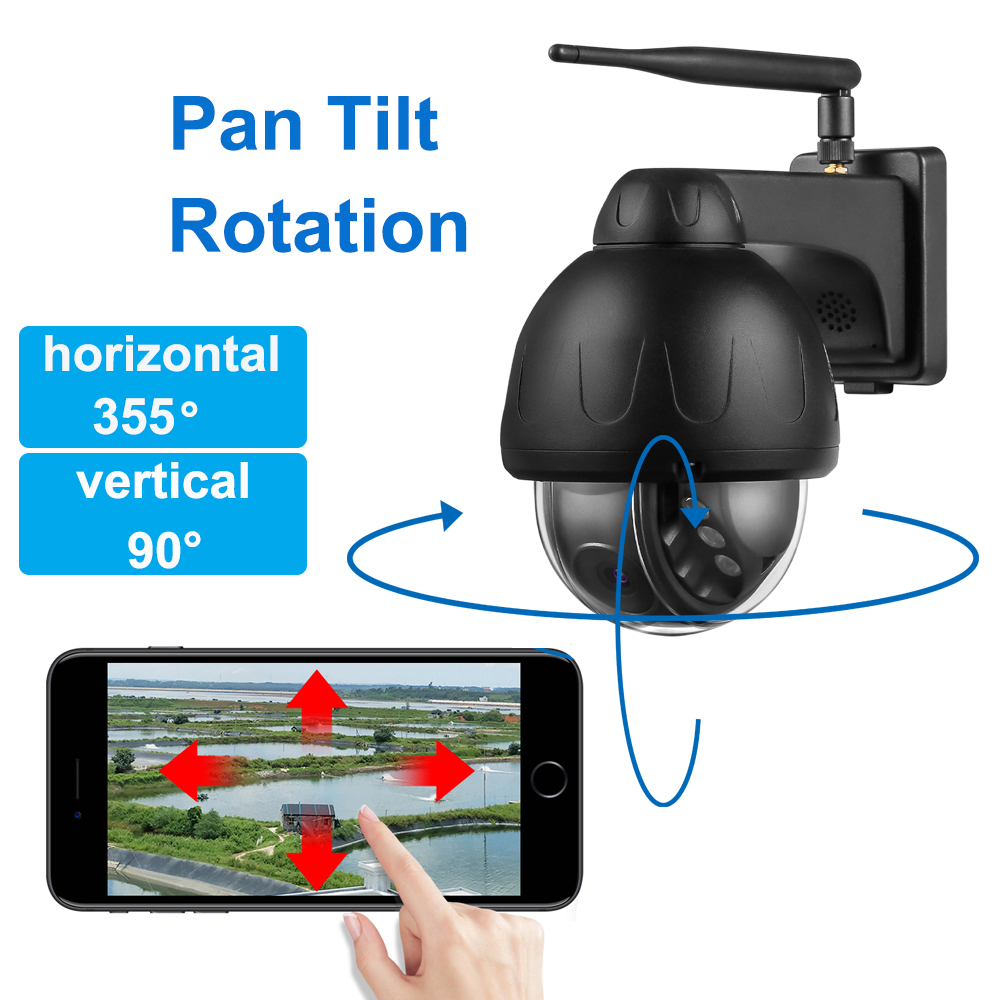

PT

Rotation angle

Horizon: 0°～355°, Vertical: 0°～90°

Horizontal speed

10°～ 30°/S

Vertical speed

8°～ 25°/S

Preset

Support 8 preset points

General specification

Power

DC12V 1A

Operating environment

Environment -30℃~+60℃
Humidity 10%～90%, non-condensing

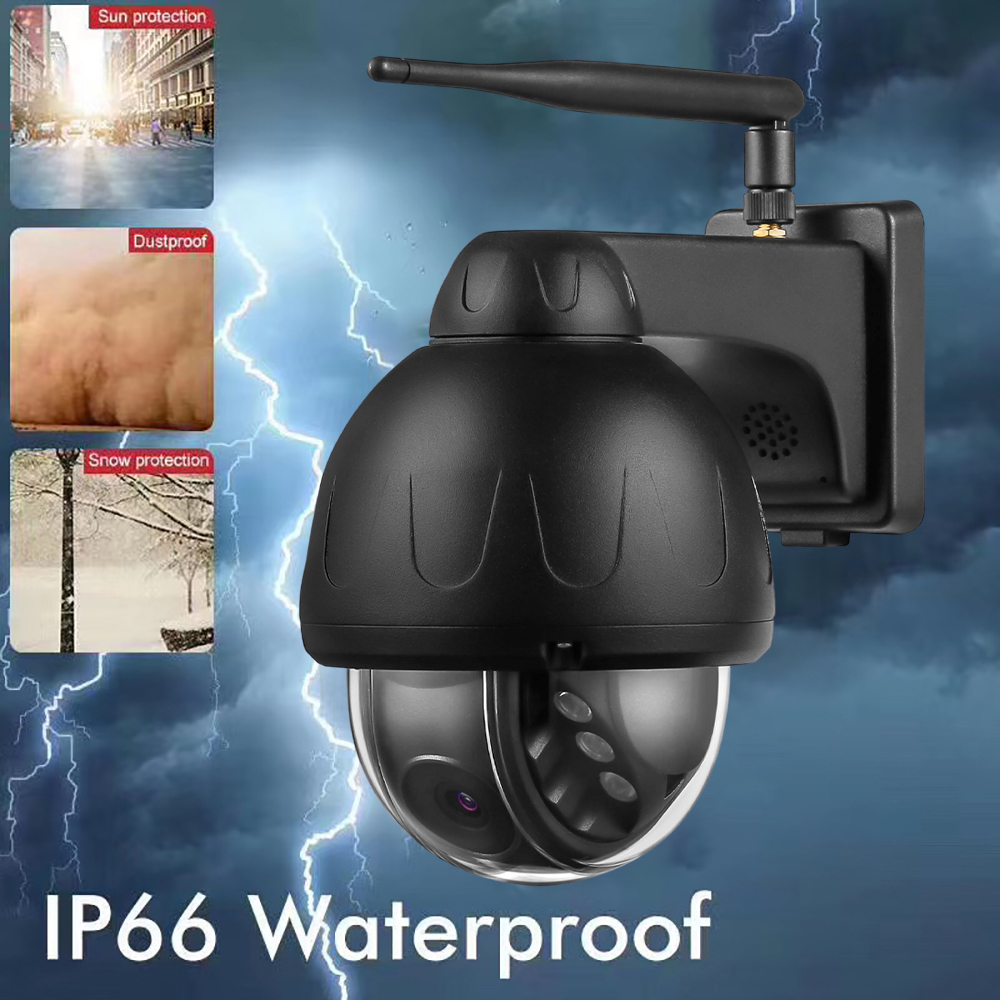

Waterproof level

IP66

Product size

230mm×125mm×215mm(L×W×H)

Product weight

1.0kg

Package size

260mmx230mmx170mm(L×W×H)

Package weight

1.5kg

Reset button

Support
