Mini 2MP HD IR Camcorder Battery Home Security IP Hidden Spy Desk Alarm Clock Camera Wifi
- Model：IPCM0293
|
Specification:
|
|
|
|
Chipset Infos
|
Chipset
|
INGENIC T21
|
|
CPU
|
Single Core 1.0GHz
|
|
|
RAM
|
16KB L1 I-Cache And 16KB L1 D-Cache.
64KB L2 Unified Cache. Capacity Of 512Mbit |
|
|
Video
|
Sensor Type
|
1/2.9 Inch CMOS Sensor(F23)
|
|
Pixel
|
2.0mp 1080P
|
|
|
Min. LUX
|
0.1Lux
|
|
|
Video Coding
|
H.264, MJPEG
|
|
|
Code Stream
|
Double Stream
|
|
|
Coding
|
Support CBR/VBR
|
|
|
clock
|
Time display
|
Support the LED display of month, day, hour, minute and second
|
|
Networked automatic timing
|
Support
|
|
|
Alarm clock function
|
Support (mobile app settings)
|
|
|
LED display switch
|
Support (mobile app settings ON/OFF)
|
|
|
Lens
|
Lens Type
|
Full Glass Lens
|
|
Lens
|
Focus: 2.4mm Pinhole lens, Aparture: 2.4
|
|
|
View Angle
|
126°
|
|
|
Night Vision
|
Infrared Light
|
8PCs Infrared Light, Wavelength 940nm, Range: 10m
|
|
IR-CUT
|
IR-CUT Double Filter
|
|
|
Photosensitive
|
Sensitivity 0.7Ω/Lux
|
|
|
Audio
|
Audio Coding
|
ADPCM
|
|
2 Way Audio
|
Support
|
|
|
Built-In Mic
|
Support
|
|
|
Extend-Mic
|
No
|
|
|
Built-In Speaker
|
Support(8Ω1W)
|
|
|
Extend Speaker
|
No
|
|
|
Connection
|
Network Protocol
|
P2P, ONVIF2.4, TCP/IP, HTTP,TCP, UDP, SMTP, DHCP, NTP, RTSP, RTMP, MQTT
|
|
Wired Connection
|
No
|
|
|
Wireless Network
|
WIFI（IEEE 802.11b/g/n）
|
|
|
Wireless Connection
|
WIFI Connection
|
|
|
Connection
|
Sound Wave Code
|
|
|
AP Hot Spot Connection
|
Support
|
|
|
P2P Connection
|
Support
|
|
|
Alarm
|
Motion Detection
|
Support, High Sensitivity/Medium/Low Three Adjustable
|
|
Sound Detection
|
Support, High Sensitivity/Medium/Low Three Adjustable
|
|
|
Alarm Mail Push
|
Support G-Mail, Yahoo, Sina, Sohu, 163, QQ Mail Alarm, Support FTP Upload Alarm Image, Turn On/Off The Function
|
|
|
Alarm Message Push
|
Support
|
|
|
Storage
|
Storage
|
Support 64G TF Card
|
|
Cloud Storage
|
No(Optional)
|
|
|
System Security
|
User Management
|
Administrators And Visitors
|
|
ID Anti-Theft
|
Support Adding License To ID, Illegal Piracy ID Is Invalid
|
|
|
Power
|
Power Supplier
|
DC5V/1A
|
|
Battery Capacity
|
1PCs 18650 Battery
|
|
|
Battery Working Time
|
1PCs 1800mA Battery Support the Camera Works 6 Hours
|
|
|
Certification
|
UN38.3, MSDS, Cargo Air/Sea Transport Condition Test Report
|
|
|
Weight And Size
|

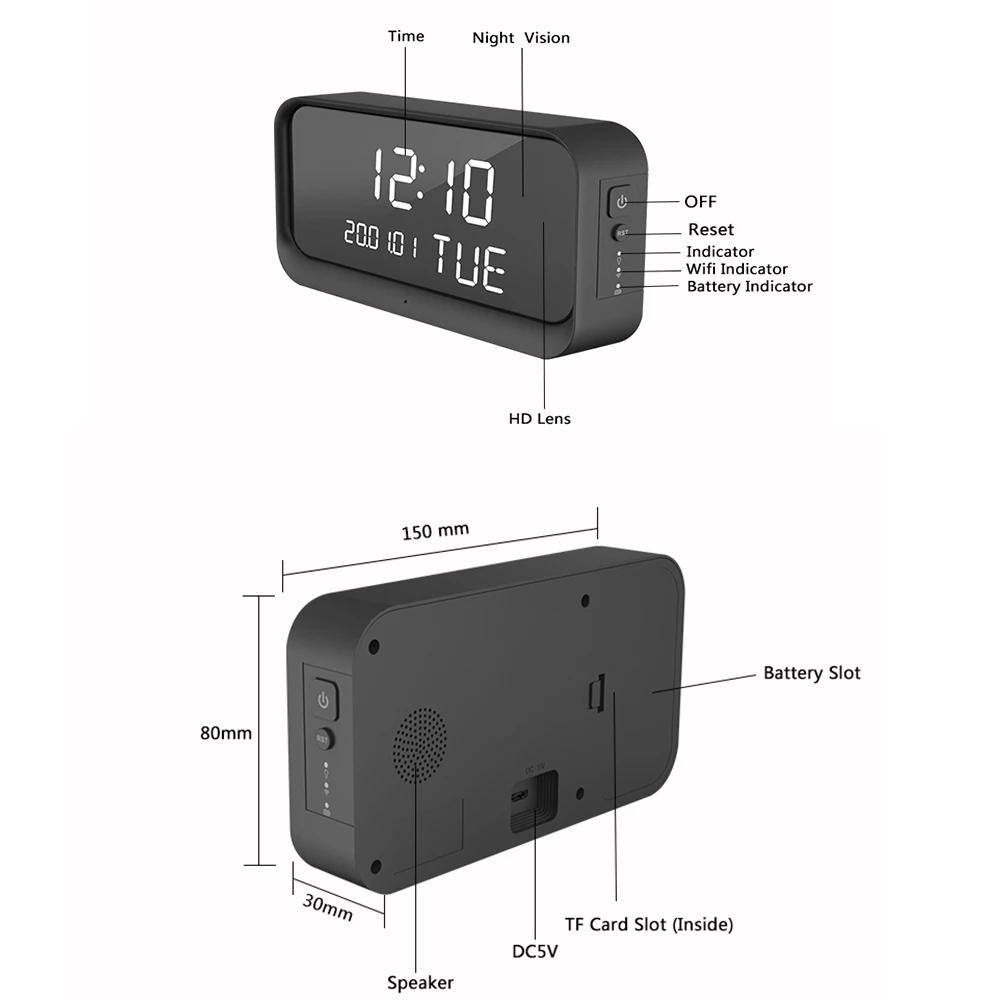

Product Size(mm)
|
148(L) x 80(W) x 28(H)
|
|
Color Box Size(mm)
|
160 x 145 x 50mm
|
|
|
Net Weight(g)
|
175g
|
|
|
Full Package Weight(g)
|
360g
|
|
|
Box(PCS)
|
40PCs
|
|
|
Weight(Kg)
|
15Kg
|
|
|
Dimension(mm)
|
490*335*310mm
|
|
|
Physical
|
Working Humidity
|
20%~85%(Non-Condensing)
|
|
Working Temperature
|
–10°C~60°C
|
|
|
Storage Humidity
|
0%~90%(Non-Condensing)
|
|
|
APP
|
Support Mobile Phone
|
IPhone And Android Smart Phone
|
|
APP Language
|
Chinese, Italian, German, French, Dutch, Portuguese, Japanese, Spanish, Russian, English, Vietnamese
|
|
|
APP
|
MrCam
|
|
|
Certification
|
CE, FCC
|
|
|
Pack List
|
Color Box
|
|
|
Power Supplier + USB Cable
|
||
|
Reset Needle
|
||
|
User Manual
|
||
|
Card Of Installing Video
|
||
