1.Main Features:
*Dual screen preview/PIP preview;
*Total physical pixels up to 800W dual lens

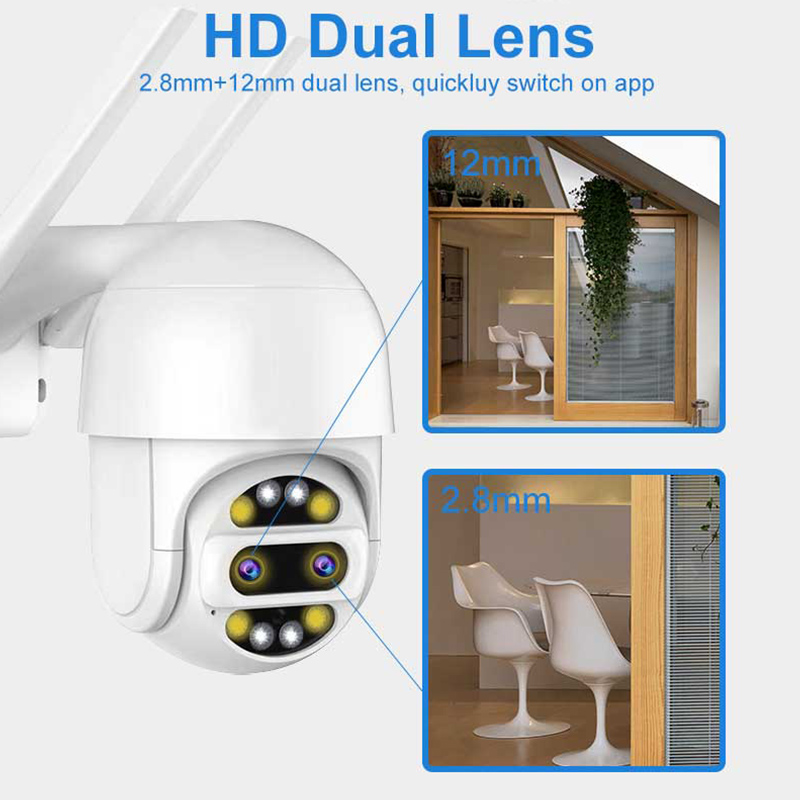

*Telephoto imaging module + short-focus imaging module, 2.8MM-12MM ;
* Support infrared/full color/alert full color;
* Support automatic cruise, detailed scanning;

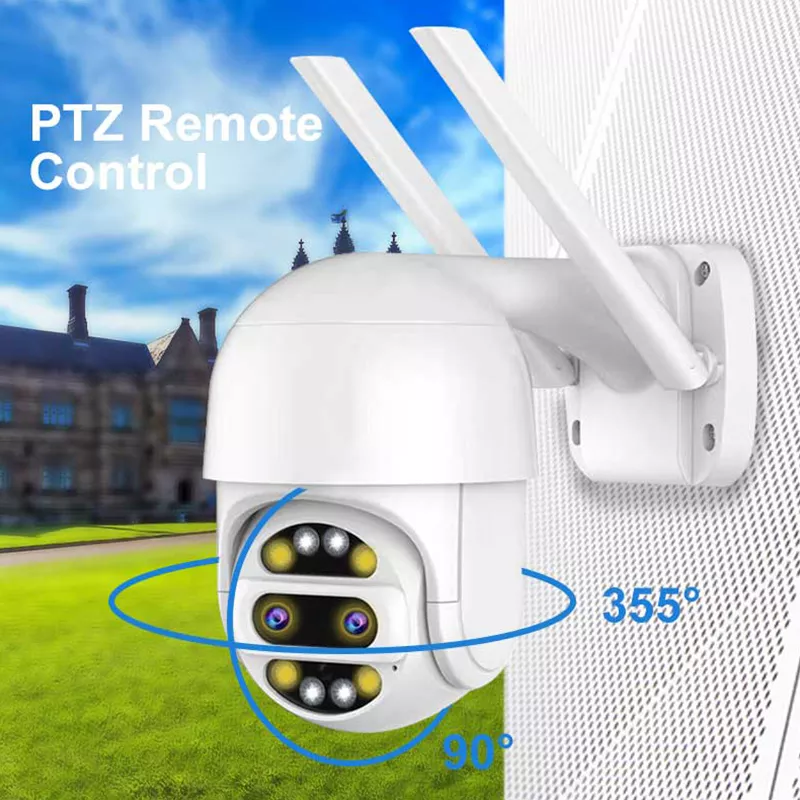

* The head rotates, the horizontal rotation angle is 352°, and the vertical rotation angle is 90°;
*IP66 dustproof and waterproof, to meet various indoor and outdoor application scenarios;
*Built-in speaker, microphone, support two-way voice intercom;
*Dual screen preview/PIP preview;
*Total physical pixels up to 800W dual lens
*Telephoto imaging module + short-focus imaging module, 2.8MM-12MM ;
* Support infrared/full color/alert full color;
* Support automatic cruise, detailed scanning;
* The head rotates, the horizontal rotation angle is 352°, and the vertical rotation angle is 90°;
*IP66 dustproof and waterproof, to meet various indoor and outdoor application scenarios;
*Built-in speaker, microphone, support two-way voice intercom;
|
Specification:
|
|
|
System Structure
|
Dual-core 32-bit DSP (NT98566), pure hard compression,watchdog
|
|
Sensor
|
4MP*2=8MP
|
|
Minimum illumination
|
Color: 0.01 Lux @ (F1.2, AGC ON); 0 Lux with IR; Black and white: 0.001 Lux @ (F1.2, AGC ON), 0 Lux with IR
|
|
Video Processing
|
H.265AI encoding, dual stream, AVI format; stream 0.1M~10Mpbs adjustable; frame rate 1~30 frames/sec adjustable
|
|
Image Output
|
Main stream: 2560*1440@12fps; Sub-stream: 800*448@12fps
|
|
Shutter
|
1/50 (1/60) second to 1/10000 second
|
|
Lens
|
2.8MM+12MM Combination of long focal length len + short focal length len
|
|
Day&Night Switching Mode
|
Support IR-CUT
|
|
Noise Reduction
|
Support 2D/3D noise reduction
|
|
Wide Dynamic
|
Support wide dynamic
|
|
Auto Iris
|
none
|
|
Audio Processing
|
G.711A codec standard, support two-way voice intercom function, support audio and video synchronization
|
|
Audio Port
|
1 input, level 2Vp-p, impedance 1kΩ,; 1 output, impedance 16Ω, 30mw output power
|
|
Network Interface
|
1 RJ45 Ethernet interface, 10/100M adaptive
|
|
Signal Interface
|
1 photoresistor interface, 1 IR-CUT driver interface, support the linkage of photoresistor input signal with IR-CUT, infrared
light |
|
PTZ Interface
|
1 horizontal motor interface, 1 vertical motor interface
|
|
Reset Key Interface
|
Support one-key reset function
|
|
Storage Method
|
Local TF card, maximum 128G; cloud storage
|
|
|
Comprehensive lightning protection, in line with national and international standards; 7*24 hours 65 ℃
|
|
Reliability
|
high temperature test is stable and reliable (including the whole machine test)
|
|
Intelligent Analysis
|
Support humanoid detection, support customization of other intelligent function
|
|
Business Functions
|
Support mobile client remote monitoring; support message push after humanoid detection and alarm; support MJPEG snapshot;
|
|
ONVIF
|
Support
|
|
Phone Monitoring
|
Support mobile phone monitoring (iOS, Android)
|
|
Power
|
DC12V
|
