| Specification parameter | |||
| system | Main Processor | Dual-core 32-bit DSP(XM530), pure hard compression, watchdog | |
| image sensor | 2 million 1/2.9" SC2235P high-performance CMOS sensor | ||
| Operation System | Embedded LINUX operating system | ||
| Video Compression | Smart H.265X | ||
| APP | ICsee (Android and IOS support) | ||
| Video | High Definition | 1080P | |
| Image resolution | 1920 * 1080 | ||
| Minimum illumination | 0.1 LUX/pro series | ||
| Lens | The 2.8 mm | ||
| Perspective | 92 ° | ||
| Turn video | Flip up and down/flip side to side | ||
| lighting | Light control mode | Automatic/light on/off/timer/Smart alert | |

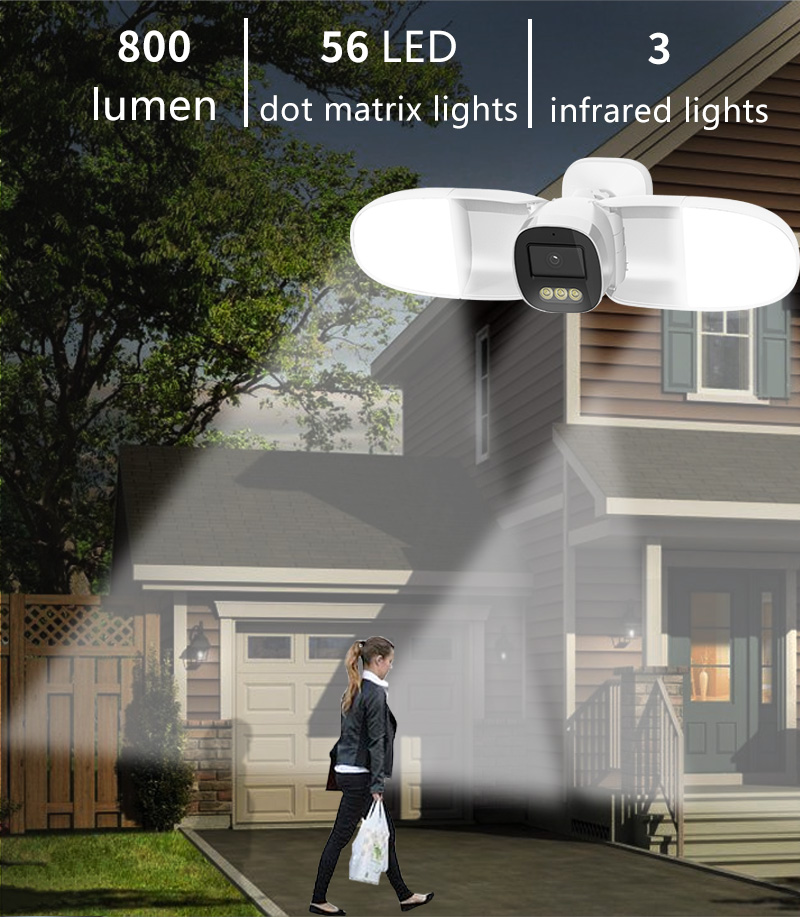

| Number of lights | 3 red lights +56 white lights | ||
| Temperature | 6000K | ||
| Lamp Flux | 400LM | ||
| PTZ | PTZ control | nonsupport | |
| Turn PTZ | nonsupport | ||
| Audio | Coding standard | G.711 | |
| Mitou | support | ||
| Two-way Speech | support | ||
| Record management | Video file size | ≈6G/ day | |
| Record Mode | Manual video recording, dynamic detection video recording, timing video recording, alarm video | ||
| Video storage | TF card/cloud | ||
| storage | Cloud Storage +TF Local Video recording (Max 256GB) | ||
| Remote playback | support | ||
| Image capture | support | ||
| Network | WIFI | 2.4G WIFI 802.11b/g/n | |
| Pairing | WiFi Smartlink distribution network addition, AP hotspot addition, QR code scanning. Bluetooth fast networking | ||
| Network Protocol | TCP/IP, ONVIF, RTSP | ||
| extension | Reset key | support | |
| Human tracking | nonsupport | ||
| 360degree coordinate positioning | nonsupport | ||
| power supply | Power supply | DC 12V | |
| power interfac | DC 5521 interfac | ||
| power | 10W | ||
| work environment | Suitable place | Homes, shops, supermarkets, factories and other places; | |
| Installation mode | hoisting/Wall mounted | ||
| Working Temperature | -20℃－＋55℃ | ||
| Working humidity | 10%－90% | ||
