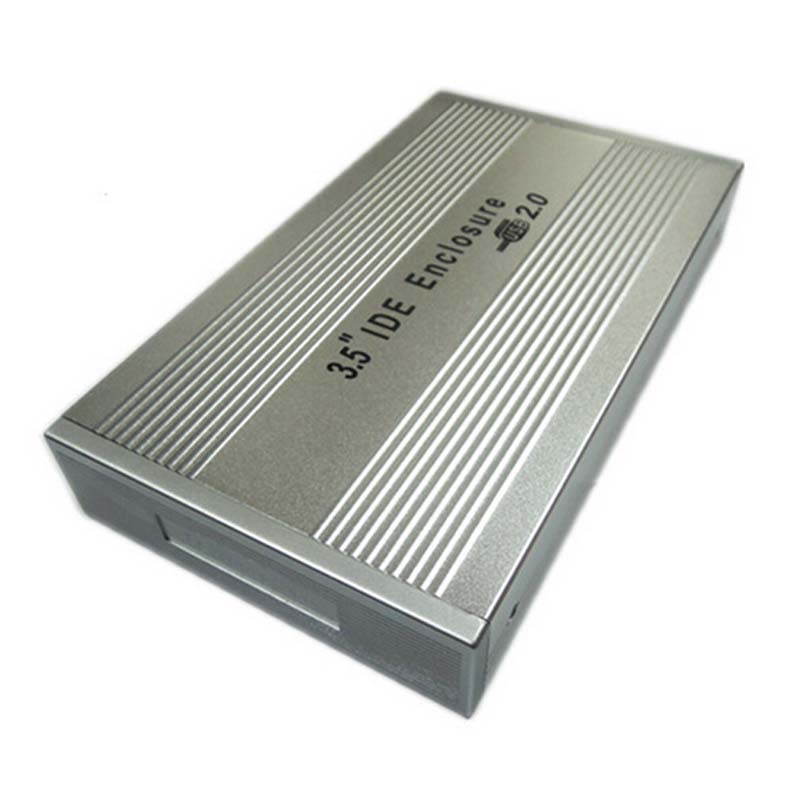

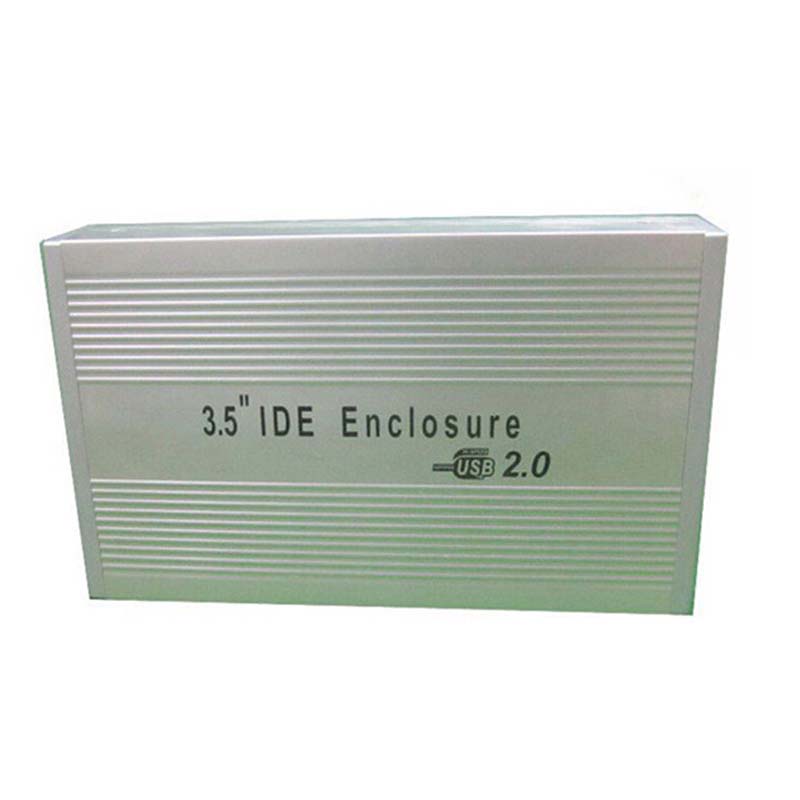

Name: 3.5 inch IDE HDD Enclosure Parallel
IC: M110
Material: Aluminum Surface sandblasted

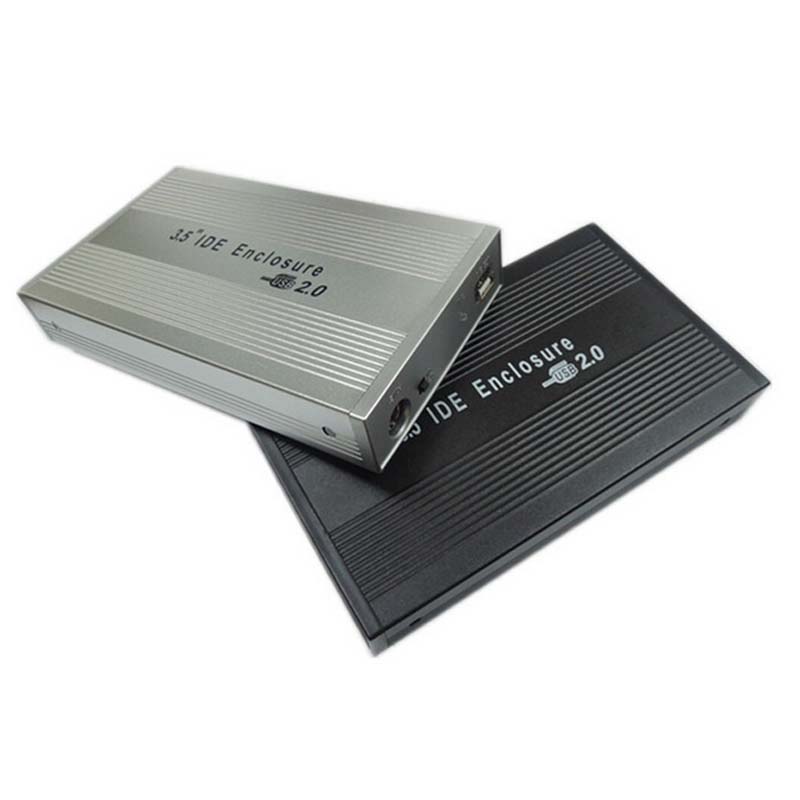

Color: Black Silver
Dimensions: 19x11x3cm
Supports 3.5-inch IDE hard disk
Interface: USB2.0
Transmission speed: 480Mbps
1TB capacity hard drive support
Operating System Support: windows98 / 2000 / XP / Vista / Win7 / Win8 / Mac or higher
Accessories: small shell power, American Standard power lines, data lines, screwdriver, screws

Product Features:
1, aluminum housing, sandblasted, superior texture.
2, USB2.0 transmission interface, backward compatible with USB1.1
3, No driver (except Windows98 system)
4. Cable: USB2.0 A to B cable
5, support for standard 3.5-inch IDE hard drive, via USB 2.0 interface connected to the host, with LED indicator.
6, safe and reliable: from the computer in time to protect critical data, and never lost, safe and reliable.
7. Access fast: the use of advanced "USB" (Universal Serial Bus) interface, transfer rate up to 480Mbps their data
8, the scope of desktop computers, notebook computers, Apple computers, data backup dump file archives recovery, printing and publishing applications, audio and video collections, and so on.
Chip: M110

Hardware Installation Note:
1) Use a screwdriver to light against the concave side of the disk cartridge position (near there Cabanatuan various interfaces), open the disk cartridge
2) Connect the IDE hard disk and power lines and data lines
3) Take the hard level to advance to the hard disk
4) Connect the external power supply, plug in the USB cable, open the hard disk cartridge switch.
5) or some new hard drives, you need to reformat (Note to first save the data to another storage device, to prevent loss).

Step format is: select the "My Computer" (right mouse button) ---- select "manage" ---- select "Disk Management", a list of disks, and then select the partition you want to format the hard disk, Format it
